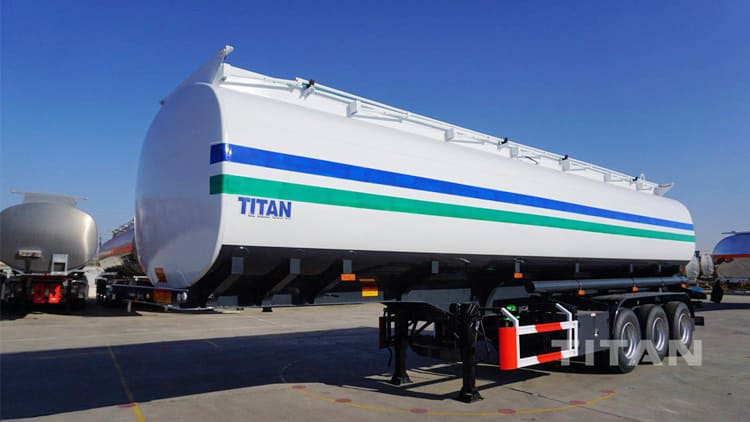

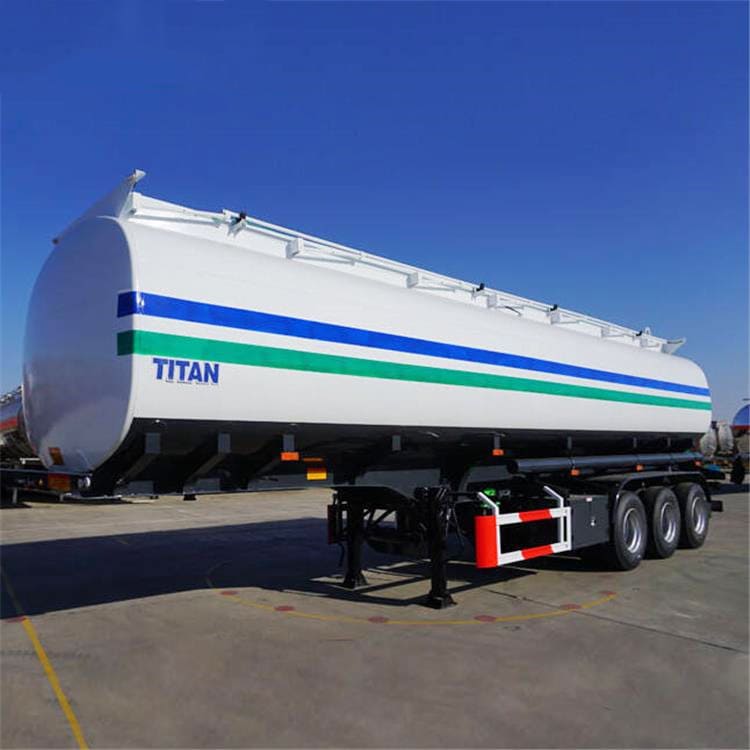

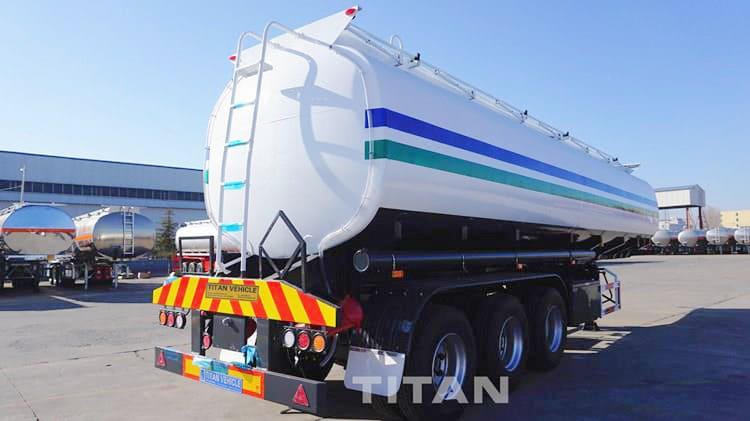

TITAN 3 axles 45000 liters fuel tanker trailer can transport 45000 liters fuel, oil, diesel, gasoline and other liquids. TITAN fuel tanker for sale in nigeria adopt famous brand axle.
Fuel tanker prices is generally used to transport gasoline, kerosene, diesel, vegetable oil, edible oil, heavy oil, coal tar, and non-petroleum products such as alcohol, aldehyde, benzene, ether, and other liquid substances. transporting liquid substances all over the world to realize the reasonable distribution and use of resources.
Fuel Tanker Trailer for Sale | Fuel Tanker Prices | Fuel Trailers and Tankers | Fuel Tanker for Sale in Nigeria
Fuel Tanker Trailer for Sale | Fuel Tanker Prices | Fuel Trailers and Tankers | Fuel Tanker for Sale in Nigeria
Fuel Tanker Trailer for Sale | Fuel Tanker Prices | Fuel Trailers and Tankers | Fuel Tanker for Sale in Nigeria
Dimension: 11500mm * 2500mm *3700mm (the exact size depends on the final design.)
Tare Weight (semi trailer): About 8000-12800kg
Total volume(m³): 25-60m³
Tank Body Material: 5mm or 6mm/Q235 carbon steel
End plate: 5mm or 6mm/Q235 carbon steel
Manhole Cover: Carton steel

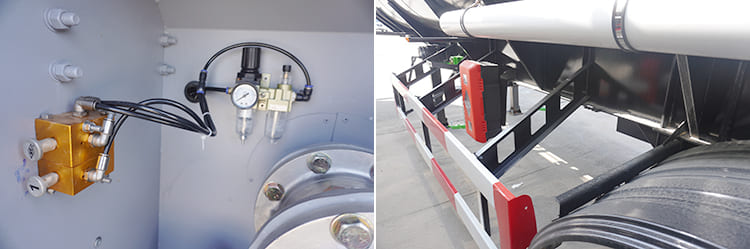

Bottom Valve: Aluminum API Pneumatic Bottom Valve
Compressor: BOHAI 10m³/12m³ or other brands
Discharging Valve: Diameter is 3 or 4 inch
Compartments: Optional
Discharging Pipe: 4 inch rubber hose,2pcs,6m/each
Cat Walk: With (common model or special design)
Main beams: Welded design or special design I beam, connected by bolts and nuts Q345 carbon steel material
Axle: 3 axles,12T/13T/16T,BPW/ FUWA/ TITAN brand
Landing Gear: JOST(D200T) or China brand 28T
Kingpin: JOST 2.0 or 3.5 inch bolt-in king pin
Fuel Tanker Trailer for Sale Suspension: Mechanical suspension /Germany or America type /Air Suspension
Fuel Tanker Trailer for Sale Leaf Spring: 90(w)mmx13(thickness)x10layers or 10mm x12mmx12 layers
Pneumatic Braking System: WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); 45L air tank
Rim: 9.00-22.5/8.00-20/8.5-20 Chinese brand
Tire: 12.00R22.5/315.80R22.5/11.00R20/12.00R20 brand can be optional
ABS: Optional
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layer of top coats.
Accessories: One standard tool box
Shipping Terms: By bulk cargo, RORO or 40HQ containers
1. With safety devices: the manhole is an explosion-proof large cover. The bottom outlet of the tank is equipped with an emergency shut-off valve.
2. The tank body is automatically welded by an advanced large-scale special welding machine.
3. The TITAN tanker body is longitudinally welded. Ensure the safety of the tanker and increase the service life.
4. Water filled test equipment Water tank: To ensure the high seal of the tank body and avoid leaks oil.
6. The wave board reduces the impact of the liquid on the tanker.
7. Advanced paint system and polyurethane paint. Appearance is beautiful, use time is above 5 years.
8. We adopt famous brand parts for our tank trailer, it saves costs & ensures long-time service.

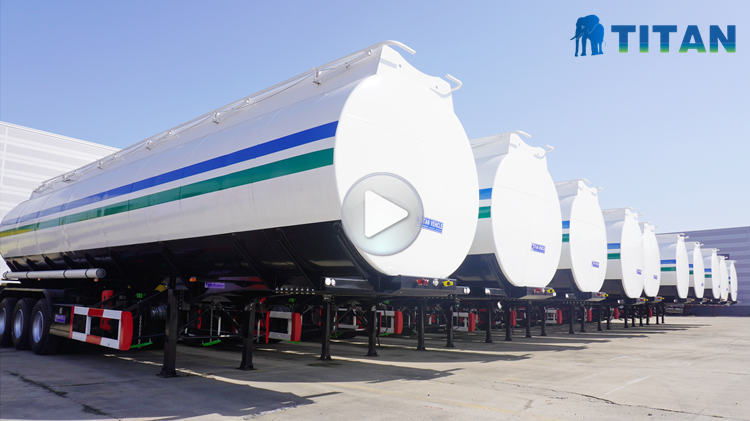

3 Axles 45000 Liters Fuel Tanker Trailer Display Video
Through this video, you can learn about different types of fuel tanker trailers, as well as the process, testing, packaging and customer feedback, etc.
