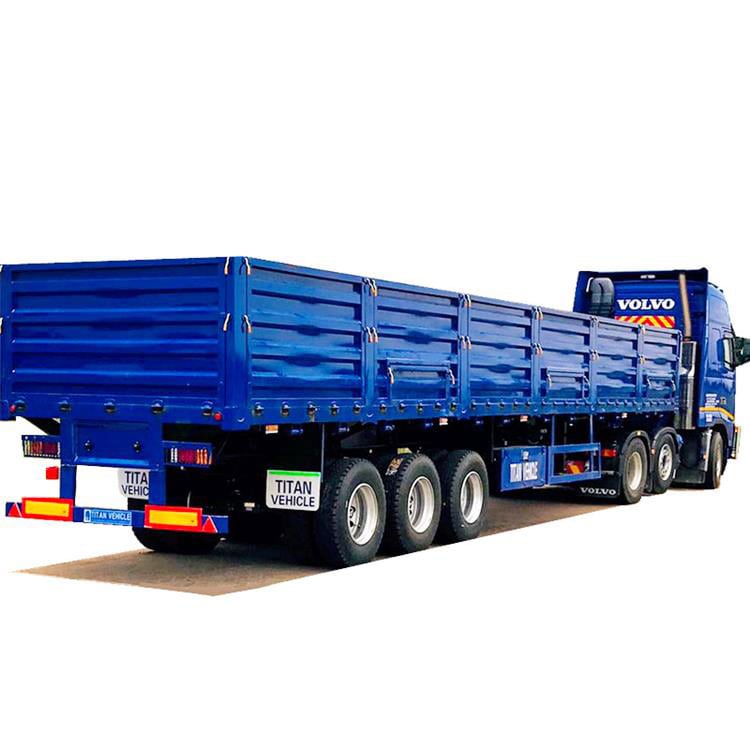

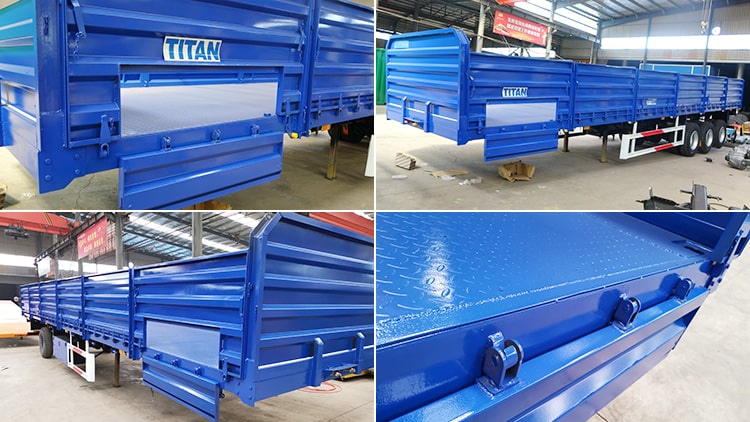

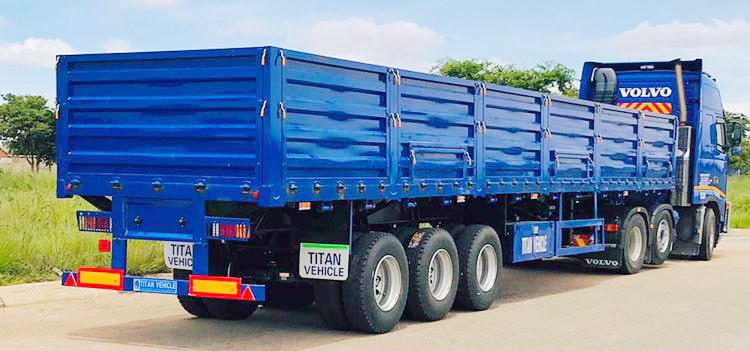

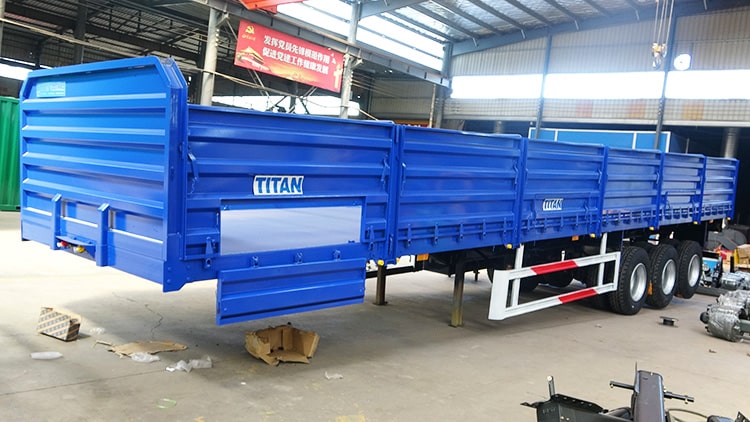

3 Axles 60 Ton Semi Grain Trailer

3 Axles 60 Ton Semi Grain Trailer Description:

3 Axles 60 ton semi grain trailer is a trailer pulled by a truck tractor and used to haul bulk commodity products, such as grain. The loading and unloading process is fast and convenient, it is easy to realize mechanized operation, the loading and unloading process requires less labor and low intensity, the loading function is diverse, and the loading and unloading process is reliable.

3 Axles 60 Ton Semi Grain Trailers for Sale in Tanzania Mtwara

3 Axles 60 Ton Semi Grain Trailers for Sale in Tanzania Mtwara

3 Axles 60 Ton Semi Grain Trailers for Sale in Tanzania Mtwara

3 Axles 60 Ton Semi Grain Trailer Specifications:

Tare Weight: About 7.6T

Dimension(mm): 13000x2500x3050mm

Trailer Sides: 1500mm

Loading capacity(ton): ≤60T

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Bottom Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

3 Axles 60 Ton Semi Grain Trailer Advantages:

1. TITAN Vehicle adopts high strength steel material to manufacture the side wall semi trailer, it can make the sidewall trailer have a higher loading capacity and a longer service life.

2. TITAN Vehicle uses automatic arc-submerging welding method to weld the main beam, so the main beam is more stronger and more durable.

3. Hight quality side wall, make sure the stable and safety of the loads.

4. Also the trailers floor is checker plate, this will keep the other bulk cargo more stable, like the bags, or long stuff.

5. To make sure the service life of the side wall semi trailers, all the spare parts we adopt are world famous brand.

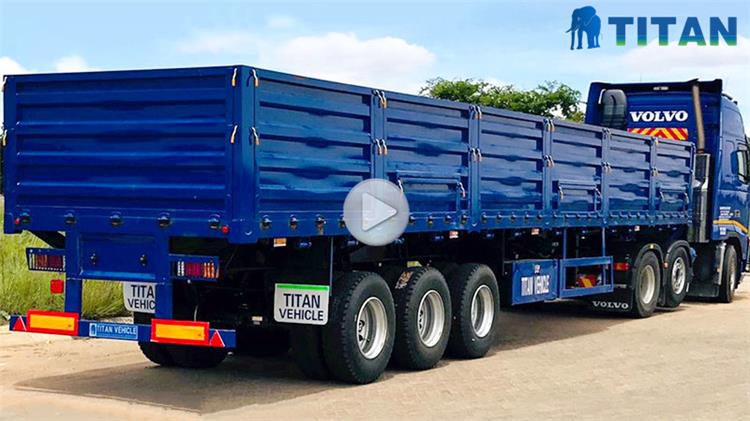

Video of 3 Axles 60 Ton Semi Grain Trailer:

Welcome to leave your inquiry!

We will provide quotation and more details, drawings, pictures, videos for you!
