3 Line 6 Axle 130 Ton Heavy Duty Excavator Low Bed Trailer

3 Line 6 Axle 130 Ton Heavy Duty Excavator Low Bed Trailer

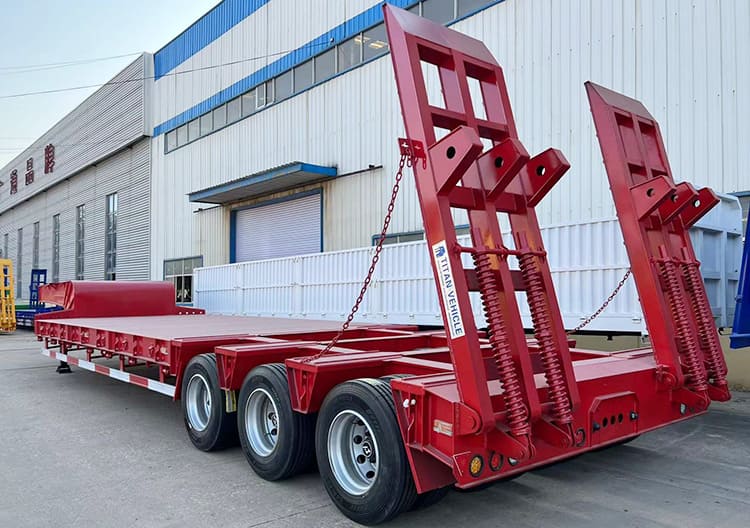

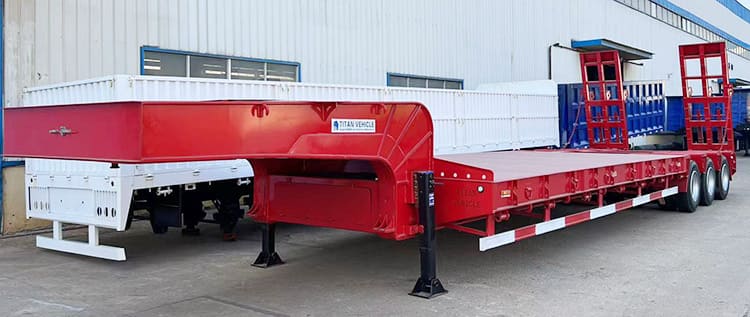

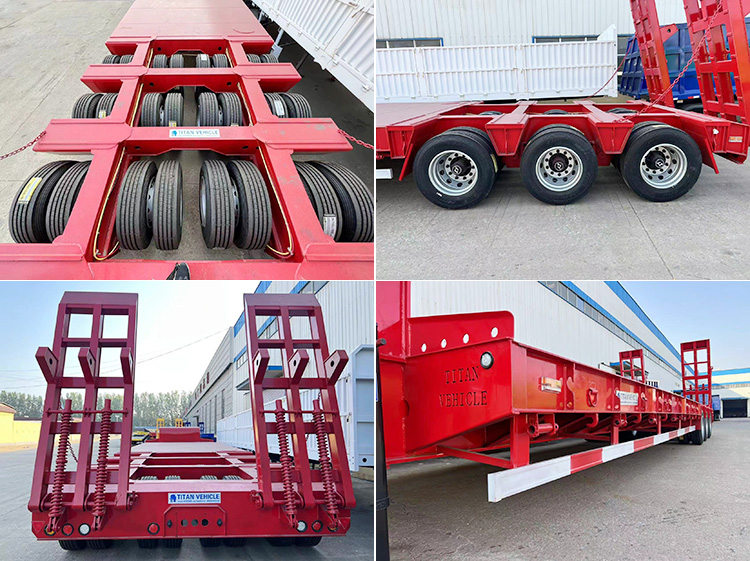

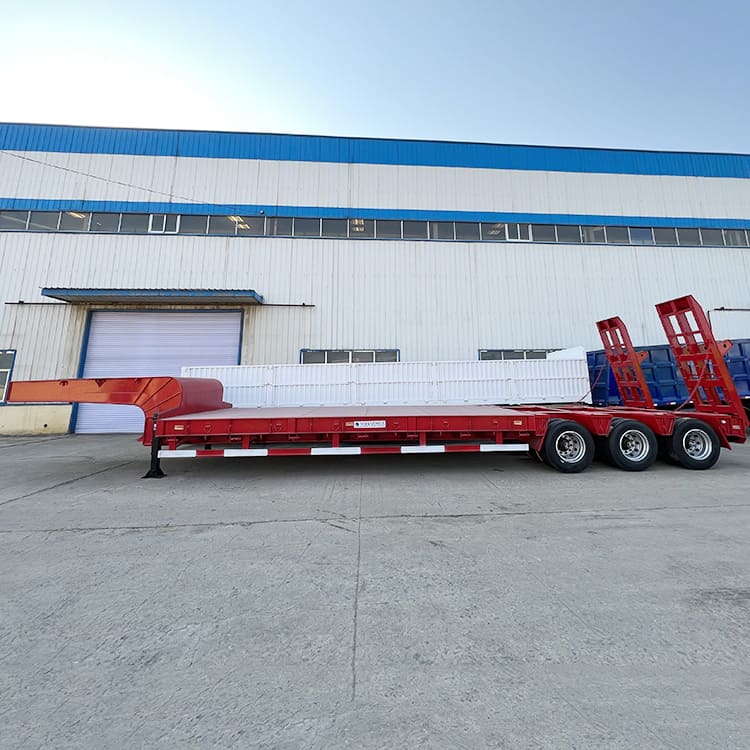

The 3 line 6 axle 130 ton heavy duty excavator low bed trailer Mainly engaged in the transportation of crawler/tire equipment such as crawler cranes, excavators, crawler loaders, bulldozers, and railway equipment. Thanks to the 3 line 6 axle excavator low bed trailer  design, the trailer has high passability through bridge arcs and tunnels, lowering the center of gravity of the cargo.

The 3 line 6 axle 130 ton heavy duty excavator low bed trailer optimized surface length for better loads, lower center of gravity and greater safety.

3 Line 6 Axle 130 Ton Heavy Duty Excavator Low Bed Trailer Price

3 Line 6 Axle 130 Ton Heavy Duty Excavator Low Bed Trailer Price

3 Line 6 Axle 130 Ton Heavy Duty Excavator Low Bed Trailer Price

3 Line 6 Axle 130 Ton Heavy Duty Excavator Low Bed Trailer Price

Heavy Duty Excavator Low Bed Trailer Specification

Overall dimension: 13000mm * 3000mm *3400mm

Loading capacity(T): 130T

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20

Tire: 11.00R20

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.

Bottom Platform: 5mm thick checkered plate

Ramp: spring type

Gooseneck: Optional

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

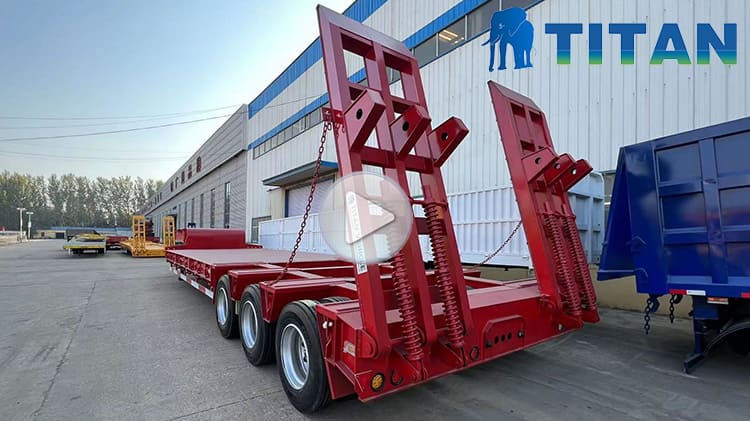

Video of the Heavy Duty Excavator Low Bed Trailer

Through this videos, you can learn about different types of lowbed semi-trailers, as well as the process, testing, packaging and customer feedback, etc.
