3 Line 6 Axle Detachable Gooseneck Trailer
TITAN detachable gooseneck trailer includes a series of standard features, such as heavy chain pallets, all LED lighting, JOST legs.
Our detachable gooseneck trailer includes a series of standard features, such as heavy chain pallets, all LED lighting, JOST legs, independent amber strobe kit, 11 pairs of D-rings, 2 inch nominal air-drying white oak floor, 3rd air lift axis (only 3-axis air slide device) and manual slide height multiplier (only air slide device).
Dimension: 17000mm x 3000mm x 2500mm
Loading capacity(T): 50-150T
Axle: 3 line 6 axle
Tire: 24 units, 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension or air suspension
Spring leaf: 120(W)mmx16(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Tare weight: About 9.5-19T
Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.
Bottom Platform: 5mm thick, checkered plate
Hydraulic cylinder: 12KW diesel engine with hydraulic station
Ramp: spring or hydraulic type
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Tool box: 1 set
Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust

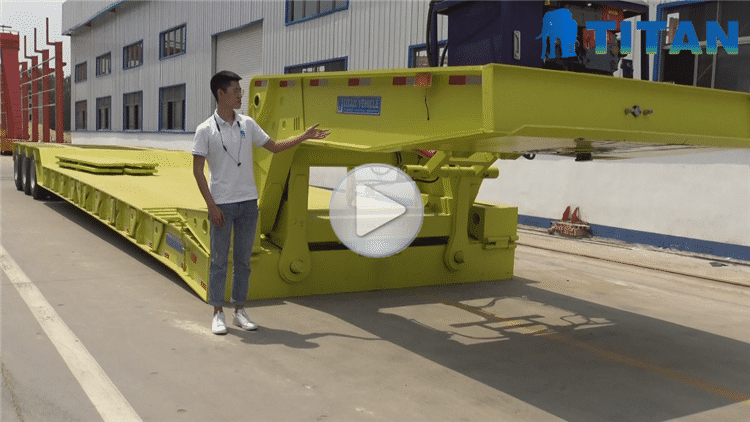

Through the video, you can know different types of 3 line 6 axle detachable gooseneck trailer , detachable gooseneck trailer for sale , detachable gooseneck lowboy trailer for sale, etc.
Please click "TITAN Removable Gooseneck Trailer" to get detailed video!
Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
