Wind Blade Adapter Trailer

Wind Blade Adapter Trailer：

The TITAN wind blade adapter trailer is mainly used to transport wind turbine blades to the top of the mountain. The special design of this car is that the adapter of the wind blade is installed on the trailer of the 3-wire six-axle, which can bear the weight of the blade to the maximum extent, and at the same time effectively avoid obstacles such as buildings and trees.

The windmill blade transport adaptor can be adapted to wind turbine blades with a length of 59.5-76 meters. It rotates 360 degrees during driving to avoid various obstacles (hillsides, trees, houses, bridges, tunnels, etc.) during transportation. Greatly reduces leaves. The full length of the wind blade adapter trailer body improves cornering performance. Wind blades up to 80 meters can be transported. The loadable windmill blade weight is 13-23.5 tons.

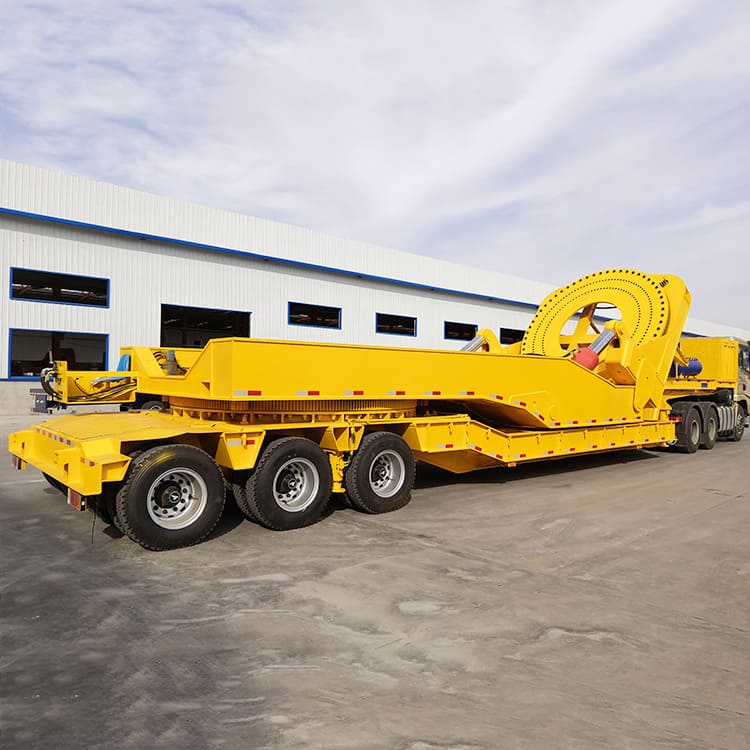

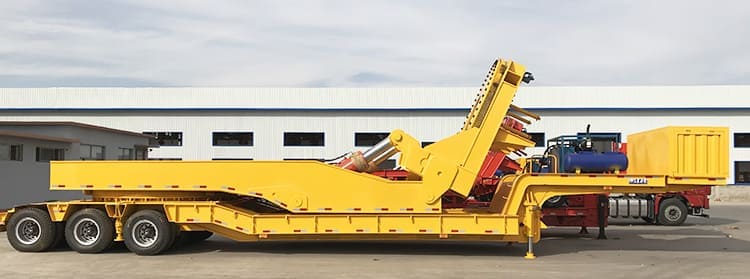

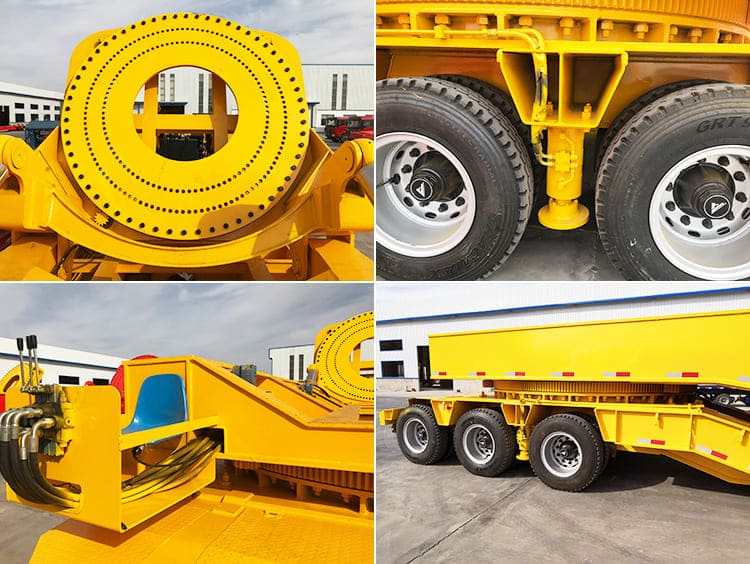

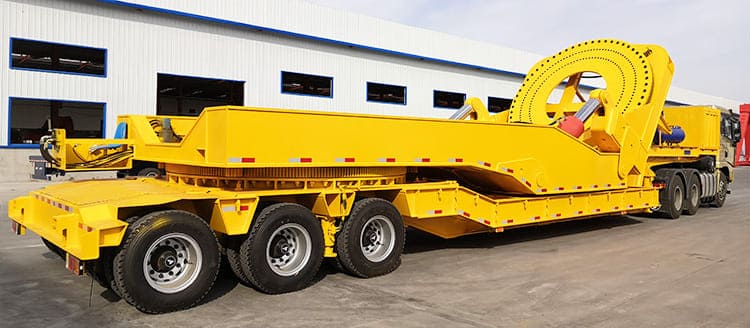

3 Line 6 Axle Wind Blade Adapter Trailer for Windmill Blade Transport Adaptor

3 Line 6 Axle Wind Blade Adapter Trailer for Windmill Blade Transport Adaptor

3 Line 6 Axle Wind Blade Adapter Trailer for Windmill Blade Transport Adaptor

Wind Blade Adapter Trailer Specification:

Brand: TITAN Adapter trailer for 80m wind turbine blade transportation

Dimension: 16250mm*3700mm*5000mm

Loading capacity: 23.5 Tons

Axle: 3 lines 6 axles

Max rotation angle: 360°

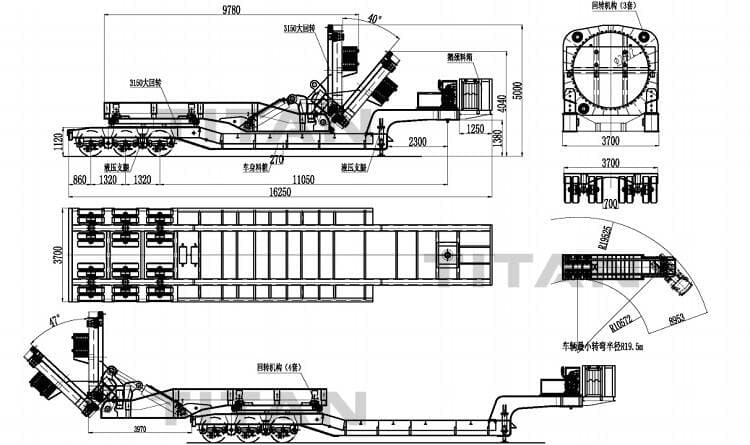

Drawing of 3 Line 6 Axle Wind Blade Adapter Trailer

Wind blade adapter trailer for windmill blade transport adaptor details display video

Please click "TITAN Wind Blade Trailer" to get detailed video!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
