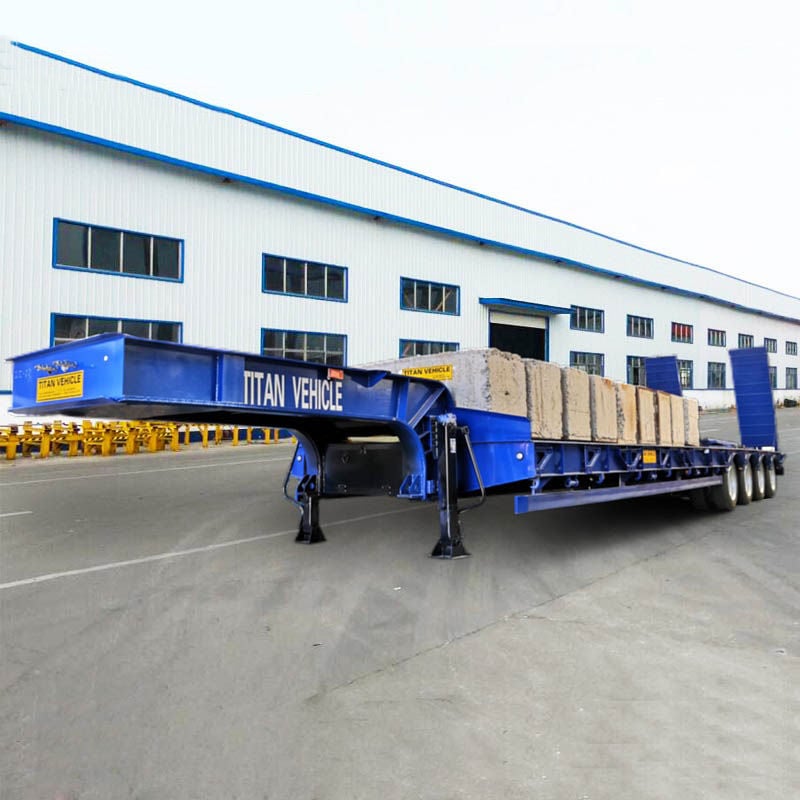

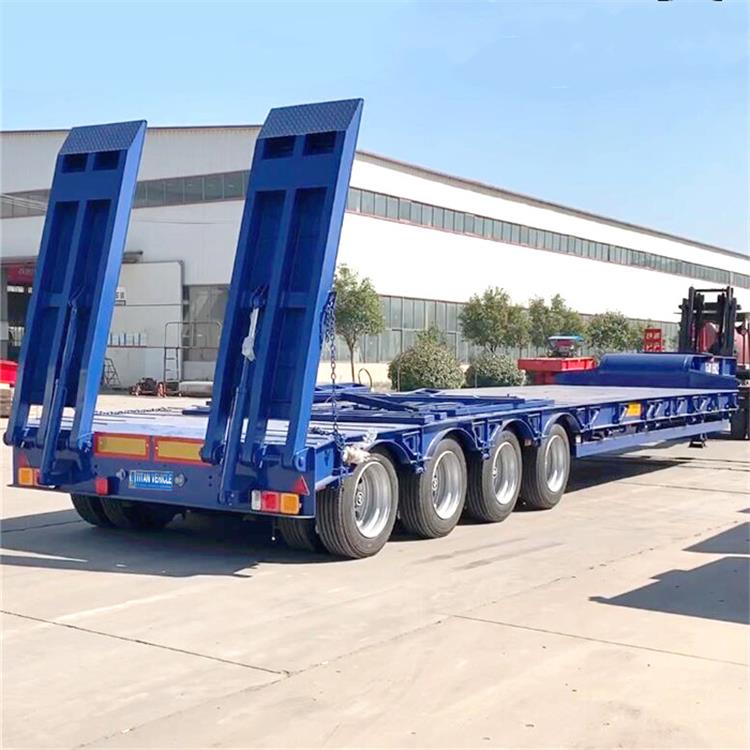

4 Axle 100 Ton Low Loader

Product description:

4 axle 100 ton low loader trailer use high strength steel material to ensure the capacity, the load can be up to 100 to 120 ton payload.

We adopt famous brand parts, like WABCO braking valve, JOST legs, FUWA, BPW axles. This’ll ensure the long service life of the trailers.

4 Axle 100 Ton Low Loader | Lowbed Semi Trailer for Sale - TITAN Vehicle

4 Axle 100 Ton Low Loader | Lowbed Semi Trailer for Sale - TITAN Vehicle

Specification：

Overall dimension: 15800mm * 3000mm *3400mm

Loading capacity(T): 100T

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20

Tire: 11.00R20

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.

Bottom Platform: 5mm thick checkered plate

Ramp: hydraulic type

Gooseneck: Optional

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Advantage:

1. Main beam adopts HG high strength steel, with high loading capacity.

2. Side beam adopt “H” steel, the durable design avoid the side beam to have the deformation.

3. The loading ramps is made by high strength steel, with high loading capacity, will not happen to the deformation when carry heavy equipment.

4. polyurethane paint, with long service lift, and avoid the vehicle get rust.

5. World famous brand spare part, ensure high quality and save costs.

4 Axle 100 Ton Lowbed Semi Trailer details display video

Through this video below, you can learn about different types of lowbed semi-trailers, as well as the process, testing, packaging and customer feedback, etc.

Please click "TITAN Lowbed Trailer" to get detailed video!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
