100T Heavy Load Lowbed Trailer

Product description:

The main beam of TITAN 4 axle lowbed trailer is made of Q460C high strength structural steel. Q460C steel has a yield strength of ≥620Mpa, which is more durable and stronger than ordinary steel. Its bearing capacity is 5 times that of the trailer made of Q345 steel.

TITAN lowbed trailer main baem adopts a height of 500mm and a thickness of 14mm. The thickness of upper plate is 22mm, the thickness of lower plate is 22mm and the width of upper and lower plate is 220mm.

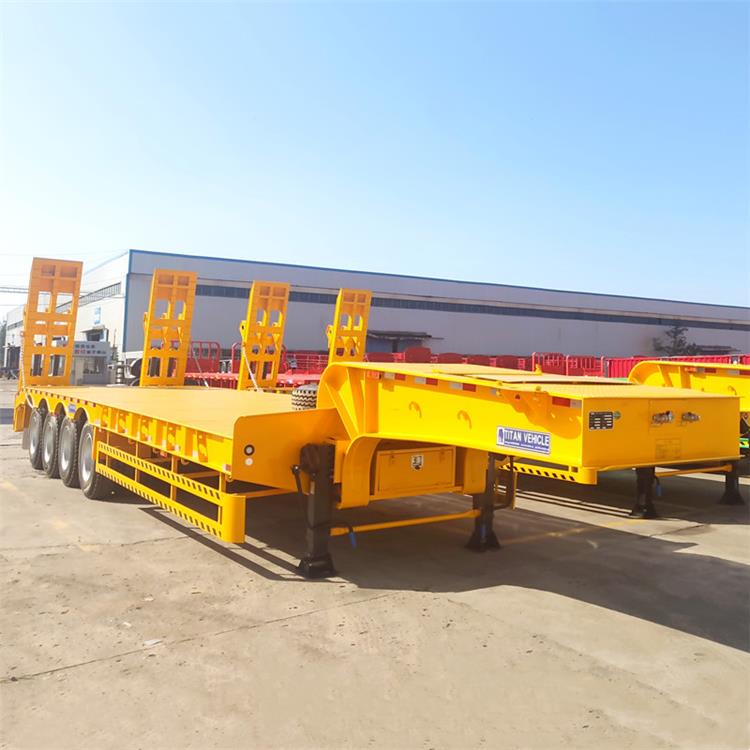

4 Axle 100T Heavy Load Lowbed Trailer for Sale in Angola

4 Axle 100T Heavy Load Lowbed Trailer for Sale in Angola

Specification：

Overall dimension: 16000mm * 3000mm *3400mm

Loading capacity(T): 100T

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20

Tire: 11.00R20

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.

Bottom Platform: 5mm thick checkered plate

Ramp: hydraulic type

Gooseneck: Optional

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Advantage:

1. Main beam adopts HG high strength steel, with high loading capacity.

2. Side beam adopt “H” steel, a durable design avoid the side beam to have the deformation.

3. The loading ramps of 4 axle lowbed trailer is made by high strength steel, with high loading capacity, will not happen to the deformation when carry heavy equipment.

4. 100T heavy load trailer use polyurethane paint, with long service lift, and avoid the get rust.

5. World famous brand spare part, ensure high quality and save costs.

4 Axle 100 Ton Lowbed Semi Trailer details display video

Through this video below, you can learn about different types of lowbed semi-trailers, as well as the process, testing, packaging and customer feedback, etc.

Please click "TITAN Lowbed Trailer" to get detailed video!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
