4 Axle 30T Interlink Trailer
4 Axle 30T Interlink Trailer

4 Axle 30T Interlink Trailer

20000 USD

Different Parameters, Different Price. Price Reference Only.



For the interlink trailer is populaized because of its flexibility. Each of the trailers can operate independently and increase the utilization coefficient of the tractor truck.

SKU: 4 Axle 30T Interlink Trailer
GTIN: 06975766111984
MPN: TITAN9413008
Brand: TITAN

Product Description:

TITAN superlink trailers for sale are noted for their highly robust structure steel, we can provide difference configurations of our superlink trailer to meet your transportation requirement. Detailed in here is extensive information about what makes this type of trailer and where it is used.

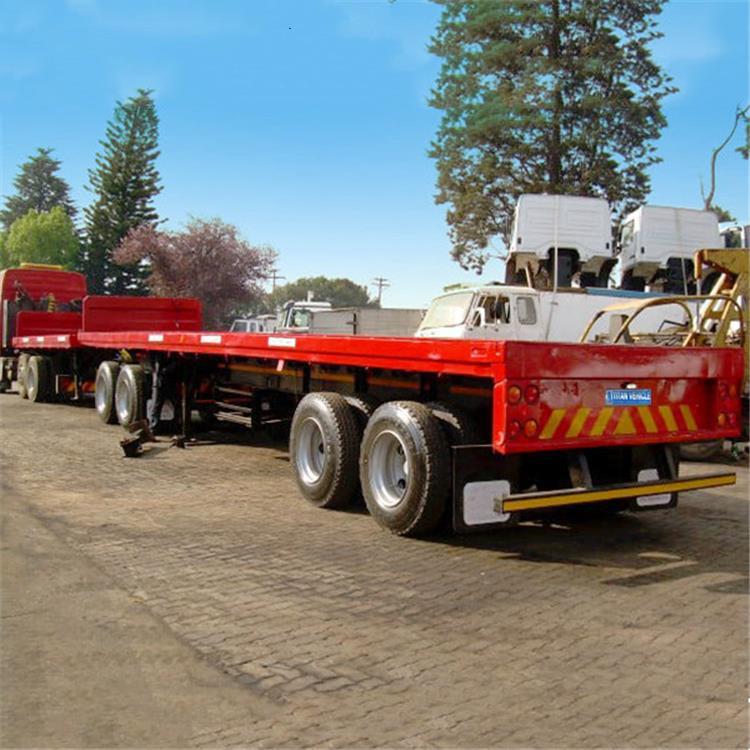

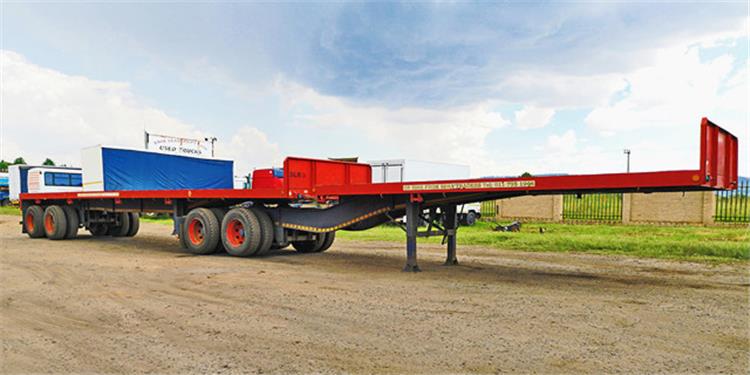

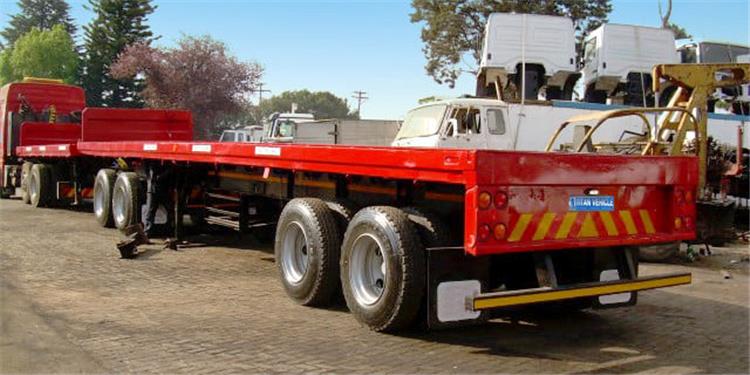

4 Axle 30T Interlink Trailer for Sale - TITAN Vehicle

4 Axle 30T Interlink Trailer for Sale - TITAN Vehicle

4 Axle 30T Interlink Trailer for Sale - TITAN Vehicle



Specification:

Model: 4 Axle 30T Interlink Trailer for Sale

The front trailer size: 9800*2500*1500mm

The rear trailer size: 12500 mm*2500*1500mm

Loading capacity(ton): ≤60T

Axles: 4 axles, 13T/16T ,FUWA/ BPW/ Huajing Brand

Tire: 16 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension(Germany or America type) or Air suspension(China brand or BPW brand)

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats



Through this videos, you can learn about different types of flatbed semi-trailers, as well as the process, testing, packaging and customer feedback, etc.





Please click "TITAN Flatbed Trailer" to get detailed video!



Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
