4 Axle Container Chassis Trailer

4 Axle Container Chassis Trailer Product Description:

Container chassis trailer is the more commonly used type of semi-trailer. When the container is in the transportation process, it only needs to be reloaded instead of inverted, which simplifies the loading, unloading and handling operations to a great extent, and facilitates the realization of mechanized loading, unloading and loading and unloading. It usually takes only a few minutes to replace a container, which reduces the waiting time for loading and unloading, improves labor productivity, speeds up the turnover of goods and transportation, and reduces cargo damage and cargo balance.

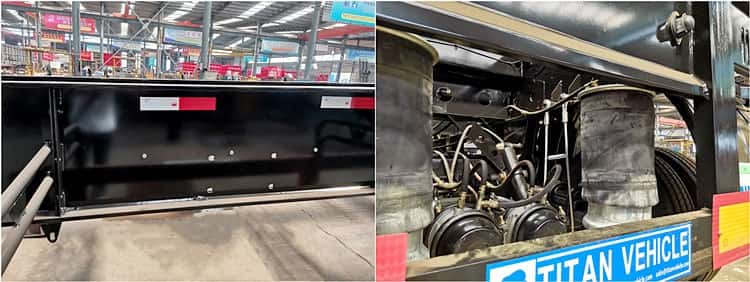

4 Axle Container Chassis Trailer for Sale

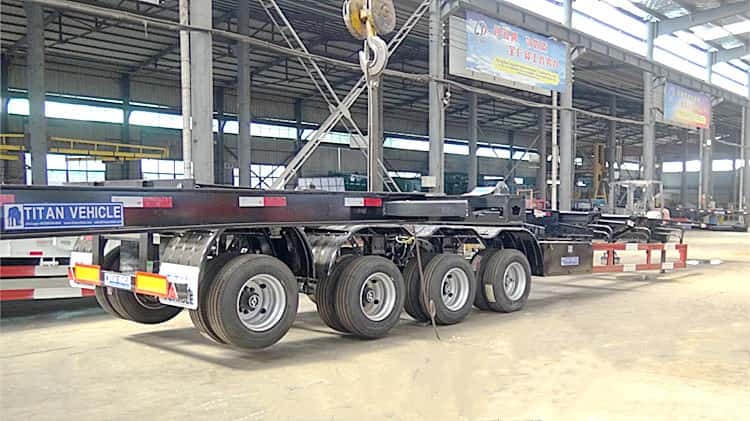

4 Axle Air Suspension Container Chassis Trailer

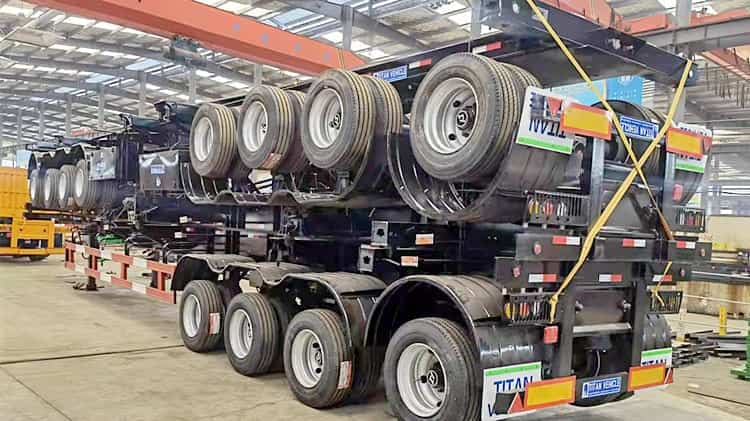

Used Container Chassis for Sale

Specifications:

Dimension(mm): 14000*2500*1550mm

Loading capacity(ton): ≤60T

Axles: 4 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand

Tire: 16 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Air suspension

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Shipping Terms: Transported by the bulk carrier in an RORO or 40ft container

Through the video, you can know different types of skeleton trailers, as well as the process, testing, packaging and customer feedback, etc.

Please click " TITAN Container Skeleton Trailer" to get detailed video!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
