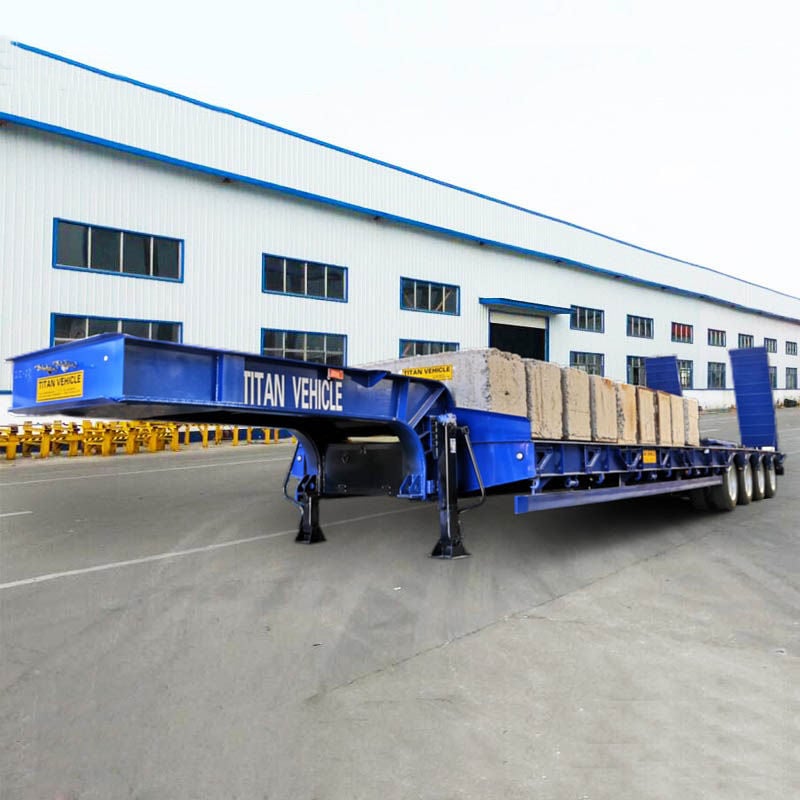

4 Axle Low Loader

Product description:

4 Axle Low Loader is widely used in crawler cranes, excavators, and other heavy machinery transportation. The 4 Axle Low Loader bottom plate is 5mm checkered plate, The low loader bottom plate is strong and durable, and is not easy to deform.

The girder and gooseneck are reinforced by the bottom vertical plate, and the gooseneck is double-layer girder vertical plate The deformation range of the vehicle is very small when it is under heavy load, so it is better to use.

Specification：

Overall dimension: 15800mm * 3000mm *3400mm

Loading capacity(T): 100T

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20

Tire: 11.00R20

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.

Bottom Platform: 5mm thick checkered plate

Ramp: hydraulic type

Gooseneck: Optional

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)
