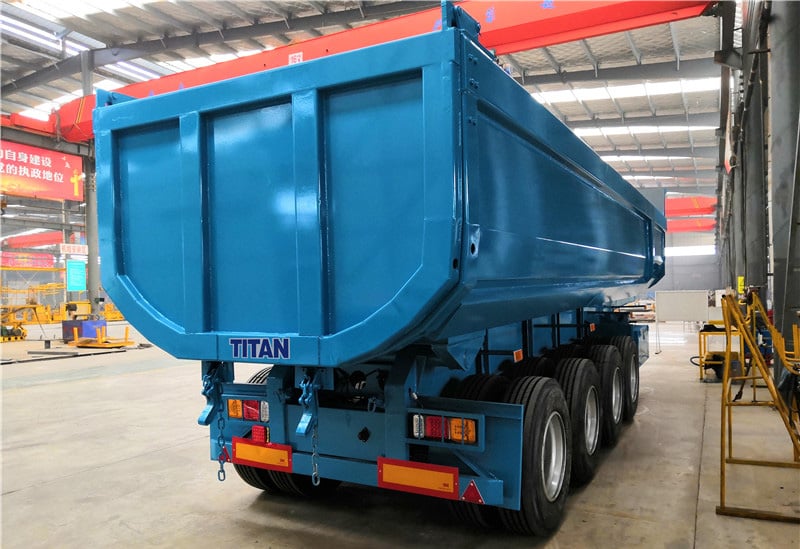

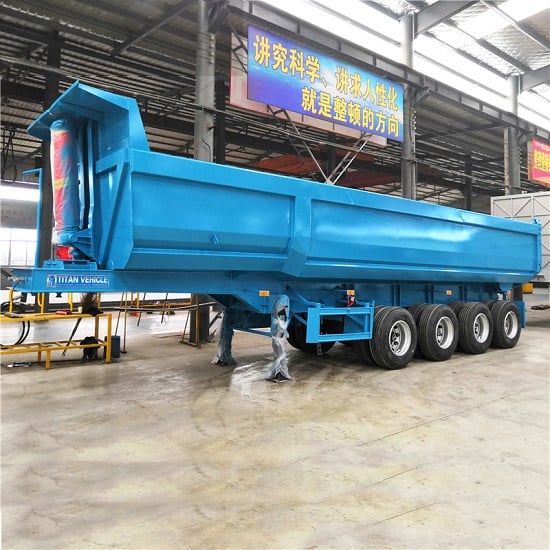

4 Axle End Dump Trailer

Product Description：

TITAN 4 axle end dump tipper trailers adopt high strength steel to make it durable when load the sand or small stones or rocks. And the loading capacity is 40t, 60t, 80t.

TITAN 4 axle end dump tipper trailers equipped with reliable hydraulic HYVA cylinder. We can customize the tipper trailers according to your special needs, like U shape dump, end dump, side tipper, and container tippers including skeleton and flatbeds trailers.

4 Axle Rear End Dump Trailer for Sale

60 Ton 80 Ton Semi Tipper Tipping Trailer

Semi Tipper Truck Tractor Trailer luyi luyi1@luyitruck.com 0086-17660150099

Advantage:

1. Double-plate main beam for heavy-duty dump trailer, which has a stronger carrying capacity, it is not easy to damage.

2. Hydraulic cylinder: The heavy-duty cylinder with a wider diameter, stronger lifting capacity and higher height, which makes the lifting more stable and does not easy to roll over.

3. with 4 units vice beam and cross balance beam. The lattice structure of the side door makes the side door more solid.

4. Flip Bracket: 4 units flip brackets, which can make the rear end more evenly loaded during unloading, and it is not easy to damage the trailer.

5. The leaf spring is widened and thickened, the shock absorption effect is good.

6. Strengthened Ribs, unique structure design to maximize the payload.

Specification：

Overall dimension：9300mm * 2500mm *3700mm

Volume :  33CBM

Axles：4 axles

Suspension: Heavy duty mechanical suspension

Tipping system: 196 hydraulic cylinder

Tire：16 units

King pin：90#

Landing gear: JOST

Brake system: WABCO

Electrical system: 24V, LED lights

Through these videos, you can learn about different types of semi tipper trailers, as well as the process, testing, packaging and customer feedback, etc.

Please click " TITAN Tipper Semi Trailer" to get detailed videos!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
