Different Parameters, Different Price. Price Reference Only.

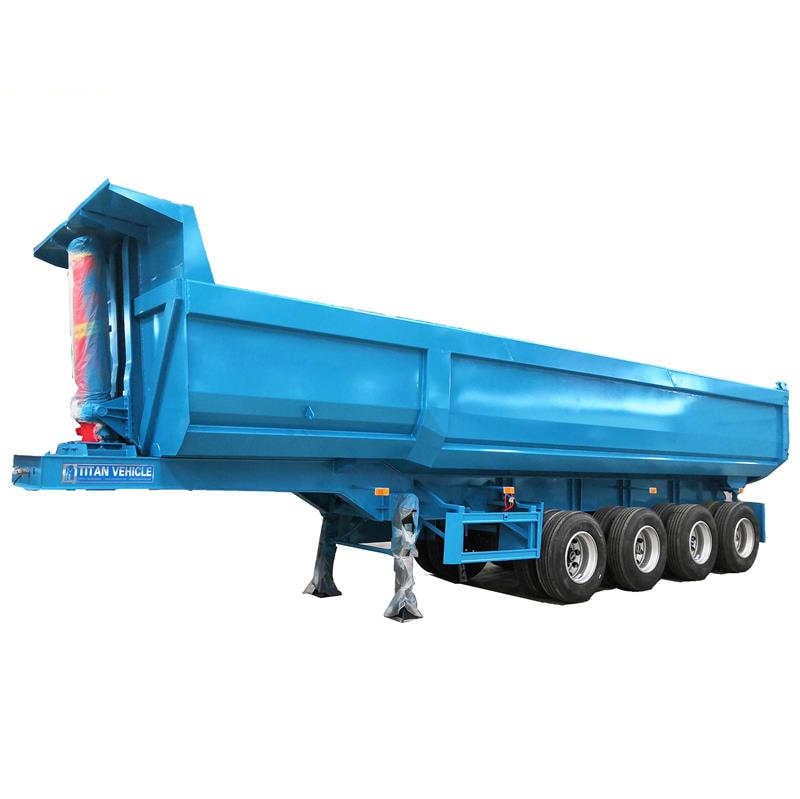

Hydraulic 4 Axle Tipping Trailer Price in Tanzania Dares salaam is lower than others, custom tipping trailer, Hydraulic 4 Axle Tipping Trailer according to your special need.
The Hydraulic 4 Axle Tipping Trailer could bear the bad road conditions. We reinforce the sides with high tensile strengthening rip and the channel steel reinforced enclosure shape design.
The sides are welding molding which increasing the loading capacity. The Hydraulic 4 Axle Tipping Trailer could be used for nearly 10 years. TITAN Hydraulic 4 Axle Tipping Trailer has different load capacities: 24 cubics, 30 cubics, 35 cubics, 45 cubics, We can customize the tipper trailers according to your special need.
Hydraulic 4 Axle Tipping Trailer Price
Hydraulic 4 Axle Tipping Trailer Price in Tanzania Dares salaam
Dimension: 9300mmx2500mm x3700mm ( inside dimension )
Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.
Bottom Platform: 4 thick checkered plate
Side wall thickness: 4mm
Total volume(m³): 30m³
End plate: 8mm
Lifting System: Full set of HYVA lifting cylinder
Axle: 13T/16T, FUWA / BPW / TITAN Brand
Rim: 8.0-20 or 9.00-20
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Toolbox: 1 set
Through these videos, you can learn about different types of semi tipper trailers, as well as the process, testing, packaging and customer feedback, etc.
