Different Parameters, Different Price. Price Reference Only.

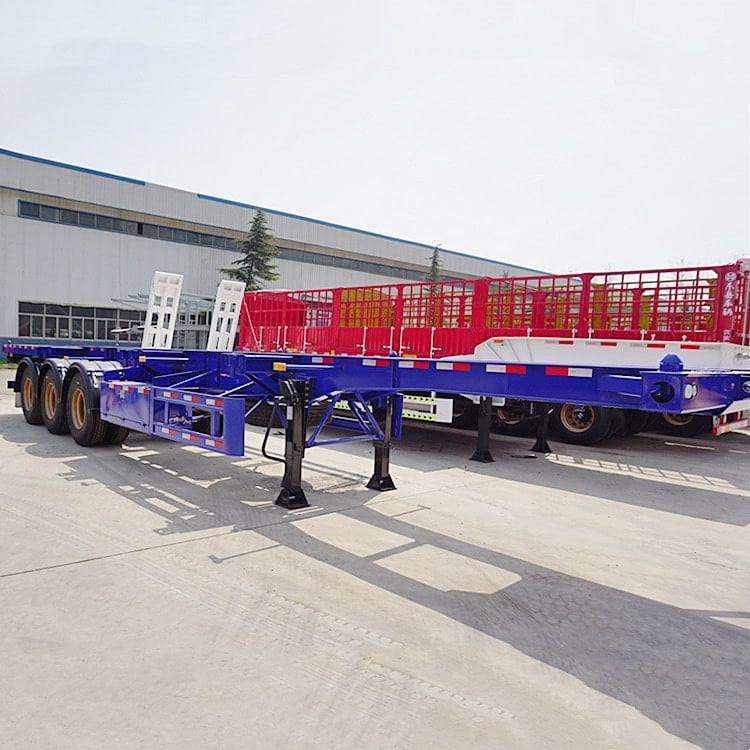

40ft multi function skeletal trailer is a special transport semi trailer used to transport containers. In the early days of the development of container transportation, due to the small load and the small number of containers, ordinary trucks were used to carry them.
40ft multi function skeletal trailer is a special transport semi trailer used to transport containers. In the early days of the development of container transportation, due to the small load and the small number of containers, ordinary trucks were used to carry them. With the rapid development of container transportation, many countries have successively developed vehicles specially used for transporting containers. The container semi-trailer determines the size of the loading position according to the size of the standard container, and is set at the position relative to the four corners of the bottom end of the container. Twisting and locking device for fixing containers, specially used for transport semi-trailers for transporting containers. So many types of shengren , anster , ultraton multi function skeletal trailer for sale from TITAN manufacturer.

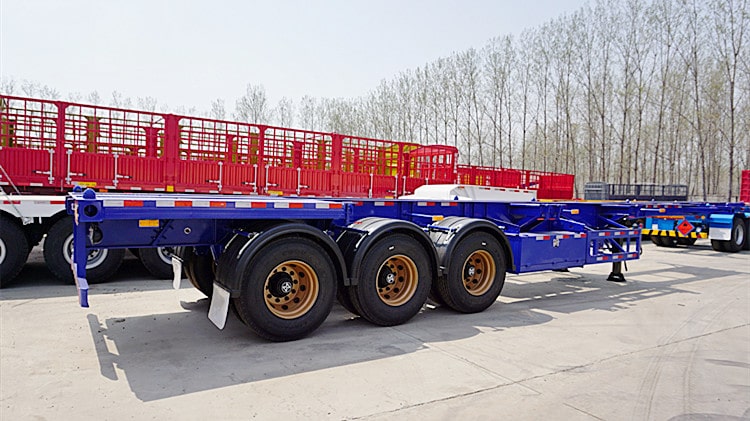

40ft Multi Function Skeletal Trailer for Sale in Qatar

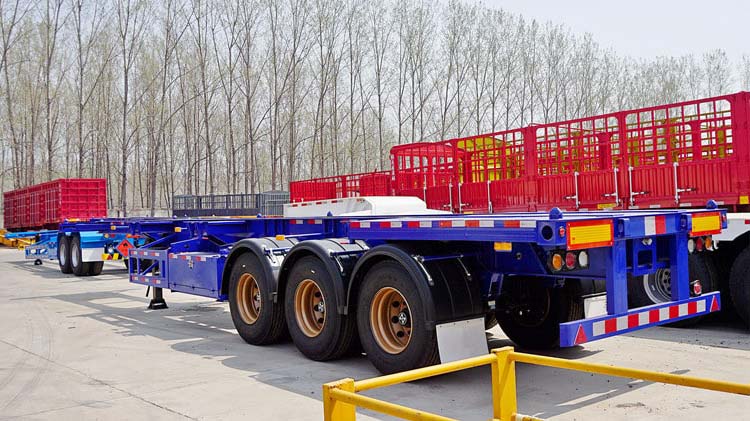

40ft Multi Function Skeletal Trailer for Sale in Qatar

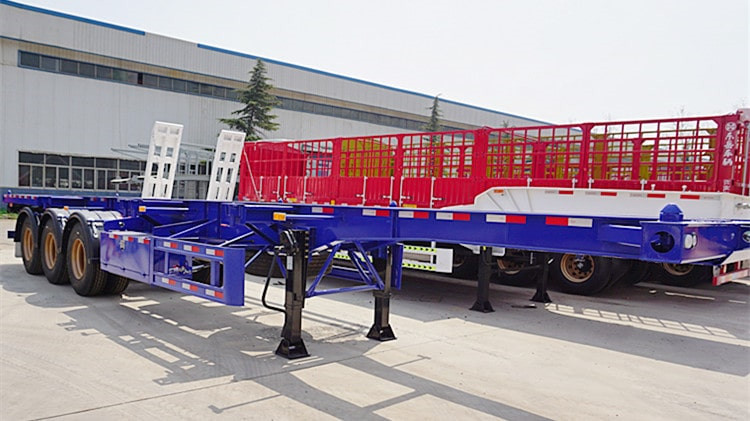

40ft Multi Function Skeletal Trailer for Sale in Qatar
Dimension(mm): 12400x2500x1500mm
Loading capacity(ton): ≤60T
Axles: 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand
Tire: 13 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension or Air suspension
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Shipping Terms: Transported by the bulk carrier in an RORO or 40ft container
Through these videos, you can learn about different types of 40ft Multi Function Skeletal Trailer , Tri Axle Skeletal Trailer , 12m Skeletal Trailer for Sale , Shengren , Anster , ULTRATON, as well as the process, testing, packaging and customer feedback, etc.
Please click " TITAN Container Skeleton Trailer" to get detailed video!
Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
