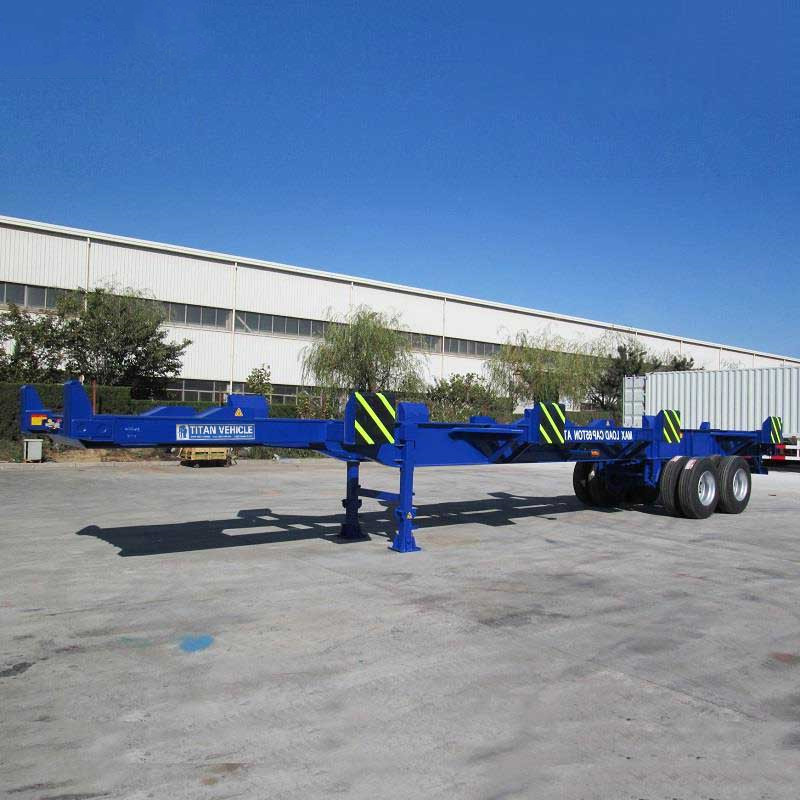

40 Foot Terminal Semi Trailer
40 Foot Terminal Semi Trailer

40 Foot Terminal Semi Trailer

6700 USD

Different Parameters, Different Price. Price Reference Only.



This 40 Foot Terminal Semi Trailer is adjustable to meet your desired maneuverability conditions for loading and offloading.

SKU: 40 Foot Terminal Semi Trailer
GTIN: 06975766112578
MPN: TITAN9401031
Brand: TITAN

Product Description:

40 Foot Terminal Semi Trailer for sale is an economically feasible and practical trailer to use. This is an invention that offers a truck chassis for loading and offloading high weight containers without much effort.

It has a simple structure. It comprises a simple truck chassis but of rugged construction.

This 40 Foot Terminal Semi Trailer is adjustable to meet your desired maneuverability conditions for loading and offloading. Adjustments to axle spacing can also be made based on your needs.

40 Foot Terminal Semi Trailer for Sale in Namibia Luderitz

40 Foot Terminal Semi Trailer for Sale in Namibia Luderitz

40 Foot Terminal Semi Trailer for Sale in Namibia Luderitz



Terminal semi trailer Specifications:

Dimension(mm): 12400x2500x1500mm

Loading capacity(ton): ≤60T

Axles: 2 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand

Tire: 13 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension or Air suspension

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Shipping Terms: Transported by the bulk carrier in an RORO or 40ft container
