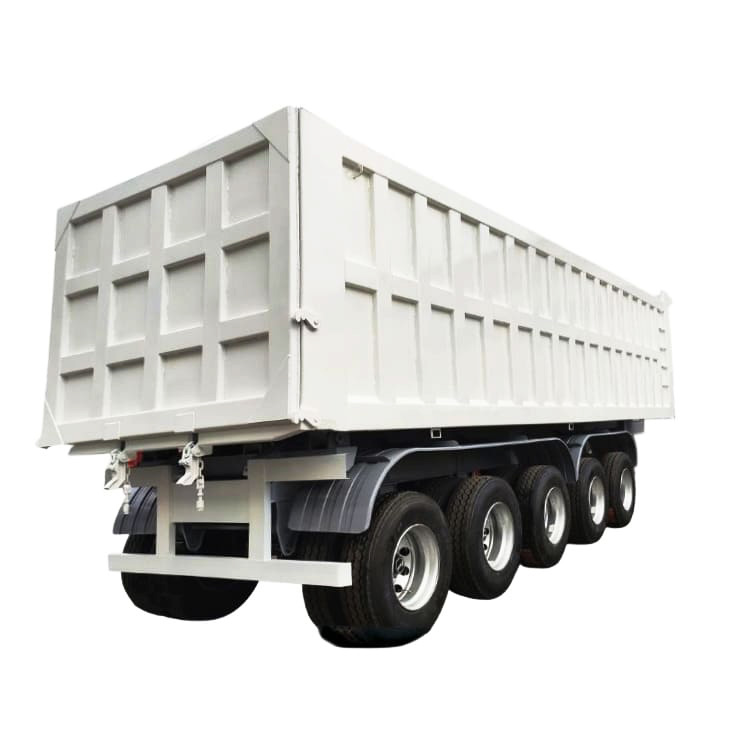

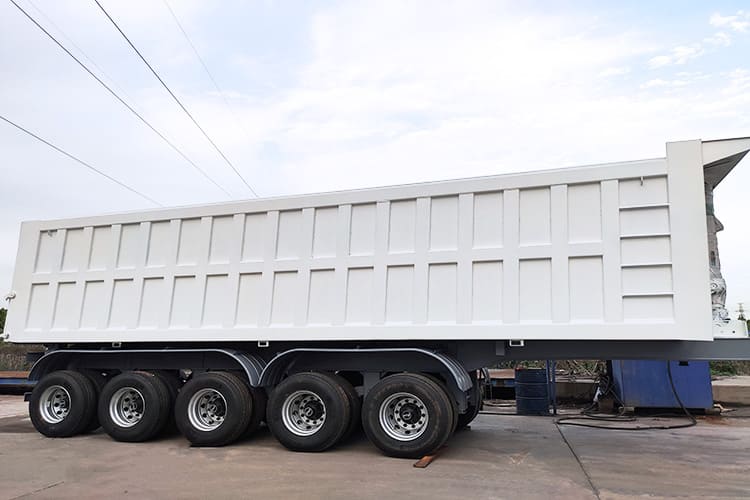

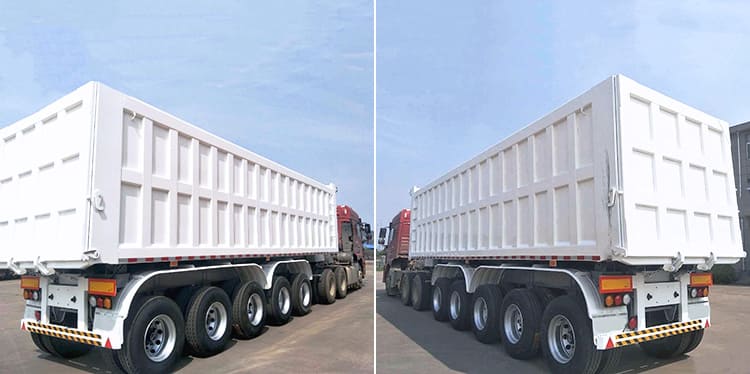

5 Axles 40 Cubic Heavy Duty Dump Trailer

Product Description:

TITAN Vehicle adopts 4 units vice beam on 5 Axles 40 Cubic Heavy Duty Dump Trailer, which can make the bottom of the box better bearing capacity, and will not easily deform.

5 Axles 40 Cubic Heavy Duty Dump Trailer adopts polyurethane paint with high adhesion, high chromogenic, beautiful color, and the cost is twice that of ordinary paint. The paint will not come off after five years using.

Specification:

Dimension: 9300mmx2500mm x3700mm ( inside dimension )

Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.

Bottom Platform: 4 thick checkered plate

Side wall thickness: 4mm

Total volume: 40cubic

End plate: 8mm

Lifting System: Full set of HYVA lifting cylinder

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20 or 9.00-20

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

Through these videos, you can learn about different types of semi dump trailers, as well as the process, testing, packaging and customer feedback, etc.

Please click " TITAN Dump Semi Trailer" to get detailed videos!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
