Different Parameters, Different Price. Price Reference Only.
TITAN Vehicle offers lowbed semi trailer designed to carry 30 tons, 40 tons, 60 tons, 80 tons, 100 tons, 120 tons, 150tons. It's main cargo platform is low, which ensures the stability of transportation.
5 axles low loaders trailer low bed trailers 5 axles 130 tons low bed trailer
TITAN is a specialilized heavy haul trailer manufacturer in China, with more than 15 years production experience and strong technical strength, TITAN semi trailers has successfully entered into over 50 countries around the world, such as Ethiopia, Malawi, Uganda, Mali,Zimbabwe, Zambia, Nigeria, Algeria, Sudan, Kenya, Djibouti, India, Pakistan, Argentina, Chile, Mexico, and so on.
Titan produces the high quality, strong and the most durable 130 ton Lowbed Trailer with 5 axles which can carry excavators, dozer, and other construction marchines. Titan 5 axles lowbed trailer with 130 ton load capacity can carry loads from 40 ton to 130 tons machnies and cargos, Titan Lowbed Trailer are noted for their highly robust structure steel, we can provide difference configurations of our lowbed trailer to meet your transportation requirement.
Features - TITAN 130 ton Lowbed Trailer with 5 axles
Highly robust structure steel with tensile and high load capacity,130 ton loading capacity .
Mechanical spring ramp is standard for easy loading and unloading.
Lower working platform height, working platform height from 850mm-1200mm
Heavy duty type mechanical spring suspsension for high loads requirements needs.
Length and width of lowbed avaiable custom made
Optional - TITAN 120 ton Lowbed Trailer with 5 axles
Hydraulic ramp is an option for loading and unloading
Air suspension or Bogie suspension
Self Steering or hydraulic steering axles
Side bracket is an optional for increasing overall width
Detachable gooseneck is an option.
Main specification - TITAN 120 ton Lowbed Trailer with 5 axles
Brand: TITAN 130 ton Lowbed Trailer with 5 axles
Overall dimension: 16000mm*2500mm*2200mm
Loading capacity: 120 ton
Axle: 5 axles
Suspension: Heavy duty mechanical spring suspension
Tire: 20 units
Landing gear: JOST
Brake system: WABCO
King pin: 90#
Electical system: 24V, LED lights
Details of TITAN 130 ton Lowbed Trailer with 5 axles

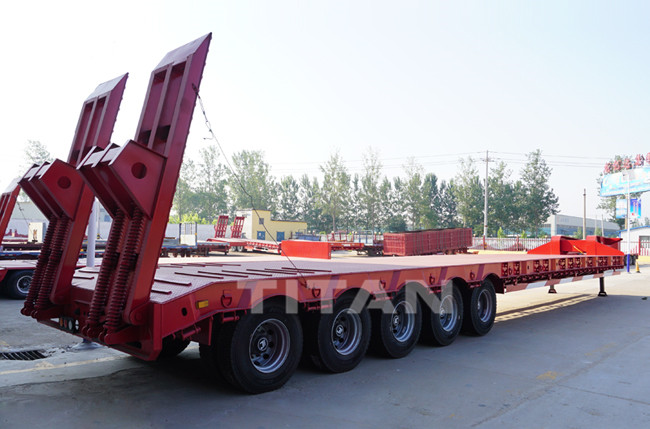

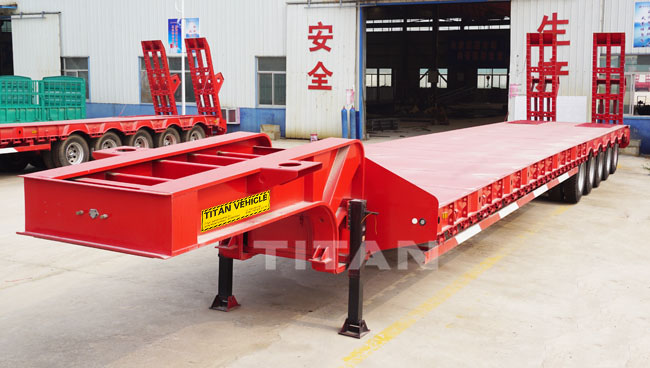

TITAN 130 ton Lowbed Trailer with 5 axles
TITAN 130 ton Lowbed Trailer with 5 axles
TITAN professinoal engineering team will be ready to provide you with a set of well-integrated solutions that meets your transportation needs and your local regulartions. TITAN engineering team can communicate with you online to fully understand your needs, the solutions include the product design, product material, product drawings, product videos.
