50T Cargo Semi Trailers
50T Cargo Semi Trailers

50T Cargo Semi Trailers

10000 USD

Different Parameters, Different Price. Price Reference Only.



TITAN VEHICLE are mainly production truck and trailer,truck and trailer,truck trailer,etc.Has become China's best manufacturer and exporter of special trailers and semi-trailers.

SKU: 50T Cargo Semi Trailers
GTIN: 06975766110321
MPN: TITAN9404012
Brand: TITAN

Product Description:

TITAN sidewall cargo semi truck and trailer use to load a wide range of products and materials, like sand, bags, poultry etc. Also the some bulk cargo, very widely used in the transportation industry.

Suitable for the mid/long distance transportation of the mid/heavy duty and bulk cargo trailer and truck. The high side cargo truck and trailer can be added with a container turn lock to transport the container.

3 Axle cargo semi trailer price

50T Cargo Truck and Trailer Price in Jamaica - TITAN Vehicle

50T Sidewall Semi Trailer and Truck



Specification:

Dimension(mm): 12500x2500x2350mm

Trailer Sides: 800mm sidewall

Loading capacity(ton): ≤50T

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ Huajing Brand

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical, Bogie, Airbag suspension(China brand or BPW brand)

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Bottom Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats



Cargo Truck and Trailer Advantage:

1. TITAN Vehicle adopts high strength steel material to manufacture the sidewall cargo trailer, it can make the trailer have a higher loading capacity and a longer service life.

2. To make sure the service life of the semi trailers, all the spare parts we adopt are World Famous brand.

3. Trailers floor is checker plate, this will keep the other bulk cargo more stable, like the bags, or long stuff.

4. Hight Quality side wall, make sure the stable and safety of the loads.



Other Trailers:

dropside trailer for sale price

Dropside semi truck and trailer for sale price-Click on the picture above,get more details

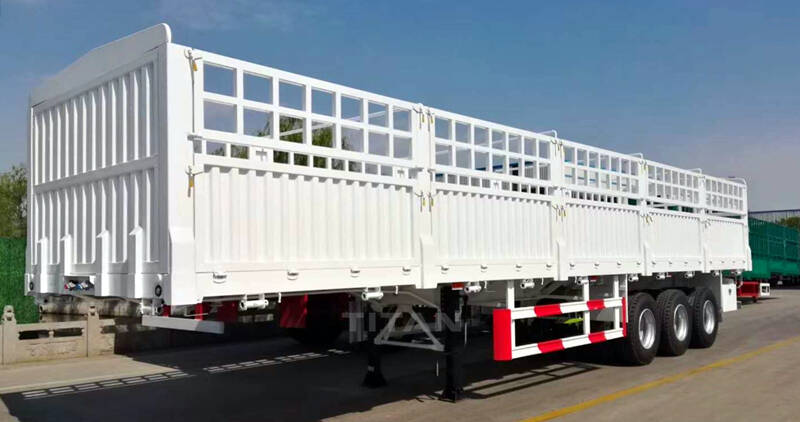

3 Axle Fence Cargo Trailer truck and trailer for sale-Click on the picture above,get more details



Video of Cargo Truck Trailers for sale:

Through the video below, you can learn about different types of side wall semi trailers(like 3 axle sidewall trailers, 4 axle high side trailer, grain hopper trailer, aluminum alloy side board trailer, 2 alxe side wall semi trailer with bogie suspension, dropside drawbar trailer)And the process, testing, packaging and customer feedback, etc.

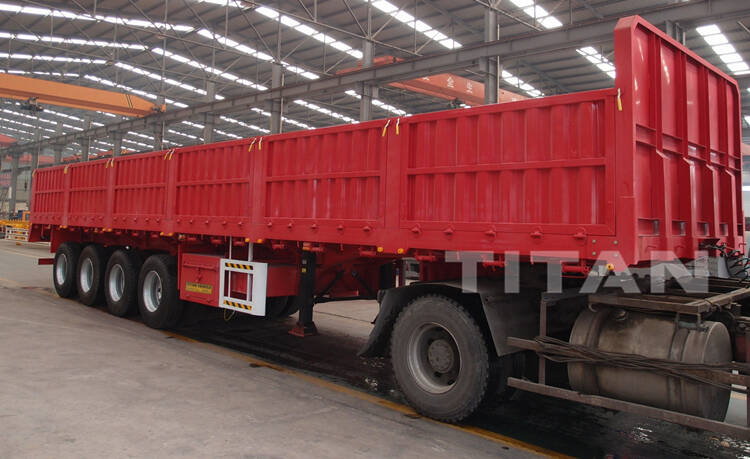

High side trailer



Please click "TITAN Cargo Semi Trailer" to get detailed video!



Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!

Review

Malvin Gora - 2021-06-21T09:06:40+0800
Overall, this is an incredible 50t cargo semi trailer. Very heavy, and very sturdy. Operate easily.
