60 Tons Tipper Trailer
60 Tons Tipper Trailer

60 Tons Tipper Trailer

16300 USD

Price: 16900USD


60 tons tipper trailer as known as end tipper trailer, 60 tons tipper trailer  structure includes chassis, box, and lifting sys. Work by PTO supply oil to the cylinder, lifting box till to design angle, cargo slide out, improve unloading efficiency.

SKU: 60 Tons Tipper Trailer
GTIN: 6975766111250
MPN: TITAN9407155
Brand: TITAN

60 Tons Tipper Trailer Description:

TITAN 60 tons tipper trailer adopt high strength steel to make it durable when load the sand or small stones or rocks. And the loading capacity are 40t, 60t, 80t.

TITAN 60 tons tipper trailer equipped with reliable hydraulic HYVA cylinder. We can customize the tipper trailers according to your special need, like U shape dump, end dump, side tipper, and container tippers including skeleton and flatbeds trailers.

We use well-known brand axles, FUWA, BPW. It’s with high performance, and reliable to use.

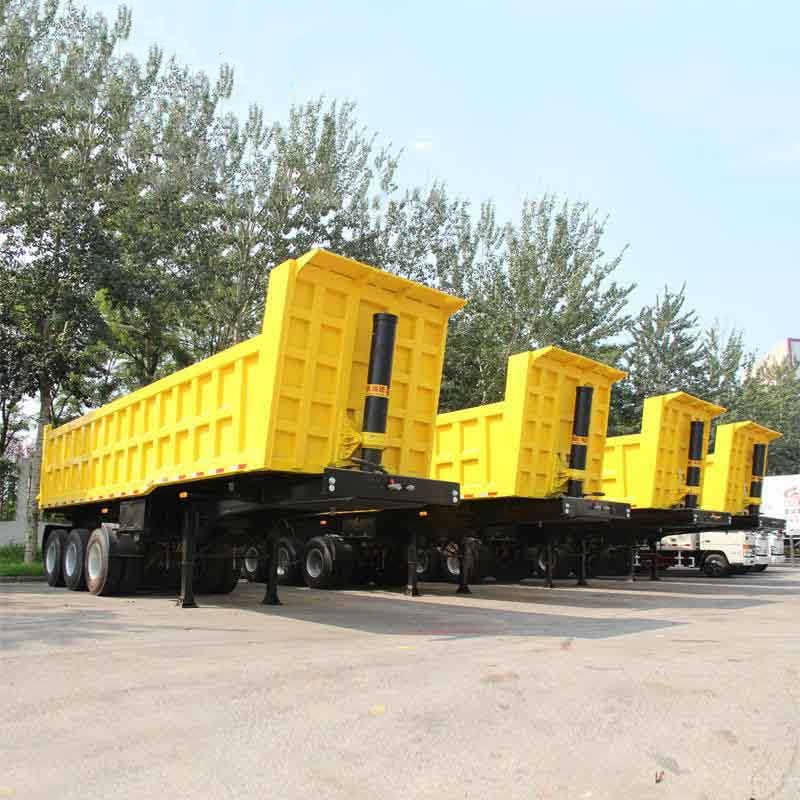

60 tons tipper trailer

60 Tons Second Hand Tipper Trailer for Sale Price Manufacturer

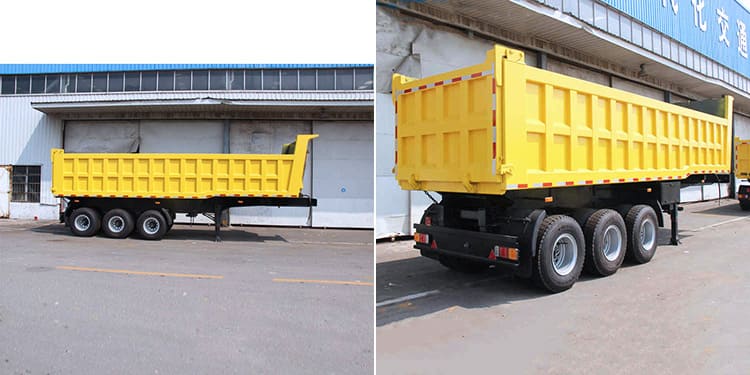

60 tons tipper trailer

60 Tons Second Hand Tipper Trailer for Sale Price Manufacturer

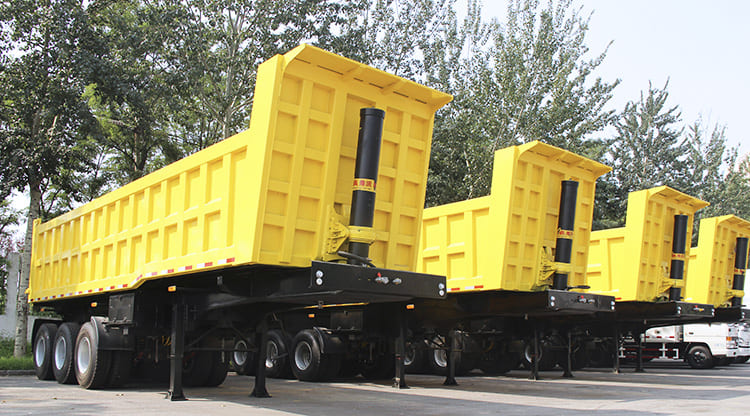

60 tons tipper trailer

60 Tons Second Hand Tipper Trailer for Sale Price Manufacturer


60 Tons Tipper Trailer Advantage:

1. Double-plate main beam for heavy-duty dump trailer, which have stronger carrying capacity, it is not easy to damage.

2. Hydraulic cylinder: The heavy-duty cylinder with a wider diameter, stronger lifting capacity and higher height, which makes the lifting more stable and does not easy to roll over.

3. with 4 units vice beam and cross balance beam. The lattice structure of the side door makes the side door more solid.

4. Flip Bracket: 4 units flip brackets, which can make the rear end more evenly loaded during unloading, and it is not easy to damage the trailer.

5. The leaf spring is widened and thickened, the shock absorption effect is good.

6. Strengthened Ribs, unique structure design to maximize the payload.


60 Tons Tipper Trailer Specification:

Overall dimension:9000mm * 2500mm *3950mm

Volume :  35CBM

Axles:3 axles

Suspension: Heavy duty mechanical suspension

Tipping system: 196 hydraulic cylinder

Tire:12 units

King pin:90#

Landing gear: JOST

Brake system: WABCO

Electrical system: 24V, LED lights


Through these videos, you can learn about different types of tipper semi trailer, as well as the process, testing, packaging and customer feedback, etc.

tipper trailer


Please click " TITAN Tipper Semi Trailer" to get detailed videos!


Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
