80 Ton 40 Feet Low Flatbed Trailer

80 Ton 40 Feet Low Flatbed Trailer

The 80 ton 40 feet low flatbed trailer is designed to transport goods that have non-standard dimensions or heavy weight. 80 ton 40 feet low flatbed trailer for sale are used to deliver construction, agricultural and other equipment to the place of work. The frame of the 80 ton 40 feet low flatbed trailer is low. This makes it possible to transport oversized cargo without fear of damaging power lines and other low structures when moving.

TITAN can provide customers different models of low flatbed trailer, like 3 axle, 4 axle, 5 alxe, 6 axle, etc, with differnet capacities.

80 Ton 40 Feet Low Flatbed Trailer for Sale in Nigeria

80 Ton 40 Feet Low Flatbed Trailer for Sale in Nigeria

80 Ton 40 Feet Low Flatbed Trailer for Sale in Nigeria

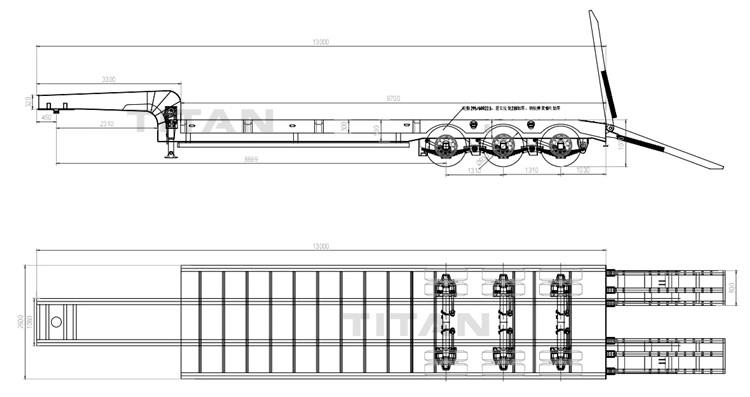

Low Flatbed Trailer Specification

Overall dimension: 13000mm * 3000mm *3400mm

Loading capacity(T): 80t

Axle: tri axle

Rim: 8.0-20

Tire: 12units, 11.00R20

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.

Bottom Platform: 5mm thick checkered plate

Ramp: Spring ramp

Gooseneck: Optional

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Package of the low flatbed trailer

There are some ways to transport the low flatbed trailer, bulk cargo, 40HQ containers.

1. 40HQ containers, The advantage of container packaging is that it can effectively prevent the low flaatbed trailer from being scratched. Inside the container, the flatbed can be well fixed and will not shake easily.

2. bulk cargo. After the low flatbed trailer is sprayed with wax, Titan will cover the whole body of the low flatbed trailer with a rain cloth. It can effectively prevent the surface of the low flatbed trailer from being scratched during transportation, and protect the appearance of the low flatbed trailer.

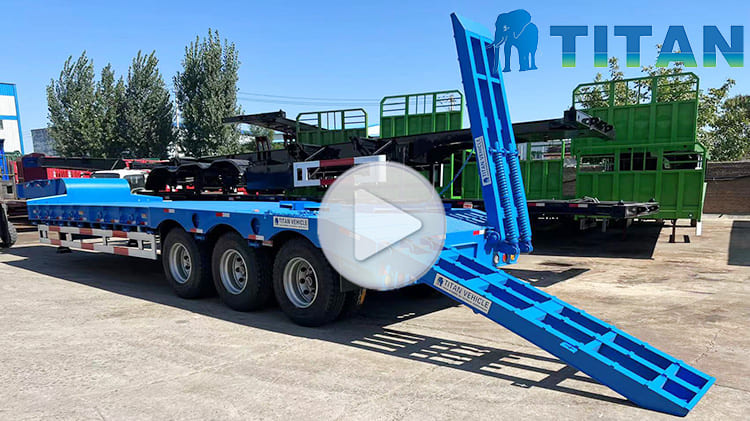

Video of 80 ton 40 feet low flatbed trailer

Through this videos, you can learn about different types of lowbed semi-trailers, as well as the process, testing, packaging and customer feedback, etc.
