TITAN Windmill Rotor Blade Adapter
TITAN Windmill Rotor Blade Adapter

TITAN Windmill Rotor Blade Adapter

100000 USD

Different Parameters, Different Price. Price Reference Only.



TITAN Windmill Rotor Blade Adapter , the adapter is customized for the blade.

SKU: TITAN Windmill Rotor Blade Adapter
GTIN: 6975766110987
MPN: TITAN9411029
Brand: TITAN

TITAN Windmill Rotor Blade Adapter

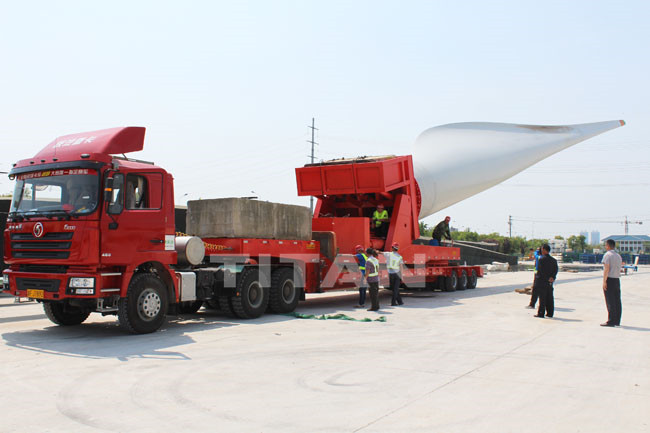

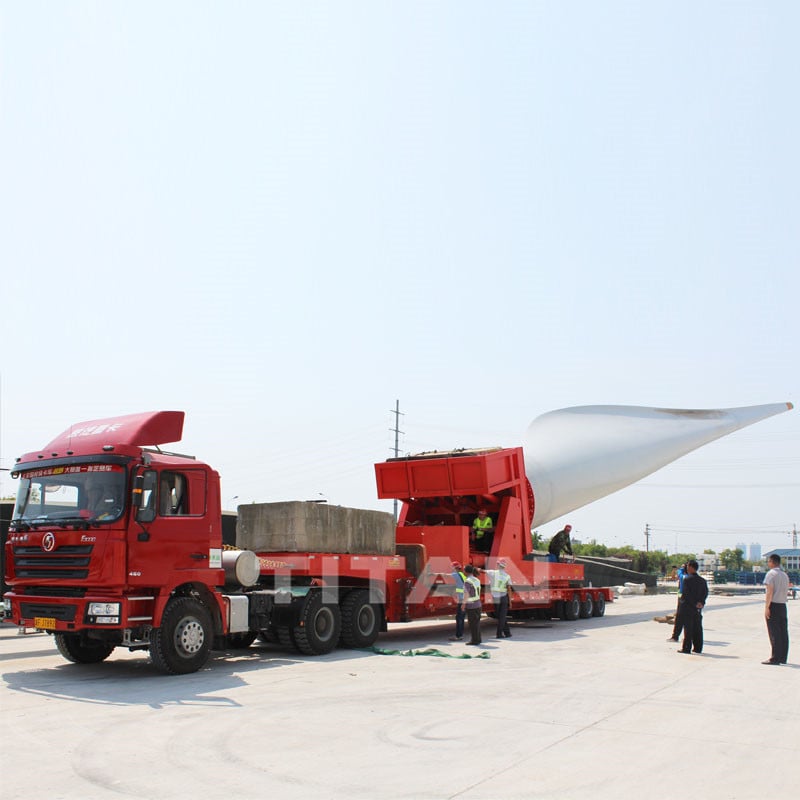

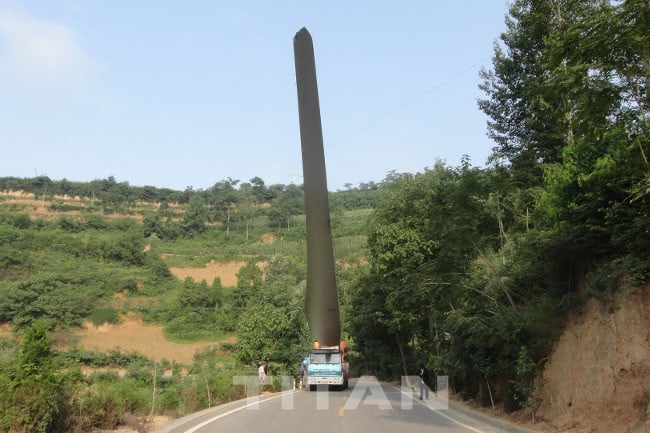

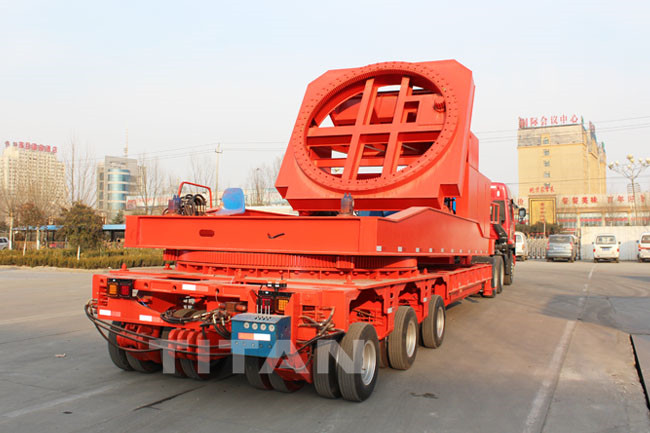

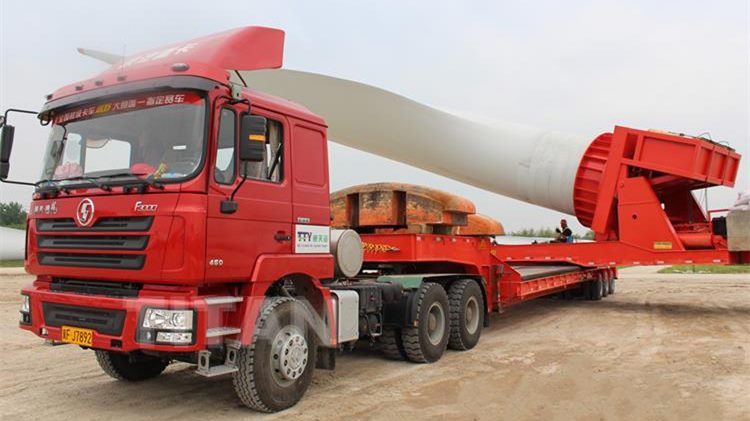

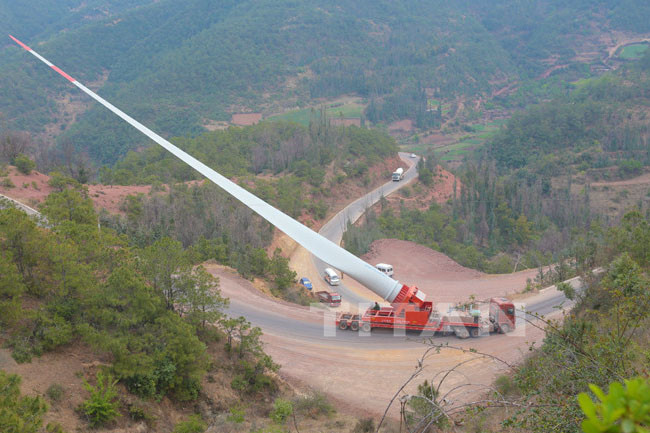

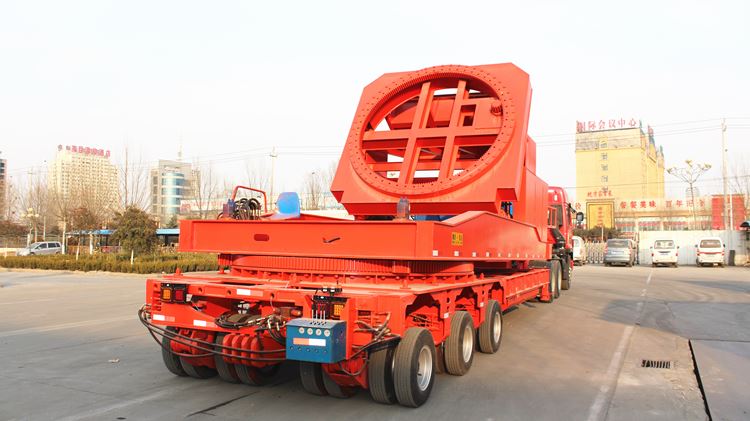

TITAN designs and produce Windmill Rotor Blade Adapter to tranpsport 30 meter to 80 meters Rotor blade, the Rotor Blade Adapter is specially for steep hills or narrow winding mountainous roads, and the rotor balde adapter can avoid obstacles such as the trees, buliding or limited spece, After Mounting on platform trailers, rotor blades can be picked up and positioned at an angle of up to 60°, pivoted as well as rotated around their owen axis. With the TITAN Windmill Rotor Blade Adapter, the rotor blades can be securely picked up and maneuvered around any obstacle,that is the easily, safely and efficiencly way to transport the rotor blades for customers.

According to different road conditions and load requirements, TITAN Windmill Rotor Blade Adapter can be mounted and transported on both on a pulled platform trailer combination as well as module trailer, and self propelled modules.

windmill rotor blade adapter

windmill rotor blade adapter



Specification:

Brand: TITAN Adapter trailer for 80m wind turbine blade transportation

Dimension: 16250mm*3700mm*5000mm

Loading capacity: 23.5 Tons

Axle: 3 lines 6 axles

Max rotation angle: 360°

Hydraulic station: 40KW Four-cylinder Diesel Engine

Tail: Slewing support cylinder with tooling at the tail (horizontally telescopic); with pusher

Transportable wind blade specification: 121-155 model

Diameter of lifting cylinder: 320mm; four-axis tire 8.25R16



TITAN Windmill Rotor Blade Adapter - www.titanvehicle.com

Windmill Rotor Blade Adapter

TITAN Windmill Rotor Blade Adapter - www.titanvehicle.com

Windmill Rotor Blade Adapter

TITAN Windmill Rotor Blade Adapter - www.titanvehicle.com

Windmill Rotor Blade Adapter

TITAN Windmill Rotor Blade Adapter - www.titanvehicle.com

Windmill Rotor Blade Adapter



Main Features - TITAN Windmill Rotor Blade Adapter

  • Max rotation angle of the rotor balde 360°

  • Angle of inclination up to 60°

  • Radio remote control with display of wind speed, transverse gradient, blade position, ballast position.

  • The height of trailer platform can be 500mm to 1000mm



TITAN professinoal engineering team will be ready to provide you with a set of well-integrated solutions that meets your transportation needs and also your local regulartions. TITAN engineering team can communicate with you online to fully understand your needs, the solutions include the product design, product material, product drawings, product videos.

All customers and friends are warmly welcomed to our company for visit and business negotiations, TITAN will as always to our best effort to provide you the most durable Windmill Rotor Blade Adapter to support you forever.

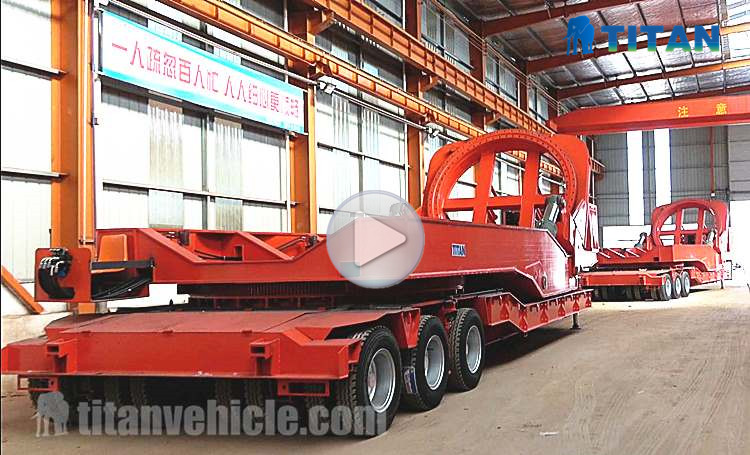

Through the video you can learn more details about the windmill rotor blade adapter trailer.

If you are interested, welcome to the inquire or online message! Please fill in your contact information and suggestions! Thank you!

We will meet the acme of perfection to serve and provide more details , price ,catalog,drawing ,video for you !

Orders for ready-made or custom-made trailers are welcome!
