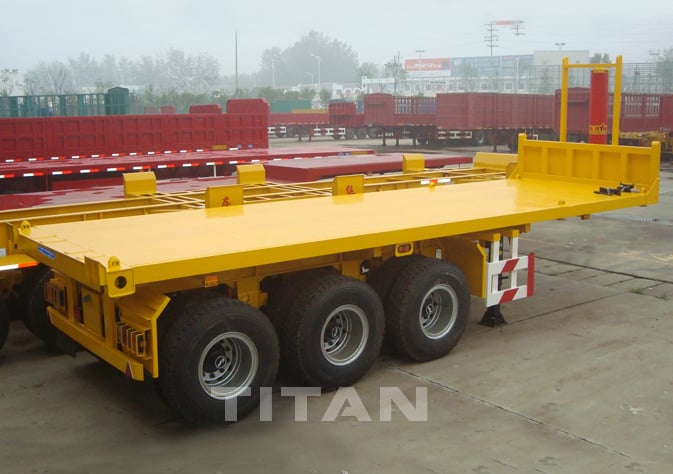

Tipping Flatbed Trailer

Tipping container semi trailer tipper container tipping flatbed trailer

TITAN produces Tipping Flatbed Trailer for standard 20ft 40ft Containers.TITAN Tipping Container trailer are commonly available in 20ft or 40ft, which is suitable for standard 20ft or 40ft container,Customers can decide on suitable Tipping Angle, Tipping Speed and Carrying Capacity, Whether it be for on-road or off-road applications.

Advantages of Tipping Flatbed Trailer

• FuWA axle 2 / 3

• deadweight light

• Novel design

• Low center of gravity

• Free accessories

• High cost-effective


Customized of Tipping Flatbed Trailer

• For different color

• shape U type / Square type / container flatbed dump

• capacity 30 ton - 100 ton

• Single action or Linkage landing leg

• Mechanical suspension or air suspension

• any type of container tipper trailer



Specification of Tipping Flatbed Trailer

 Dimension:11280*2500*3972mm(outside) 10330*2330*1700mm (work space )

Tare weight:About 15600KGS

Total Volume(m3):37 m³ or less than 80tons

Bottom plate thickness(mm):5mm-8mm /Q235 steel or can be optional

Lifting system:Full set of Hyva (FC214-5-07130) Hydraulic Lifting Cylinder

Main Beams:Height:500mm, upper plate is 16mm,middle is 8mm(double+three plate),down plate is 18mm,material is Q345B steel

Axle:3 axles, 13T/16T, FUWA/BPW/ Brand

Landing Gear:JOST (D200T)or China Brand 28Tons

King Pin:JOST 2.00 or 3.5 inch bolt-in king pin or Welding type

Suspension:Mechanical suspension (Germany Type or America Type) or Air suspension(China brand or BPW brand)

Products display of tipping container semi trailer

If you are interested, welcome to the inquire or online message! Please fill in your contact information and suggestions! Thank you!

We will meet the acme of perfection to serve and provide more details , price ,catalog,drawing ,video for you !

Orders for ready-made or custom-made trailers are welcome!
