48m Wind Blade Carrier Trailer

Wind Blade Carrier Transporter Stretchable Trailer for Transporting Wind Blade

Your road to success

TITAN is a specialized heavy haul trailer manufacturer in China, with more than 15 years production experience and strong technical strength, TITAN semi trailers has successfully entered into over 50 countries and areas around the world, such as Ethiopia, Malawi, Uganda, Mali,Zimbabwe, Zambia, Nigeria, Algeria, Sudan, Kenya, Djibouti, India, Pakistan, Argentina, Chile, Mexico, and so on.

For transporting extremly heavy and long windmill turbine blade - Wind Blade Carrier Trailer from TITAN is the ideal solution, with single to triple extendable decks and a loading length of up to 56 meters, a TITAN Wind Blade Carrier Trailer adapts perfectly to haul 45 meters to 80 meters long windmill turbine blade transportation and long bulky goods.TITAN Wind Blade Carrier Trailer are noted for their highly robust frames and outstanding stability of the extension beam. the high standard of the workmanship and welding process ensures easy adjustment of the extension beams TITAN Wind Blade Carrier Trailer can be adjusted to fit any size or band of Turbine Blade, TITAN can provide you the customize wind blade trailer to meet your transport requirements.

Features - TITAN Wind Blade Carrier Trailer

• Trailer's length from 18.5 meters extend to 48meters

• Transport the 45 meters to 65 meters Windmill Turbine Blade.

• Loading capacity is up to 60 ton

• Steerable axles, all wheels steering.

• Highly robust frames and outstanding stability of extension beam.

• Mechanical spring suspension, air suspension or hydraulic suspension is an option

• Manual valve operation and wireless remote control.

Main Specification - TITAN Wind Blade Carrier Trailer

Brand: TITAN Wind Blade Carrier Trailer

Dimension: 18,500mmX3000mmX1300mm

Total length: 47,000mm after extension

Loading capacity: 60 Ton

Platform thickness: 3 mm

Hydraulic power station: Diesel engine

Axle: 3 units steering axle

Suspension: Mechanical spring suspension.

Tyre: 12 units, Triangle brand

Braking system: WABCO emergency valve

King pin: 3.5 inch high tensile steel bolted type

Landing gear: JOST C200

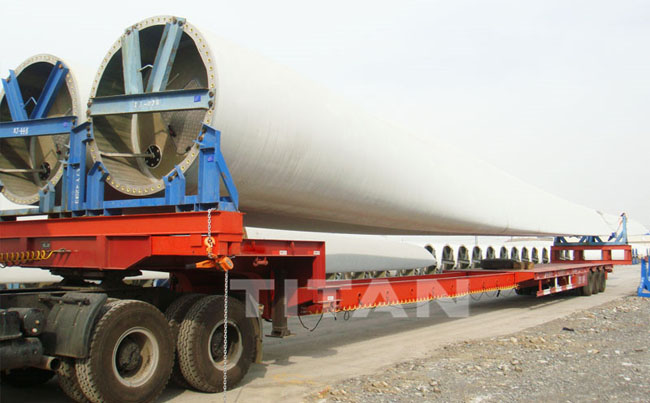

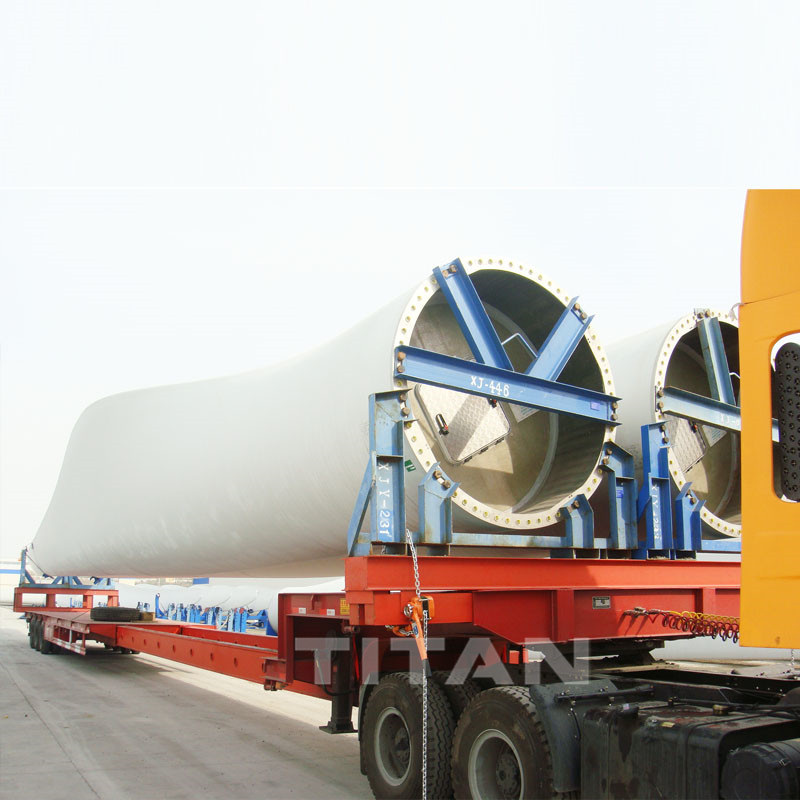

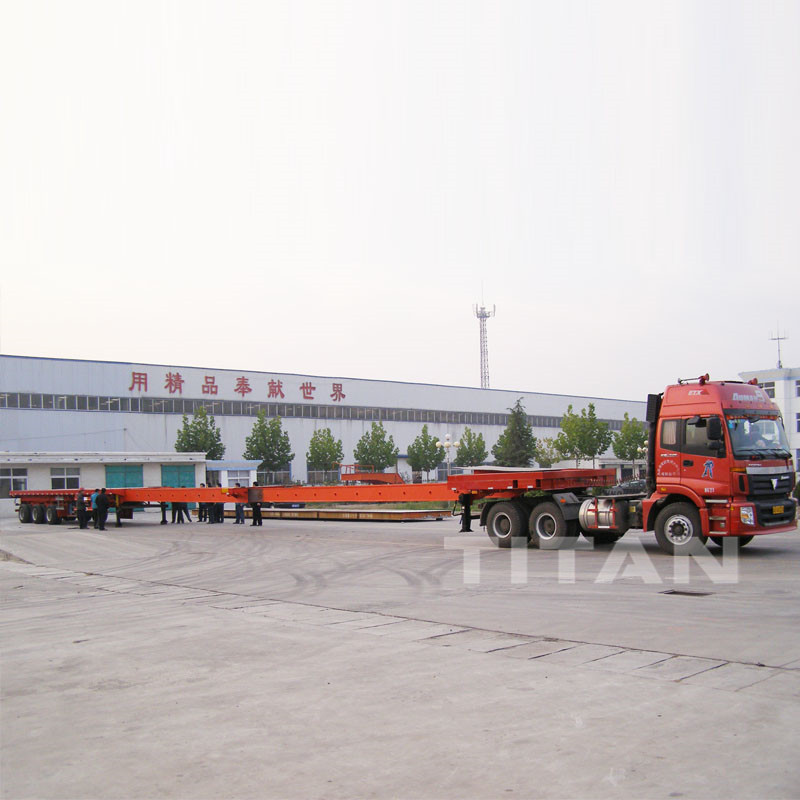

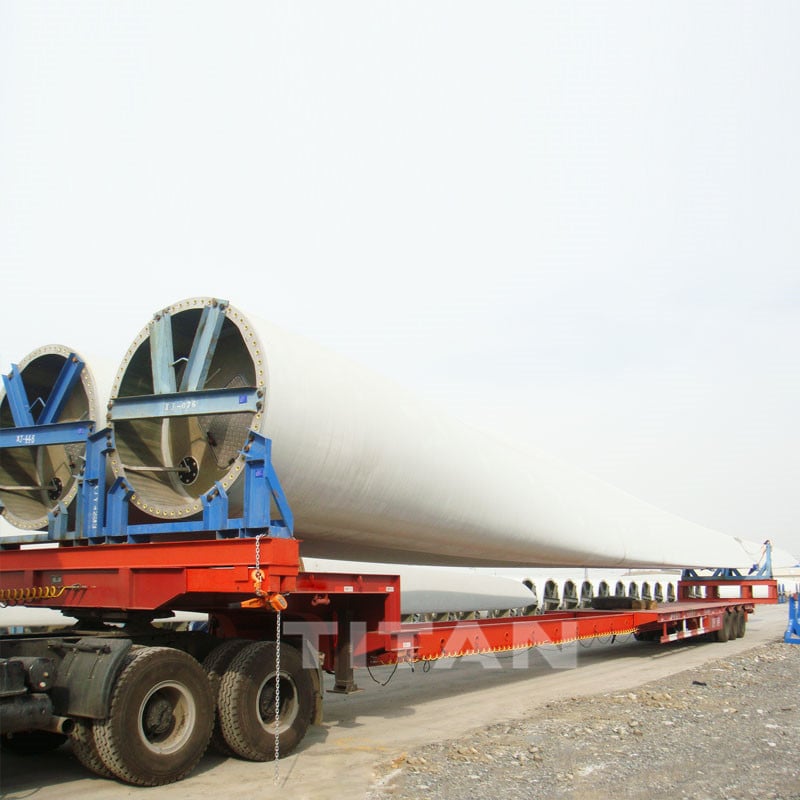

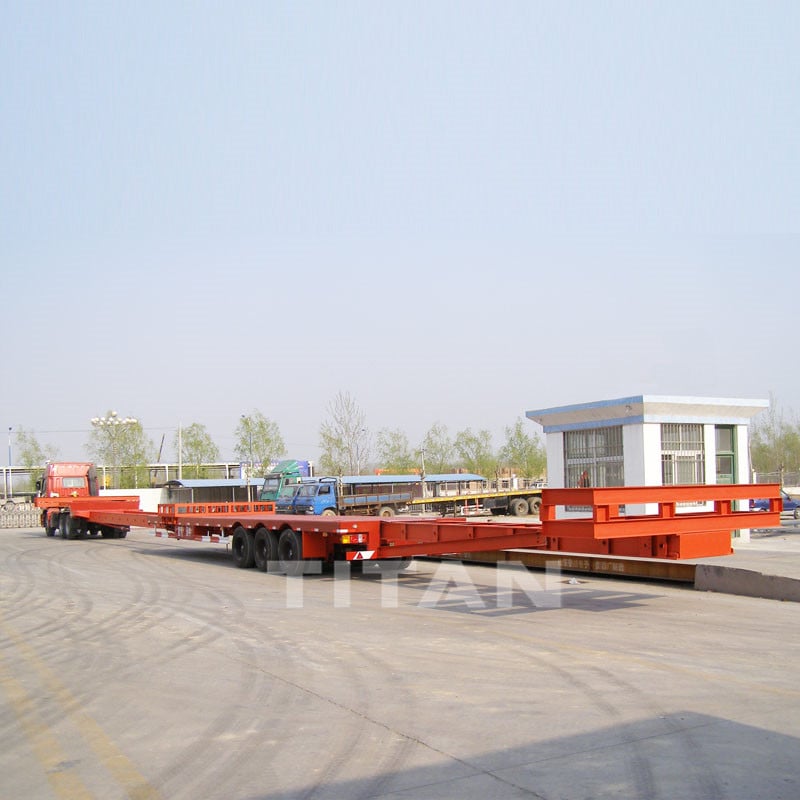

TITAN Wind Blade Carrier Trailer

TITAN 47m Wind Blade Carrier Trailer- www.titanvehicle.com

TITAN 47m Wind Blade Carrier Trailer- www.titanvehicle.com

TITAN 47m Wind Blade Carrier Trailer- www.titanvehicle.com

TITAN 47m Wind Blade Carrier Trailer- www.titanvehicle.com

TITAN professinoal engineering team will be ready to provide you with a set of well-integrated solutions that meets your transportation needs and also your local regulartions. TITAN engineering team can communicate with you online to fully understand your needs, the solutions include the product design, product material, product drawings, product videos.

All customers and friends are warmly welcomed to our company for visit and business negotiations, TITAN will as always to our best effort to provide you the most durable Wind Blade Carrier Trailer to support you forever.

If you are interested, welcome to the inquire or online message! Please fill in your contact information and suggestions! Thank you!

We will meet the acme of perfection to serve and provide more details , price ,catalog,drawing ,video for you !

Orders for ready-made or custom-made trailers are welcome!
