50 Ton Livestock Trailer

Animal transport trailer description:

The fence type animal transport trailer is a cheap and light construction compared to other livestock trailer that you will ever come across out there in the market. The loading capacity of the bulk cargo semi trailer is larger and it is designed and built in such a way that it is easy to clean.

The 50 ton bulk cargo semi trailer also use to load a wide range of products and materials, like sand, bags, poultry etc. Also the some bulk cargo, very widely used in the transportation industry. And the cattle transport trailer can be added with a container turn lock to transport the container.

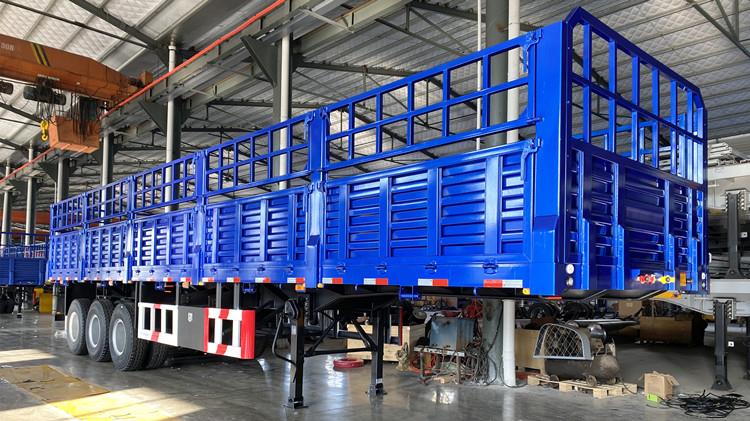

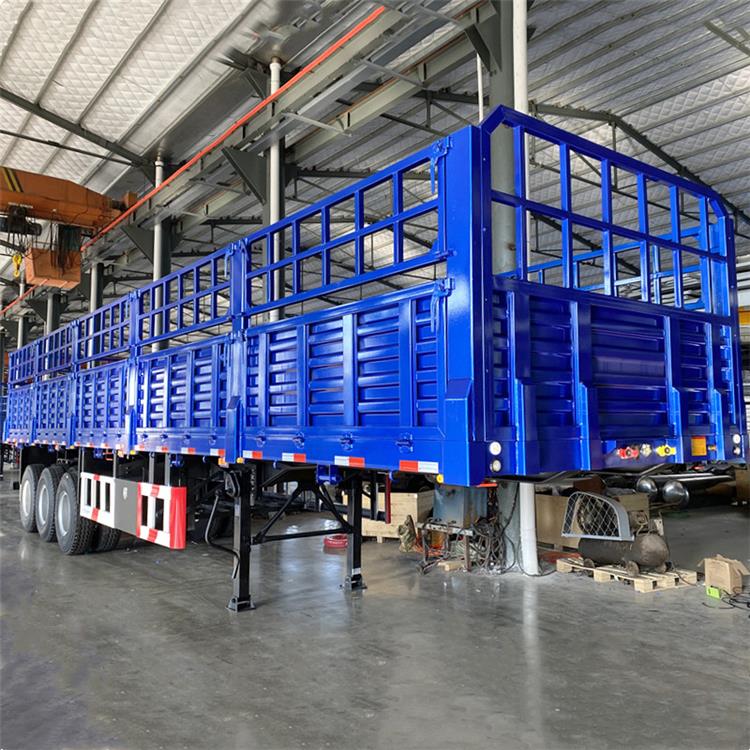

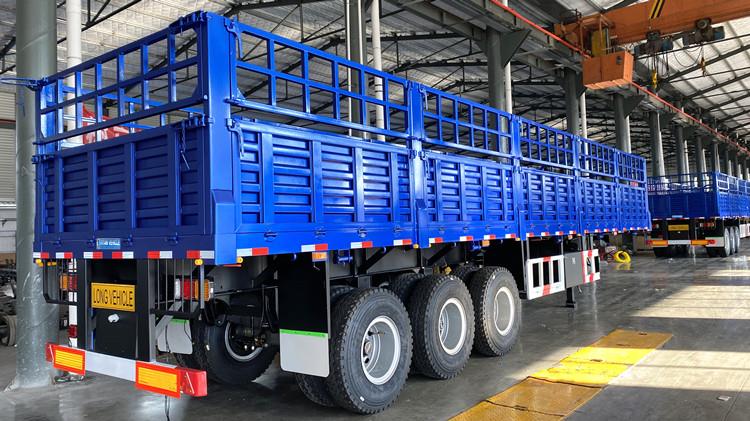

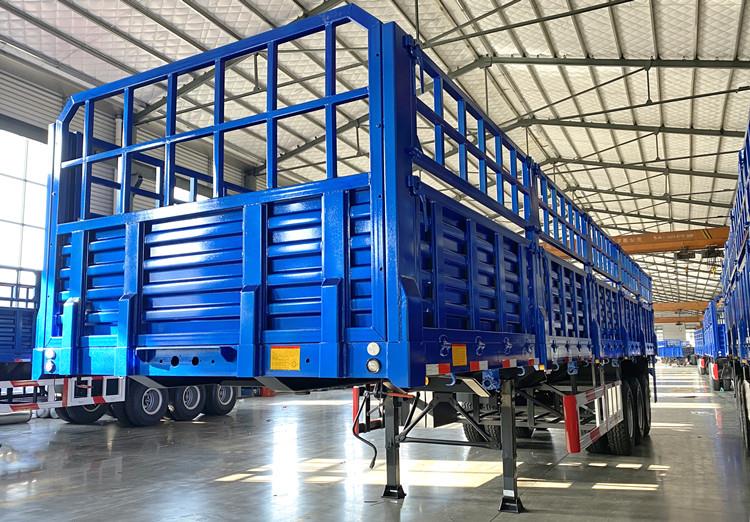

Livestock Trailer | Animal Cattle Bulk Cargo Transport Semi Trailer

Livestock Trailer | Animal Cattle Bulk Cargo Transport Semi Trailer

Specification of livestock trailer:

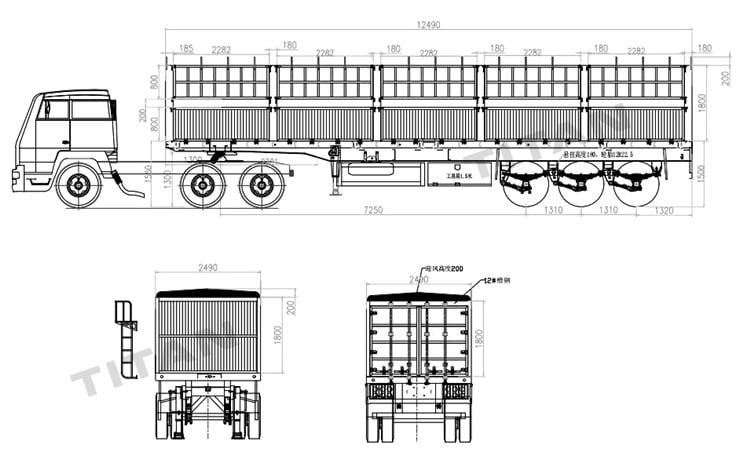

Dimension(mm): 12490x2490x3500mm

Trailer Sides: 1800mm

Loading capacity(ton): ≤60T

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ Huajing Brand

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Bottom Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Loading a animal transport trailer

1. Do an inspection to make sure that there are no sharp objects protruding into the cattle transport trailer. Repairs to such protrusions should be made to prevent injury to your livestock trailer.

2. Weight is well distributed. Allow the heaviest animals to occupy the section supported by the cattle transport trailer axles’ front. Larger and older animals should be loaded first and then follow up with smaller and younger ones.

3. Use slip knots when tying the animals after loading them onto the livestock trailer. Tying inside the animal transport trailer should be made at head height.

4. Always be careful about being squeezed and pinned between the animals or the livetock trailer sides and the trailer gate as well.

5. Immediately after loading the animals onto the bulk cargo semi trailer, close the gates and make sure the animals are secure.

Through this video, you can learn about different types of bulk cargo semi trailer, as well as the process, testing, packaging and customer feedback, etc.
