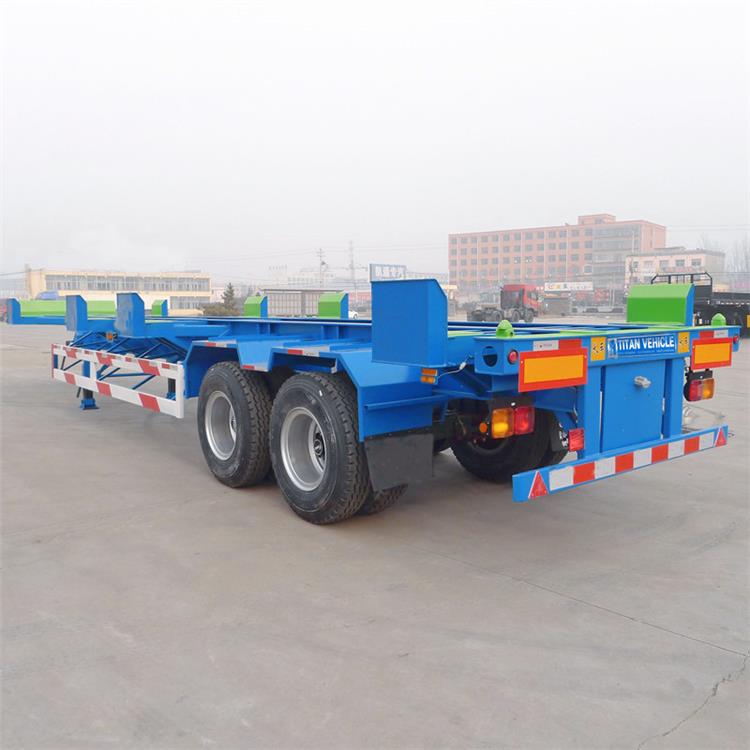

45 ft Bomb Cart Terminal Trailer
45 ft Bomb Cart Terminal Trailer

45 ft Bomb Cart Terminal Trailer

11500 USD

Container trailer chassis manufacturers - TITAN 45 ft bomb cart trailer is designed and manufactured to transport 1x20ft , 2x20ft , 1x40ft ,1x45ft container within port terminal areas.

SKU: 45 ft Bomb Cart Terminal Trailer
GTIN: 6975766114053
MPN: TITAN9401200
Brand: TITAN

Bomb Cart Trailer Description:

Container trailer chassis manufacturers - TITAN 45 ft bomb cart trailer is designed and manufactured to transport 1x20ft , 2x20ft , 1x40ft ,1x45ft container within port terminal areas.

Clearly marked self-locating guides allow rapid container loading onto the chassis for reduced cycle times and optimum efficiency in port and rail applications.

TITAN shipping container chassis for sale can be used repeatedly for a long time and has sufficient strength. It is convenient for the filling and unloading of goods to meet the individual needs of customers. According to customer needs, tooling guarantee, stable quality and reliable performance.

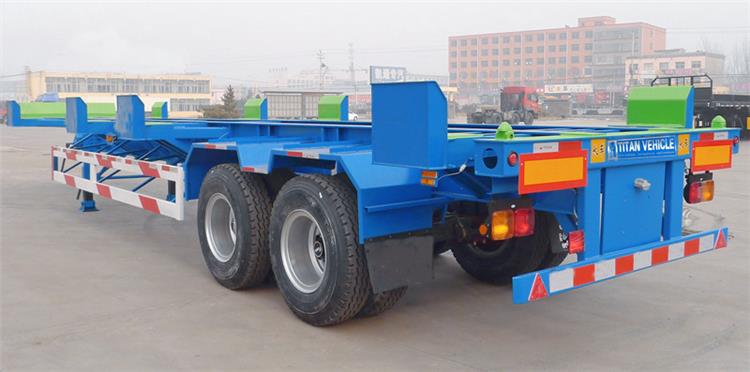

Bomb Cart Terminal Trailer | New Shipping Container Chassis for Sale Manufacturers

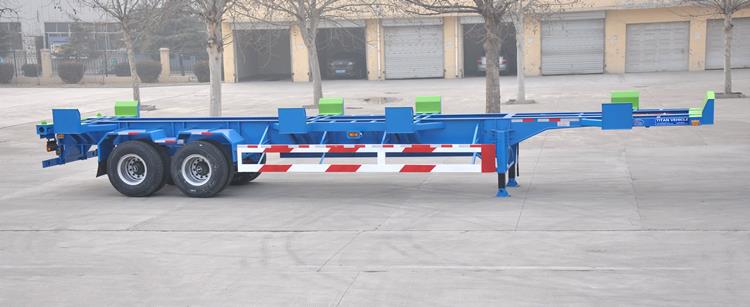

Bomb Cart Terminal Trailer | New Shipping Container Chassis for Sale Manufacturers

Bomb Cart Terminal Trailer | New Shipping Container Chassis for Sale Manufacturers

Bomb Cart Terminal Trailer | New Shipping Container Chassis for Sale Manufacturers

Bomb Cart Terminal Trailer | New Shipping Container Chassis for Sale Manufacturers

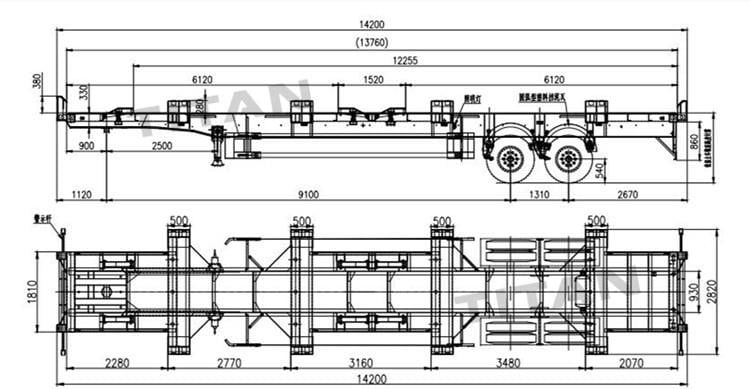

Specification of shipping container chassis for sale:

Dimension(mm): 14200x2820x1500mm

Loading capacity(ton): ≤60T

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

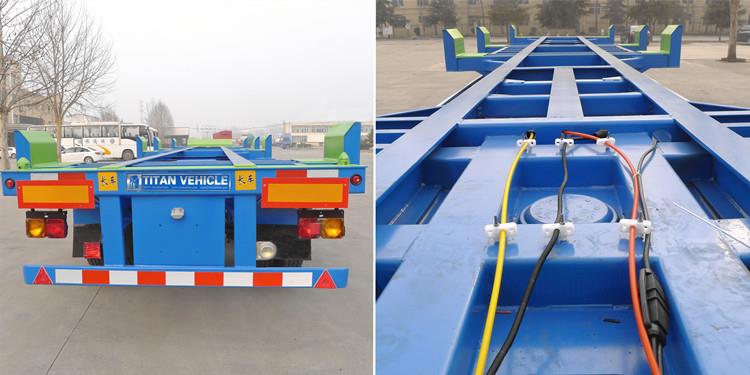

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Shipping Terms: Transported by the bulk carrier in an RORO or 40ft container

Bomb Cart Terminal Trailer | New Shipping Container Chassis for Sale Manufacturers



Shipment of terminal trailer:

Many customers use the method of container transportation, which has low transportation costs and short transportation time.

Some customers choose bulk carriers or ro-ro ships. Before the TITAN new container chassis for sale is shipped, the terminal trailer is sprayed with wax and covered with a tarpaulin.

Bomb Cart Terminal Trailer | New Shipping Container Chassis for Sale Manufacturers



Through the video, you can know different types of skeleton trailers, as well as the process, testing, packaging and customer feedback, etc.

Please click "TITAN Container Skeleton Trailer" to get detailed video!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!

Review

Humphre from Zambia - 2022-08-02T15:08:48+0800
We've been using it for about 2 months for container transport. With it's strong platform, safety features, and great support service, it's truly the best bomb cart trailer for the container transport business. The terminal trailer was shipped very promptly and was well packaged.
