Different Parameters, Different Price. Price Reference Only.

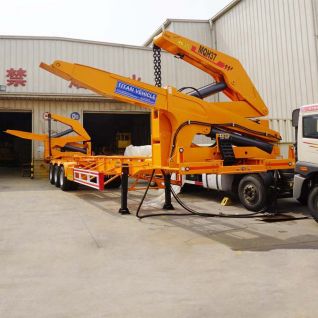

TITAN Sidelifter Trailer include 20ft self loader truck, 20ft and 40ft container side lifter trailer. Shipping tonnage is 21 tons, 37 tons, 40 tons, 45 tons for your choice.

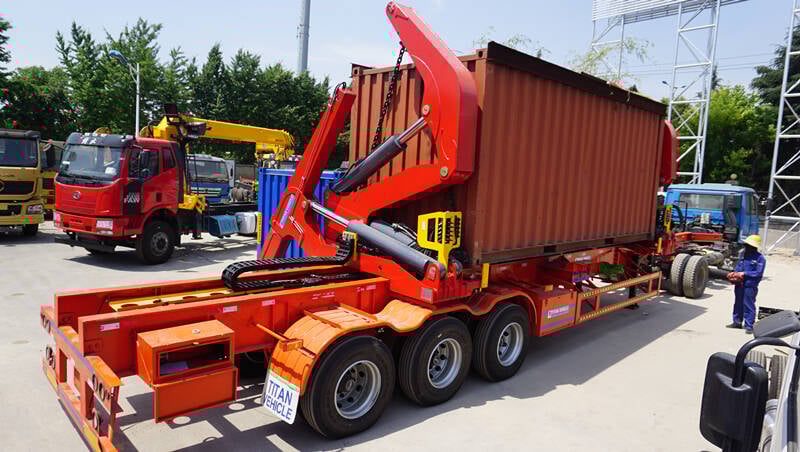

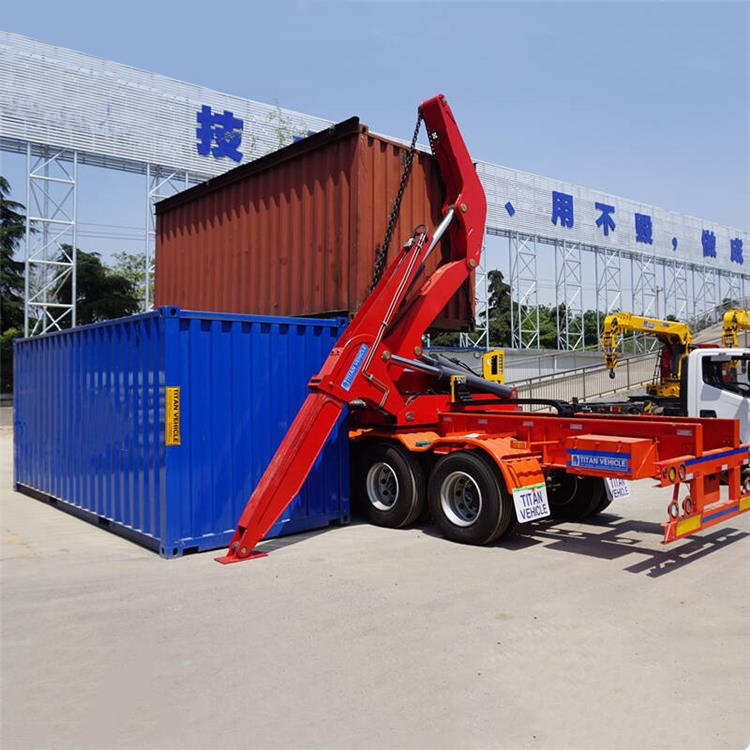

TITAN 45 tons container side loader trailer is used for loading and unloading 40ft container or 20ft container.
TITAN Container side loader have made work flexible, Save time and improve productivity for satisfied customers around the world.
We adopt World famous brand parts of the side lifter cranes.
• Double hydraulic safety provides safe lifting
• Lifting stops, if the support legs are not folded out
• Roll- and tip-proof with long support leg outreach
• Safe lifting; always four support points when stacking
• Tried and tested, user-friendly technology
• Detailed operating instructions also ,we have the Video Explanation
• Overseas engineer to provide technical service
• You can reach us at any time and get a rapid response
• Competent technical service
• Rapid and safe deliveries of spare parts
Max.lifting capacity: 45 ton
Funtion: Load 20/40ft container trailer
Trailer Chassis: 14100mm * 2500mm *4100mm
Axles: 3 axles
Tire: 12 units
Landing gear: JOST C200
Hydraulic pump: Gear type Casappa Italy
Hydraulic direction control valves: AMCA Holand
Motor: Japanese Kubota diesel engine

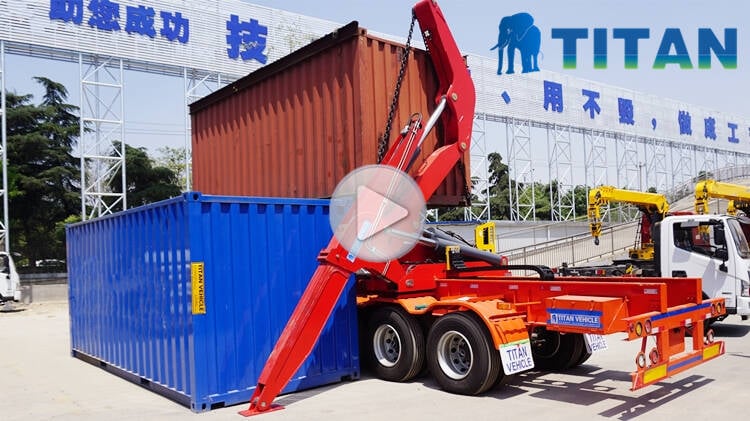

Through this videos, you can learn about different types of container side loader trailers, as well as the process, testing, packaging and customer feedback, etc.
