Different Parameters, Different Price. Price Reference Only.
4 Axle Detachable Gooseneck Trailers for Sale on our online store offer a smooth behind the wheel experience when hauling intense loads.
Detachable gooseneck trailers are specially designed to hang on the ball in the center of the pickup truck bed. This type of hook has two obvious advantages. First, compared to the load attached at the rear of the truck, the truck bears a much greater weight under a load centered on the truck axle. Second, the gooseneck hook has higher stability and safety because its weight is carried from the middle of the truck bed. Compared with bumper pull trailers, increasing the tongue load on the bed enables the trailer to be towed with higher safety and stability factors. The gooseneck hook greatly reduces the possibility of the trailer "swinging".
Dimension: 16500mm x 3000mm x 2500mm
Loading capacity(T): 50-150T
Axle: 13T/16T, FUWA / BPW / TITAN Brand
Rim: 8.0-20 or 900*22.5
Suspension: Mechanical suspension or air suspension
Spring leaf: 120(W)mmx16(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Tare weight: About 9.5-19T
Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.
Bottom Platform: 5mm thick, checkered plate
Hydraulic cylinder: 12KW diesel engine with hydraulic station
Ramp: spring or hydraulic type
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Tool box: 1 set
Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust
Shipping terms: Transported by the bulk carrier in an RORO or 40HQ container

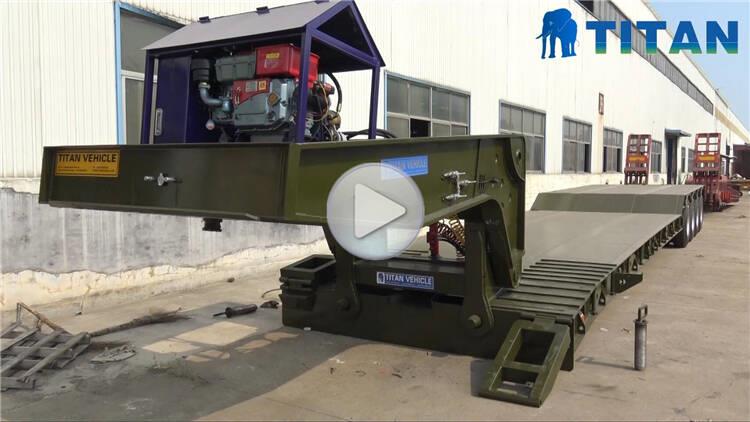

Through the video, you can know different types of 4 axle detachable gooseneck trailers for sale , 100ton detachable gooseneck trailer , detachable gooseneck trailer price, etc.
Please click "TITAN Removable Gooseneck Trailer" to get detailed video!
Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
