Different Parameters, Different Price. Price Reference Only.
Tri Axle Excavator Trailer for Sale produced by titan manufacturer with high quality to transport heavy loads and equipment.
Gooseneck excavator trailer for sale also have a tighter turn radius. This lets you cut corners tighter than a bumper pull trailer and lets you maneuver the trailer in tighter spaces. This tight turn radius can be a double-edged sword, though. It takes a few tries to learn, and if you mess up you can take off the trailer’s fender, to say nothing of damaging street signs and other cars on the road.
Dimension: 15800mm x 3000mm x 2500mm
Loading capacity(T): 50-150T
Axle: 13T/16T, FUWA / BPW / TITAN Brand
Rim: 8.0-20 or 900*22.5
Tire: 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension or air suspension
Spring leaf: 120(W)mmx16(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Tare weight: About 9.5-19T
Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.
Bottom Platform: 5mm thick, checkered plate
Hydraulic cylinder: 12KW diesel engine with hydraulic station
Ramp: spring or hydraulic type
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust
Shipping terms: Transported by the bulk carrier in an RORO or 40HQ container

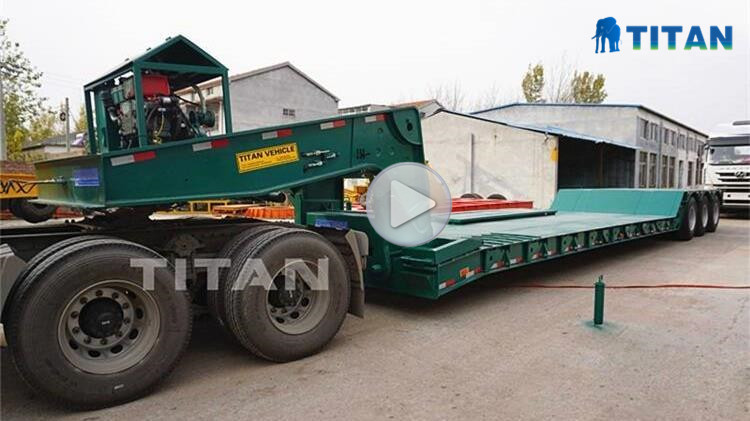

Through the video, you can know different types of tri excavator trailer for sale , 60ton lowboy excavator trailer for sale , removable gooseneck excavator trailer, etc.
Please click "TITAN Removable Gooseneck Trailer" to get detailed video!
Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
