The extendable side lifter trailer for sale in Papua New Guinea addresses the pain points of traditional container shipping, including reliance on external equipment, poor site adaptability, and low compatibility with various specifications. It is an ideal tool for point-to-point direct transport, multimodal transport, and efficient supply chain logistics.

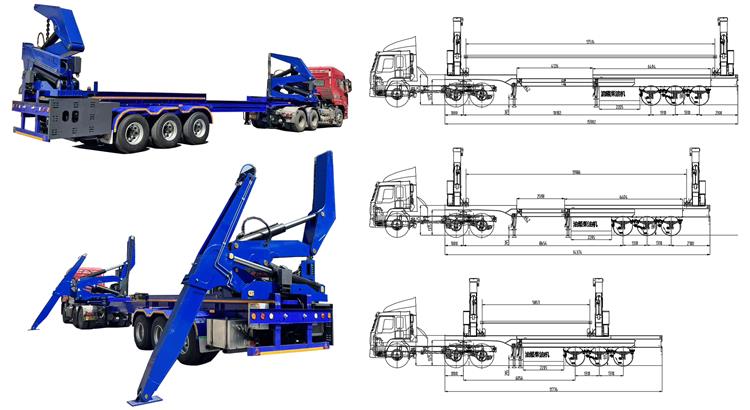

The extendable side lifter trailer for sale in Papua New Guinea is a specialized logistics equipment integrating container lifting and road transport. Its core design combines a hydraulic boom with a telescopic/extendable chassis, enabling autonomous container loading and unloading without external lifting equipment (such as reach stackers or gantry cranes). The chassis length can be flexibly adjusted to accommodate containers of different sizes.
The extendable trailer is primarily used for mixed transport of containers of various sizes. With its telescopic chassis and adjustable boom, the Papua New Guinea side lifter trailer easily handles the transport of containers of different lengths, such as 20-foot, 40-foot, and 45-foot, making it particularly suitable for logistics trunk lines with variable cargo dimensions. In mines, construction sites, farms, or areas with limited infrastructure, it can independently complete ground loading and unloading without cranes, forklifts, or unloading platforms.

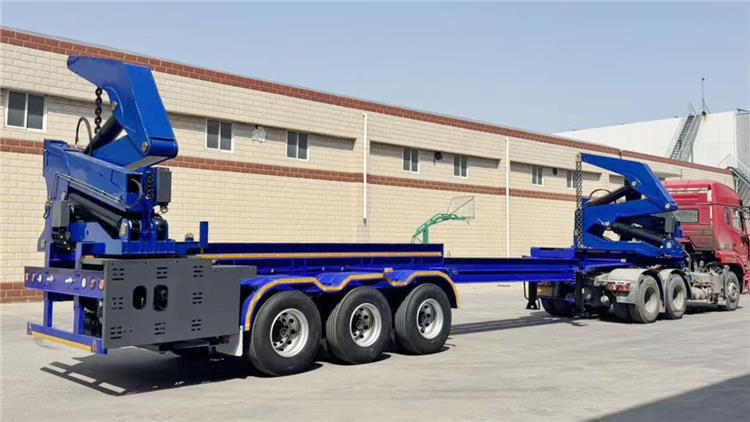

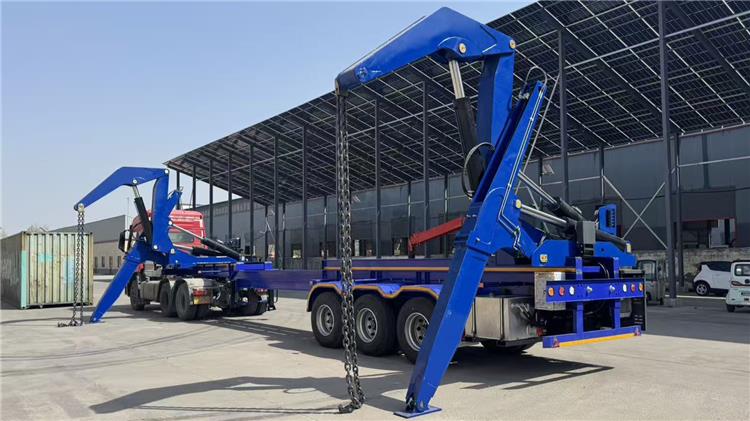

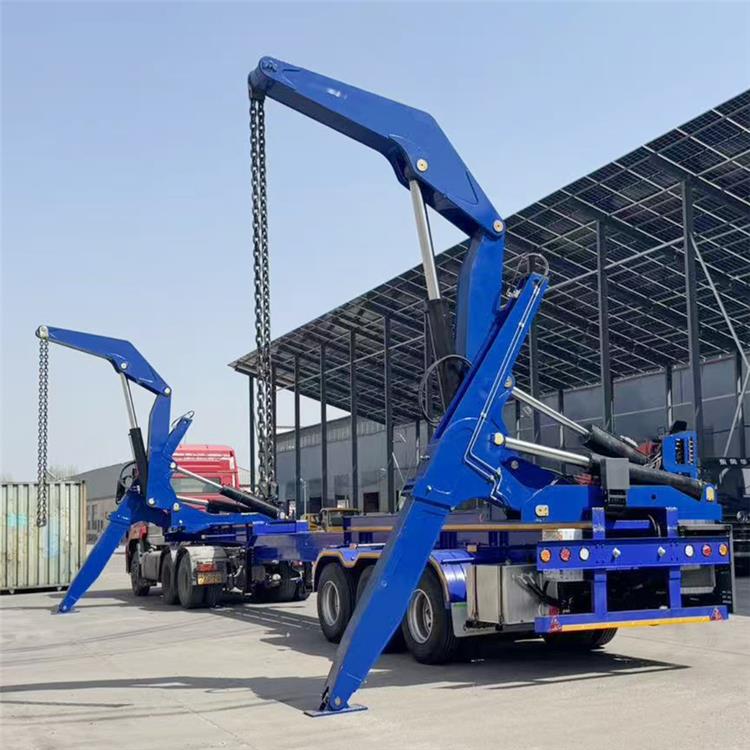

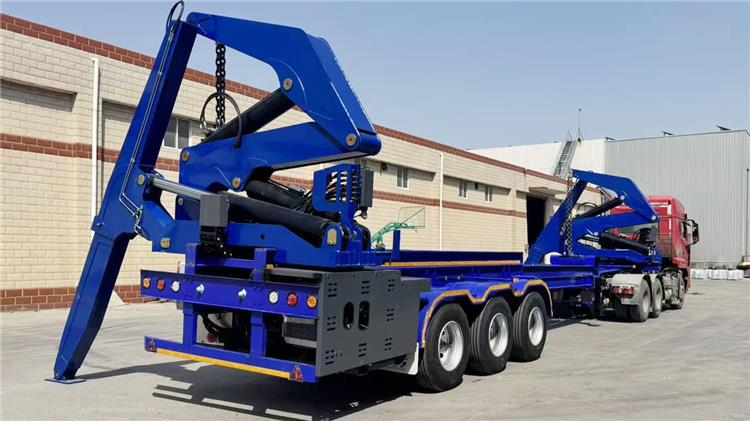

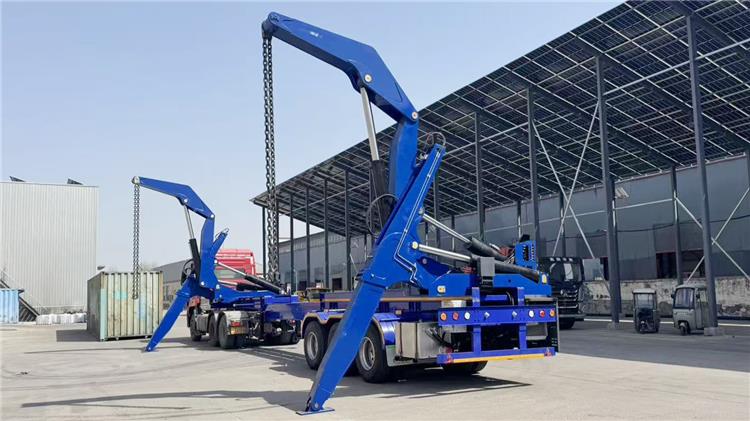

Extendable Side Lifter Trailer for Sale In Papua New Guinea
Extendable Side Lifter Trailer for Sale In Papua New Guinea
Extendable Side Lifter Trailer for Sale In Papua New Guinea
Extendable Side Lifter Trailer for Sale In Papua New Guinea

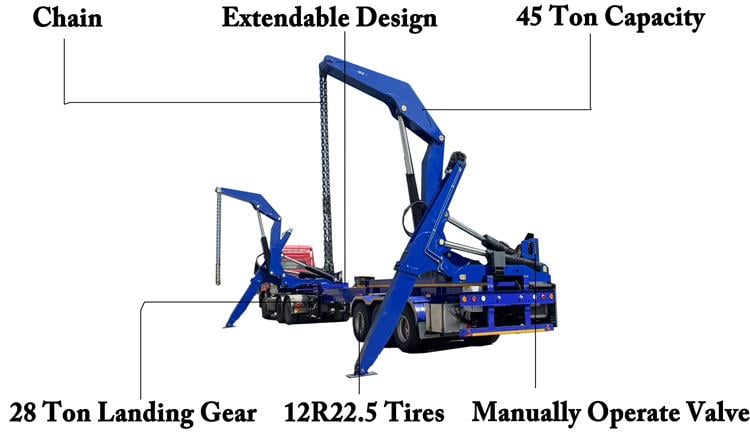

Loading capacity: 45 Ton
Load: 20 ft and 40 ft container
Power source: Diesel engine
Remote control: 1 unit
Chains: 2 chains+4 hooks
Dimensions: 14400*2500*4200mm
Axles: 3 axle*13 ton;16 tons brake lining
Tires: 12 pcs,12R22.5
Landing gear: FUWA
Braking system: WABCO Emergency valve
Suspension: Mechanical Suspension
Kingpin: 2 inch and 3.5 inch
The extendable trailer offers smooth, level lifting operations (2+2 point parallel lifting), significantly reducing the risks of tilting and vibration. It is widely used for handling fragile goods, chemical storage tanks (ISO Tanks), military equipment, and other high-risk or high-value cargo.
The side lifter trailer for sale in Papua New Guinea can pull single 20-foot, double 20-foot, 40-foot, and 45-foot containers. Safety and stability are ensured by the double booms, preventing swaying or tilting during single-hook or crane lifting. The main beam of the extendable trailer is made of high-strength steel and features a built-in hydraulic telescopic cylinder or mechanical tension locking mechanism.
The frame can be freely shortened or extended according to the container size; for example, shortening the body to improve maneuverability when transporting 20-foot containers and extending the body to meet load distribution requirements when transporting 45-foot containers.
The two hydraulic lifting booms of the side lifter trailer for sale in Papua New Guinea can move back and forth on the frame tracks using hydraulic power. While extending the chassis, the booms automatically lock at the corresponding container corner positions, ensuring balanced lifting. The extendable trailer is equipped with highly stable hydraulic support legs (such as straddle-type or folding outriggers). These extend and press against the ground during lifting to prevent the vehicle from tipping over.
The trailer also features a wireless remote control, allowing the driver to leave the cab and safely observe the entire lifting process from the optimal vantage point, achieving precise alignment and lifting without blind spots.
