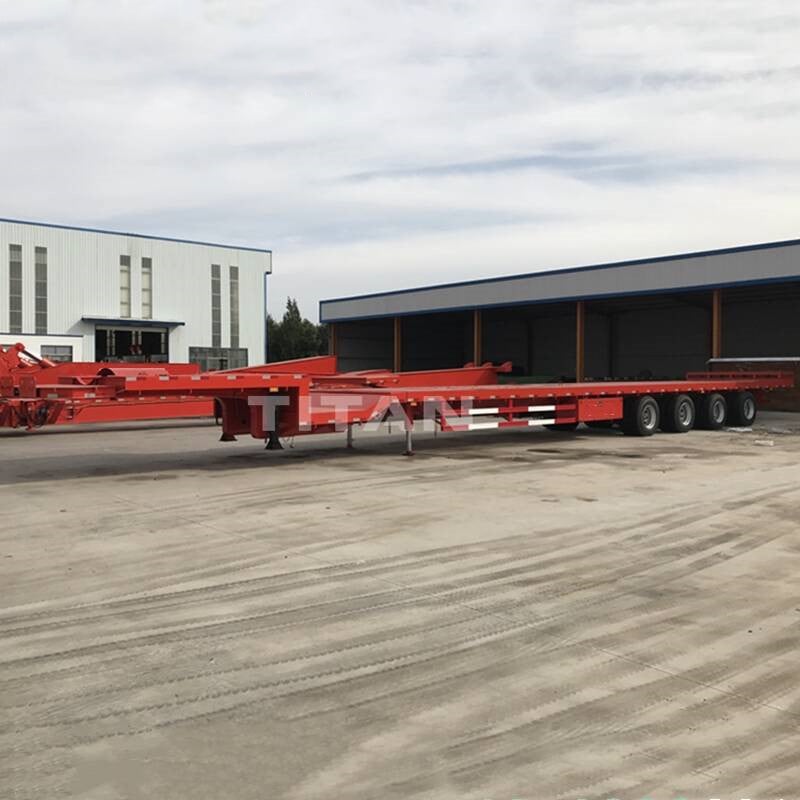

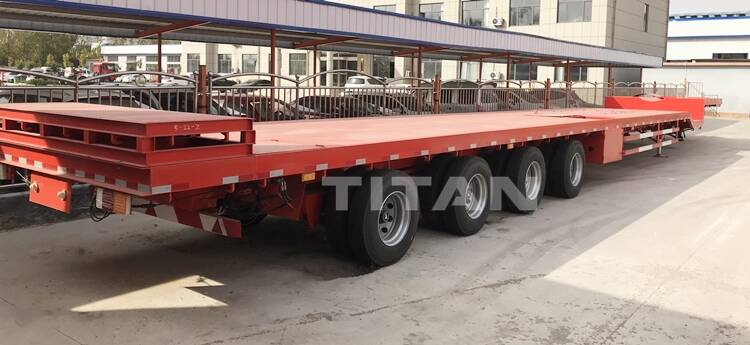

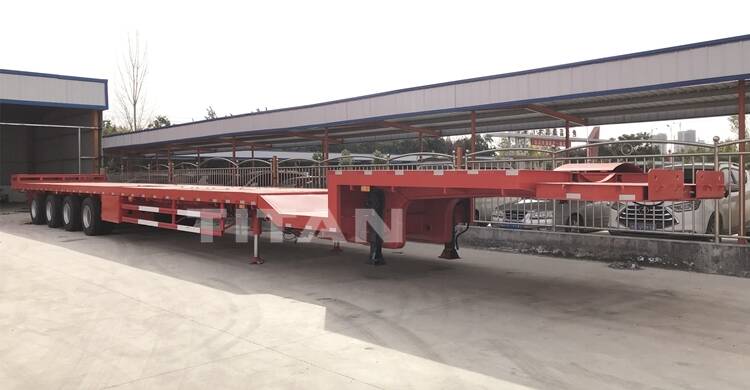

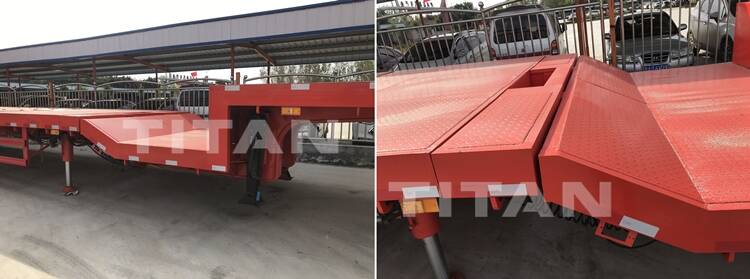

Extendable Trailer for Windmill Projects

Extendable Trailer for Windmill Projects Product Description:

Extendable telescopic beam/boom protects wind turbine rotor blade from any damages or distortions during logistic, it just performed like bracket holder of the rotor blade. Please go blade trailer if you need to know more info.

Sometimes we can use the extendable trailer to transport the windmill blades and transport other heavier and longer cargos.

As a manufacturer, we also produce a more robust version of the extendable telescopic beam. The unique design combines Goldhofer trailer hydraulic trailer, and the beam can also connect to other specialized trailers like Scheuerle trailer and Nicolas trailer. The beam has the function of connection between gooseneck and rear axles, also can bear weight on top of it.

Specification：

Brand: TITAN 58M 4 Axle Extendable Blades Wind Turbine Trailer

Dimension: 22,450mmX3120mmX 1580mm

Total length: 61,000mm after extension

Loading capacity: 90 Ton

Hydraulic power station: Diesel engine

Axle: 4  axle

Suspension: Hydraulic suspension.

Tyre: 16 units, Triangle brand

Braking system: WABCO emergency valve

King pin: 3.5 inch high tensile steel bolted type

Landing gear: JOST C200

Advantage:

1.Trailer's length from 22.25 meters extend to 50 meters

2.Transport the 45 meters to 80 meters Windmill Turbine Blade.

3.Loading capacity is up to 90 ton

4.Steerable axles, all wheels steering.

5.Highly robust frames and outstanding stability of extension beam.

6.Mechanical spring suspension, air suspension or hydraulic suspension is an option

7.Manual valve operation and wireless remote control.

Please click "TITAN Wind Blade Trailer" to get detailed video!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
