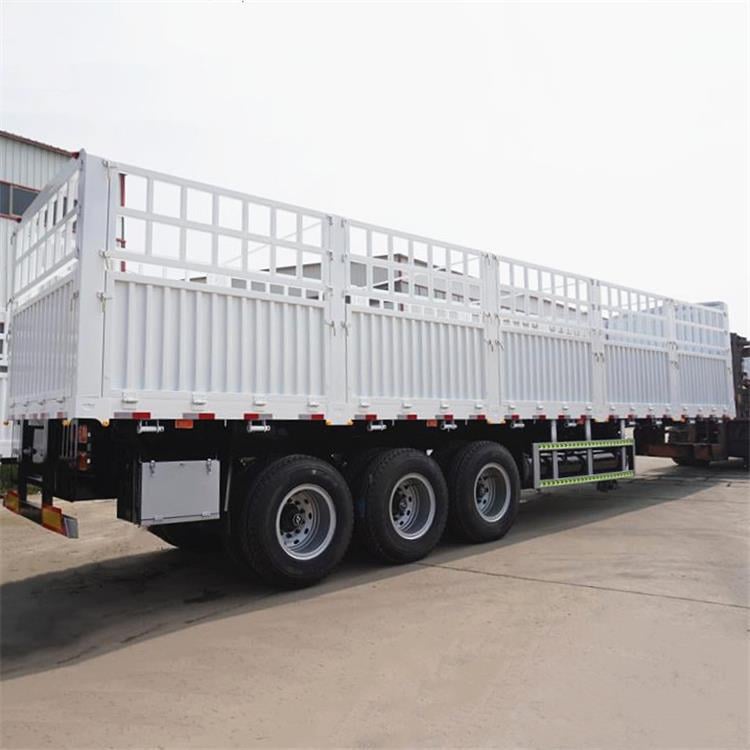

Tri Axle Stake Semi Trailer

Product Description：

Fence semi trailer was popular by logistics companies as its multipurpose application. It uses to load a wide range of products and materials, like sand, bags, poultry, etc. Also some bulk cargo, very widely used in the transportation industry.

TITAN cargo fence trailer deeply loved by foreign customers due to main material used high quality steel-Q345. It has high-strength,strong and sturdy features, stability and safety when operating in harsh road conditions.

Fence flatbed trailer can be used to load the containers after adopt the container locks for it.

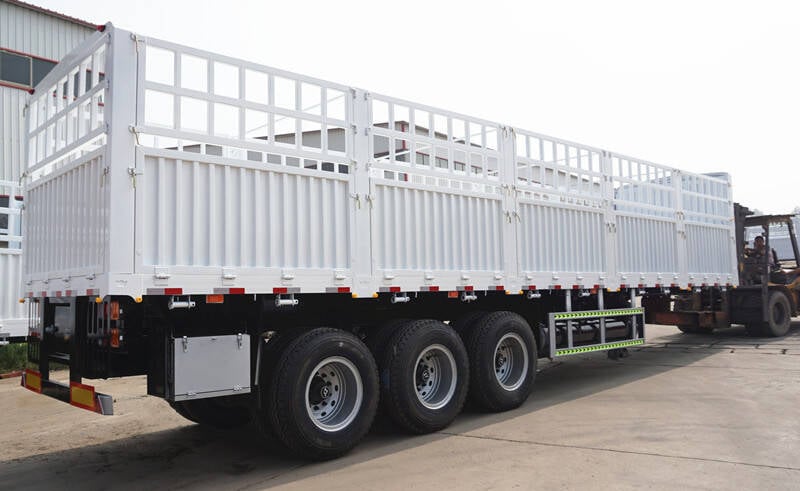

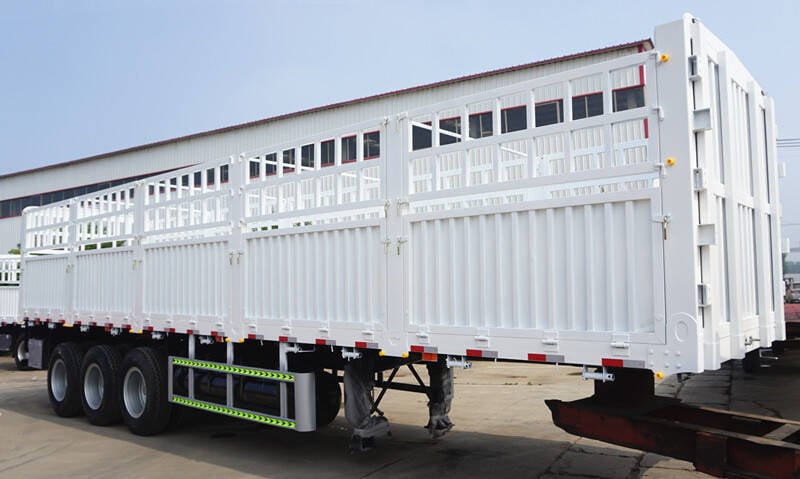

Fudeng Fence Semi Trailer | Tri Axle Stake Semi Trailer | 60 Tons Fence Cargo Truck Trailer for Sale

Fudeng Fence Semi Trailer | Tri Axle Stake Semi Trailer | 60 Tons Fence Cargo Truck Trailer for Sale

Fudeng Fence Semi Trailer | Tri Axle Stake Semi Trailer | 60 Tons Fence Cargo Truck Trailer for Sale

Specification:

Dimension(mm): 13000x2600x3420mm

Trailer Sides: 2200mm

Loading capacity(ton): ≤60T

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ Huajing Brand

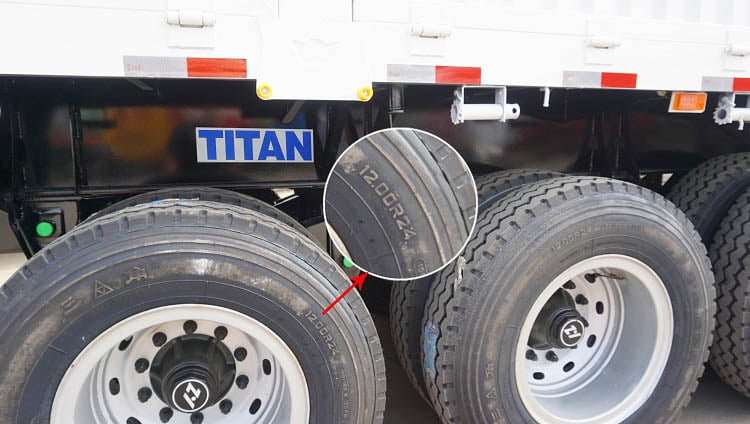

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension(China brand or BPW brand)

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Bottom Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Through this video, you can learn about different types of fence semi-trailers, as well as the process, testing, packaging and customer feedback, etc.

Please click "TITAN Fence Trailer" to get detailed video!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
