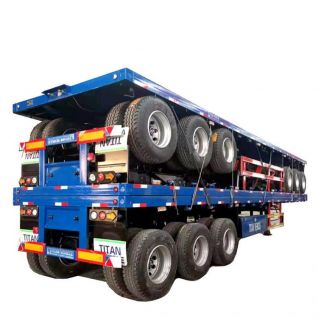

Flat Deck Superlink Trailer

Product Description:

Superlink flat deck trailer consists of one 20ft flatbed semi trailer and one 40ft flatbed semi trailer. Its total loading capacity could up to 70 tons.

For the super link flatbed trailer is populaized because of its flexibility. Each of the trailers can operate independently and increase the utilization coefficient of the tractor truck.

Specification:

Material: High Strength steel Q345

The front trailer size: 9800*2500*1500mm

The rear trailer size: 12500 mm*2500*1500mm

Loading capacity(ton): ≤45T

Axles: 4 units, 13T/16T ,FUWA/ BPW/ Huajing Brand

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension(Germany or America type) or Air suspension(China brand or BPW brand)

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
