100 Ton Folding Gooseneck Trailer

Folding Neck Lowboy for Sale:

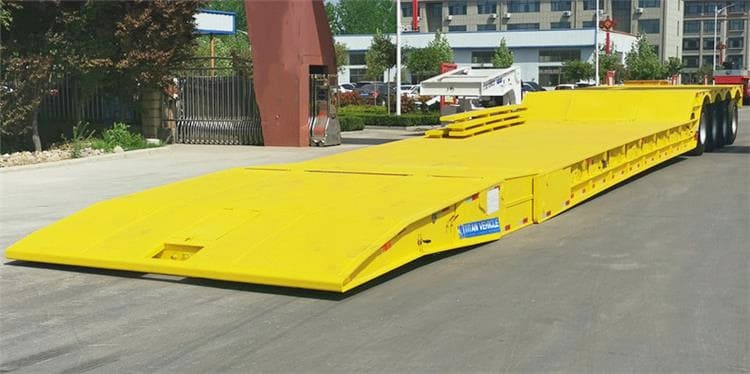

When unhooking from the prime mover, the folding neck lowboy trailers for sale’s neck could be folded to ground as a shallow slope for crawler crane and other machines to drive on.

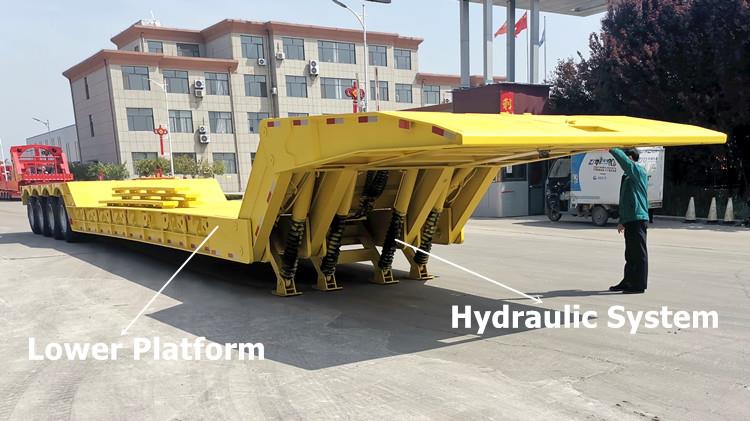

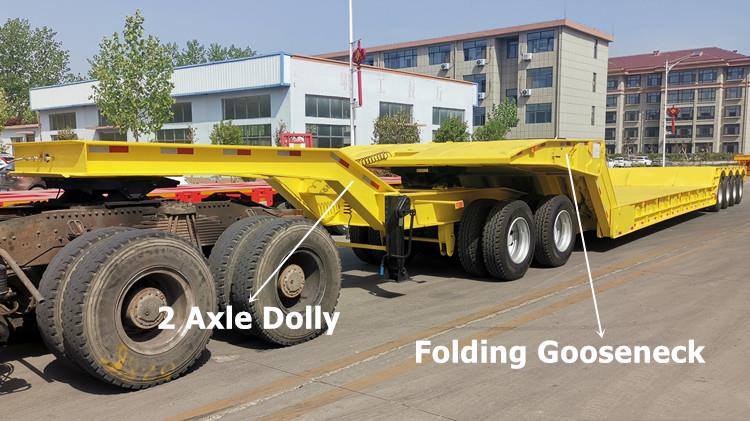

The gooseneck of this folding gooseneck trailer for sale is a design with a hydraulic folding structure. When the structure folded, it’s a gooseneck to connect the folding gooseneck trailer for sale with the prime mover. When it unfolded, it’s will touch the ground as a shallow slope for cargos loading. Compare to rear ramps, this folding neck lowboy trailers for sale is shallow and stable, could effective solutions for cargo loading.

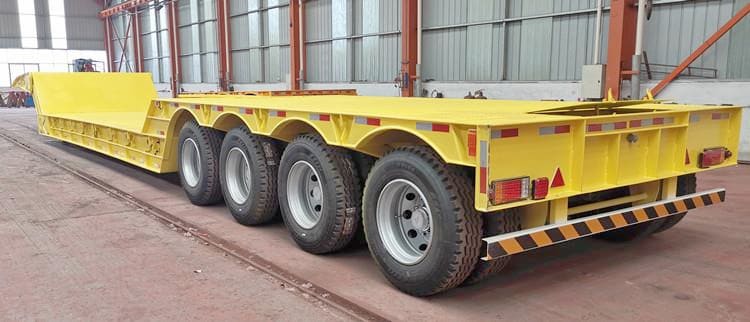

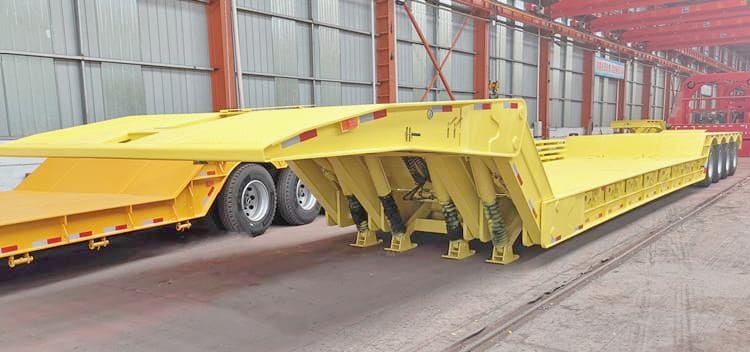

4 Axle 100 Ton Folding Neck Lowboy Gooseneck Trailer for Sale

4 Axle 100 Ton Folding Neck Lowboy Gooseneck Trailer for Sale

4 Axle 100 Ton Folding Neck Lowboy Gooseneck Trailer for Sale

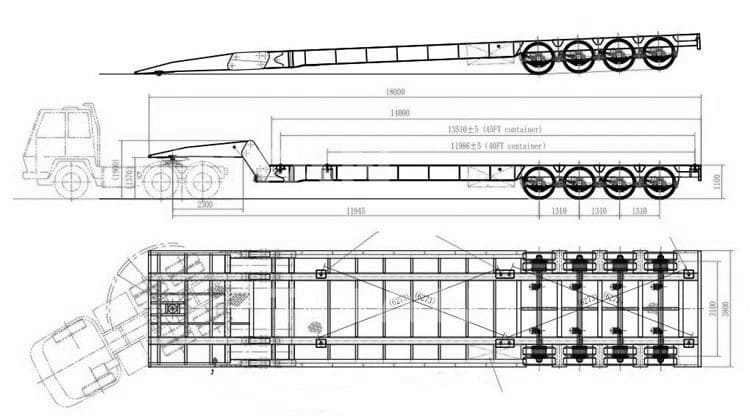

Specification of folding gooseneck trailer:

Dimension: 18000mm x 3800mm x 1800mm

Working platform: 14000*3800MM

Loading capacity: 100 TONS.4 AXLES,16TONS.

Gooseneck: hydraulic folding gooseneck.

Side hook for chain or belt

Checkered plate with 20 mm squre bar on ramps

Twist locks :6 units for 40/45 ft container

Folding gooseneck trailer for sale axle: 4 Axle

Tire: 16 units, 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension or air suspension

Spring leaf: 120(W)mmx16(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Tare weight: About 9.5-19T

Hydraulic cylinder: 12KW diesel engine with hydraulic station

Ramp: spring or hydraulic type

Folding neck lowboy for sale ABS: Optional

Folding neck lowboy trailers for sale valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Folding gooseneck trailer for sale voltage: 24V

Folding neck lowboy for saletool box: 1 set

Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust

Through the video, you can know different types of lowboy gooseneck trailer, as well as the process, testing, packaging and customer feedback, etc.

Please click "TITAN Removable Gooseneck Trailer" to get detailed video!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
