4 Axle 100 Ton Lowbed Trailer
4 Axle 100 Ton Lowbed Trailer

4 Axle 100 Ton Lowbed Trailer

12300 USD

Price: 12300USD                We offers lowbed semi trailer designed to carry 30 tons, 40 tons, 60 tons, 80 tons, 100 tons, 120 tons, 150tons. It's main cargo platform is low, which ensures the stability of transportation.

SKU: 4 Axle 100 Ton Low bed Trailer
GTIN: 06975766110529
MPN: TITAN9201010
Brand: TITAN

100 Ton Lowbed Trailer Description:

4 axle lowbed semi trailer use high strength steel material to ensure the capacity, the load can be up to 100 to 120 ton payload.

We adopt famous brand parts, like WABCO braking valve, JOST legs, FUWA, BPW axles. This’ll ensure the long service life of the trailers.

4 Axle 120T Lowbed Semi Trailer for Sale

Fudeng 4 Axle 100 Ton Lowbed Trailer for Sale in Lagos - China Fudeng Automobile Co,.LTD

4 Axle 100T Lowbed Semi Trailer for Sale - TITAN Vehicle

Fudeng 4 Axle 100 Ton Lowbed Trailer for Sale in Lagos - China Fudeng Automobile Co,.LTD

4 Axle 100T Lowbed Semi Trailer for Sale - TITAN Vehicle

Fudeng 4 Axle 100 Ton Lowbed Trailer for Sale in Lagos - China Fudeng Automobile Co,.LTD



Specification:

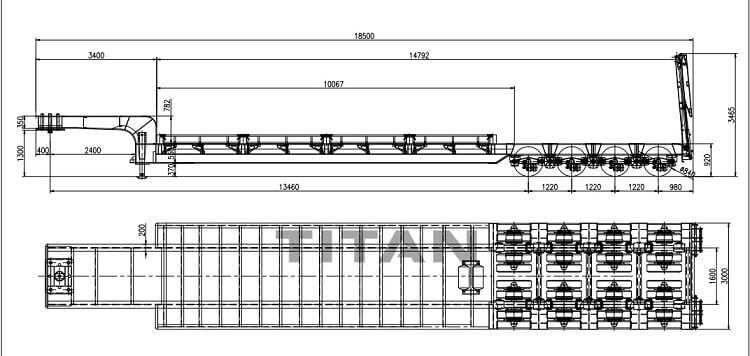

Overall dimension: 15800mm * 3000mm *3400mm

Loading capacity(T): 100T

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20

Tire: 11.00R20

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.

Bottom Platform: 5mm thick checkered plate

Ramp: hydraulic type

Gooseneck: Optional

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Fudeng 4 Axle 100 Ton Lowbed Trailer for Sale in Lagos - China Fudeng Automobile Co,.LTD

Advantage:

1. Main beam adopts HG high strength steel, with high loading capacity.

2. Side beam adopt “H” steel, the durable design avoid the side beam to have the deformation.

3. The loading ramps is made by high strength steel, with high loading capacity, will not happen to the deformation when carry heavy equipment.

4. polyurethane paint, with long service lift, and avoid the vehicle get rust.

5. World famous brand spare part, ensure high quality and save costs.

4 Axle 100T Lowbed Semi Trailer for Sale - TITAN Vehicle

Fudeng 4 Axle 100 Ton Lowbed Trailer for Sale in Lagos - China Fudeng Automobile Co,.LTD

4 Axle 100 Ton Lowbed Semi Trailer details display video

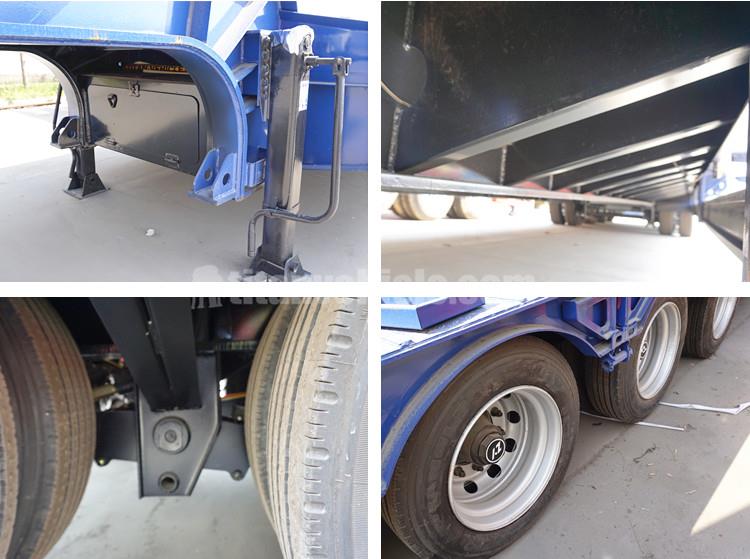

4 Axle 100 Ton Lowbed Semi Trailer details



Through this video below, you can learn about different types of lowbed semi-trailers, as well as the process, testing, packaging and customer feedback, etc.

Video of Lowbed Semi Trailer for Sale



Please click "TITAN Lowbed Trailer" to get detailed video!



Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
