Grain Superlink Trailer

Product Description：

Grain superlink trailer is another type of side wall grain trailer. The main types of cargo transported by this semi-trailer are bulk cargo such as grain.

According your needs, wo can choose BPW axle or FUWA axle,air suspension or leaf spring suspension. We adopt 6 big double air chamber.

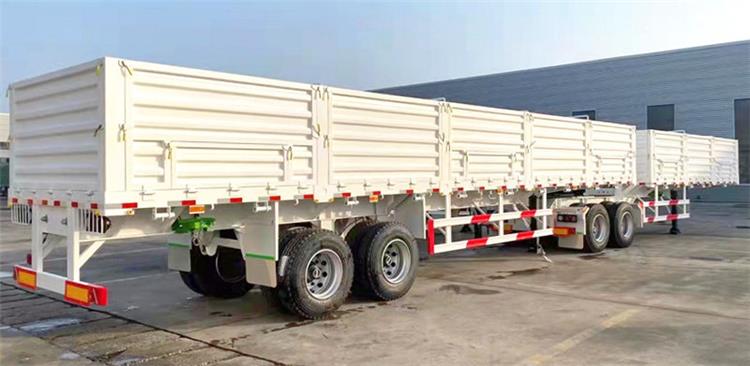

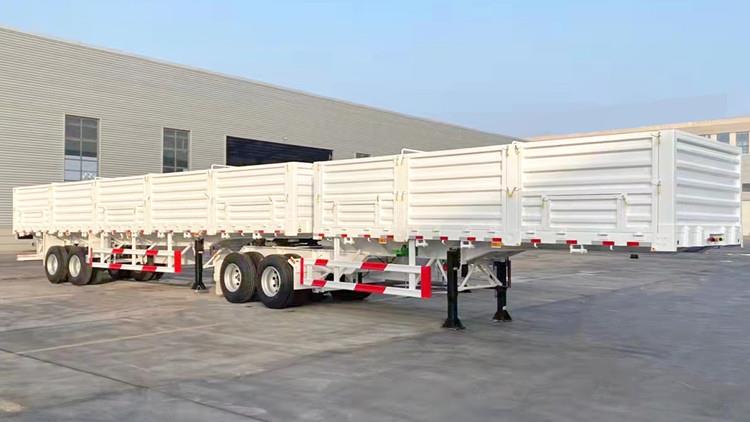

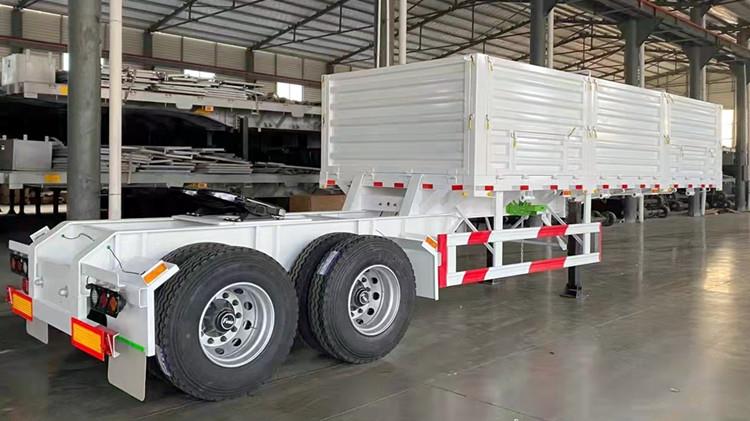

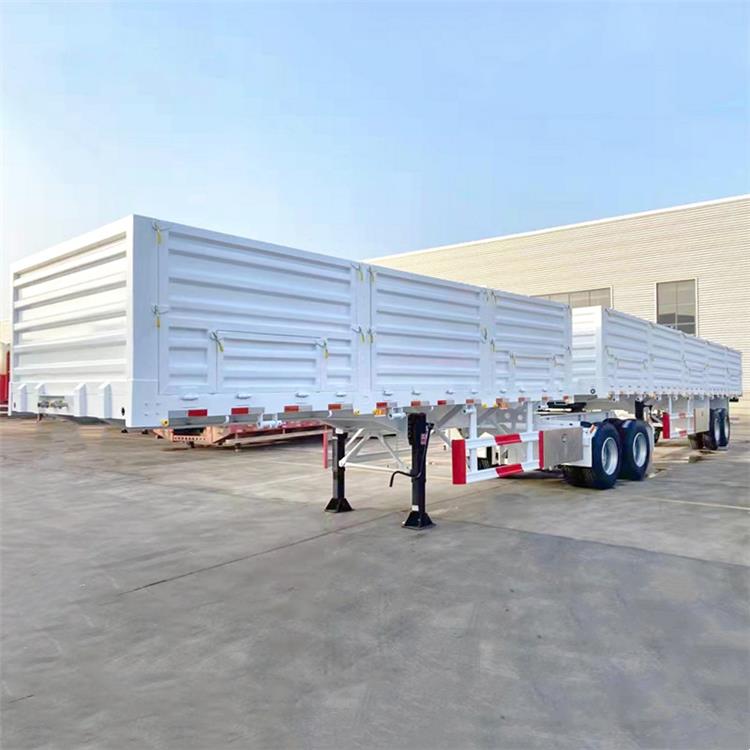

Grain Superlink Trailer with Side Wall for Sale - TITAN Vehicle

Grain Superlink Trailer with Side Wall for Sale - TITAN Vehicle

Specification：

Model: Grain Superlink Trailer with Side Wall

Overall dimension: 15980*2500*2350mm

Loading capacity(ton): ≤60T

Axles: 4 axles, 13T/16T ,FUWA/ BPW/ Huajing Brand

Tire: 16 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16mm or 18mm steel channel

Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve

ABS: Optional

Light: LED light

Voltage: 24V

Socket(Receptacle): 7-pin Socket

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
