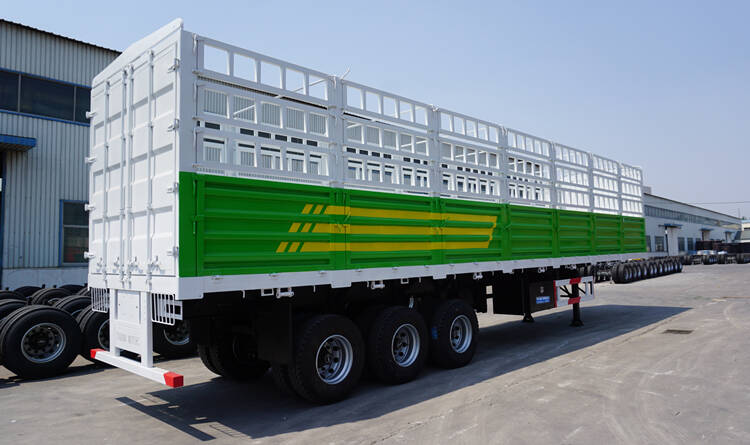

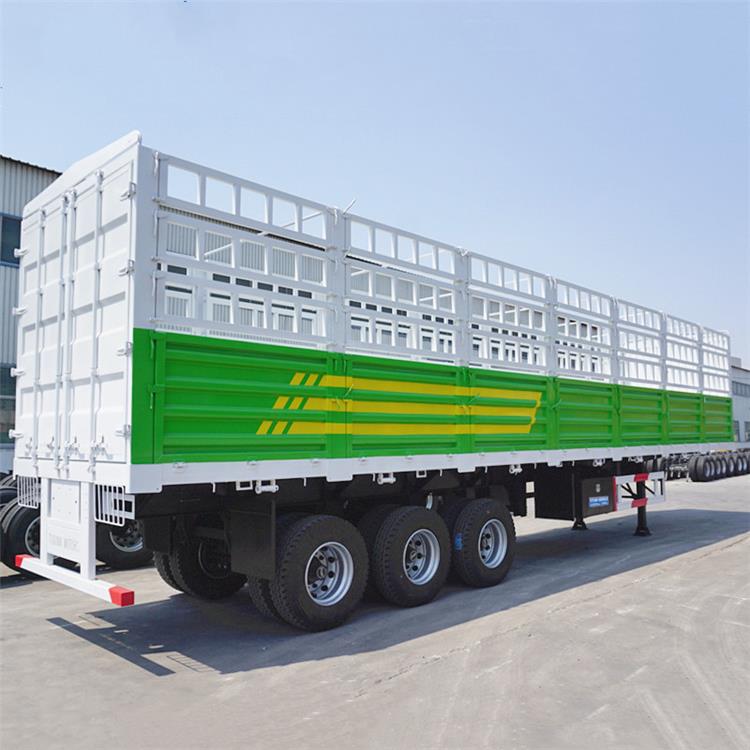

Grid Position Semi Trailer
Grid Position Semi Trailer

Grid Position Semi Trailer

10000 USD

Different Parameters, Different Price. Price Reference Only.



Grid position semi trailer with detachable long sidewall has a fence structure design. It can be added with a container lock to transport the container.

SKU: Grid Position Semi Trailer
GTIN: 06975766111748
MPN: TITAN9405016
Brand: TITAN

Product Description:

The grid position semi trailer with detachable long sidewall use to load a wide range of bulk cargo, like sand, bags, poultry etc. Fence semi trailer is very widely used in the transportation industry. Suitable for the mid/long distance transportation of the mid/heavy duty bulk cargo. The stake semi trailer can be added with a container turn lock to transport the container.

China semi trailer with fence structure design. TITAN have 2/3/4 axles, and load capacity has 30/40/60/80/100 tons for your choice. Customizable color and side wall height.

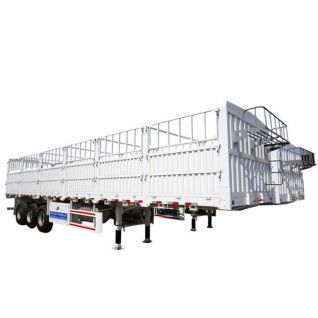

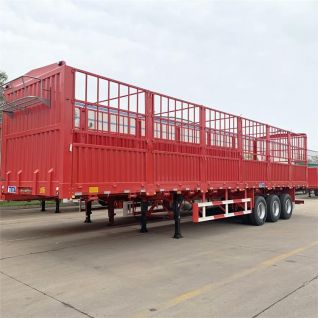

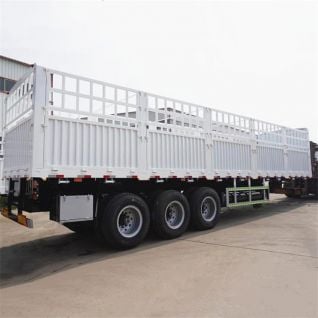

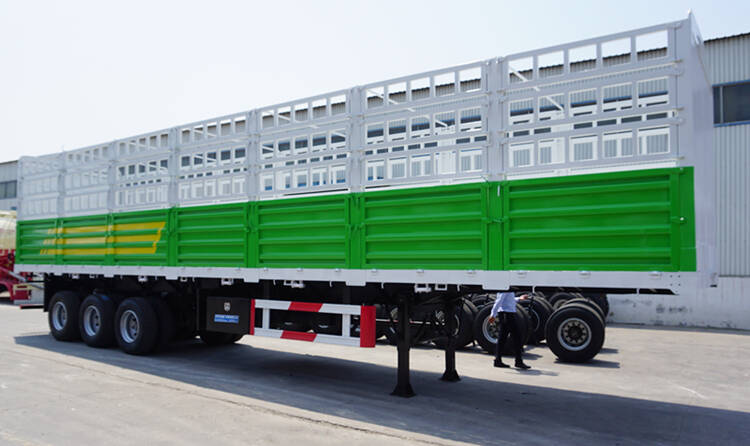

Grid Position Semi Trailer with Fence for Sale in Sudan

Grid Position Semi Trailer with Fence for Sale in Sudan

Grid Position Semi Trailer with Fence for Sale in Sudan



Specification:

Dimension(mm): 13000x2600x3550mm

Trailer Sides: 2000mm

Loading capacity(ton): ≤60T

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ Huajing Brand

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical, Bogie, Airbag suspension(China brand or BPW brand)

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Bottom Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats



Through this video, you can learn about different types of fence semi-trailers, as well as the process, testing, packaging and customer feedback, etc.



Please click "TITAN Fence Trailer" to get detailed video!



Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!

Review

Joseph Dieumais - 2021-06-19T11:06:09+0800
I have been using the grid position semi trailer for a while, and this trailer is very strong and durable. My friend said that he would also like to buy one.
