Different Parameters, Different Price. Price Reference Only.
There are many tonnages of Low Loader Truck Trailer we can provide, such as 2/3/4/5/6 axle lowbed trailer, 30,40,60,80,100,120,150,200 ton low bed trailer for sale.

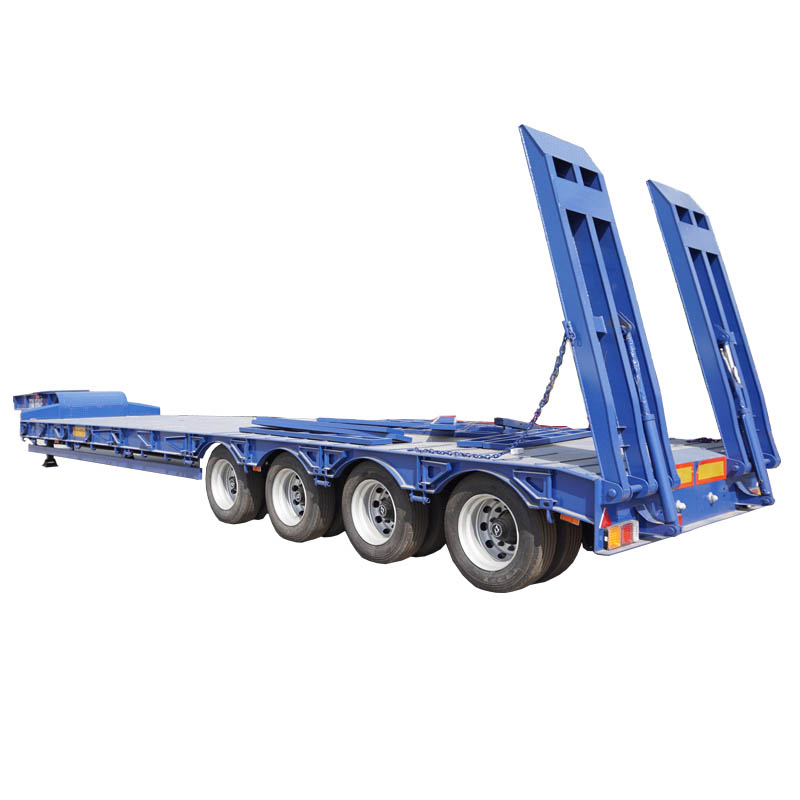

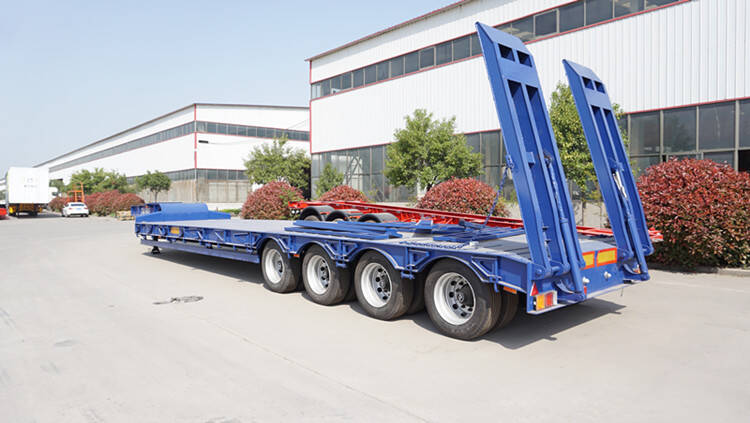

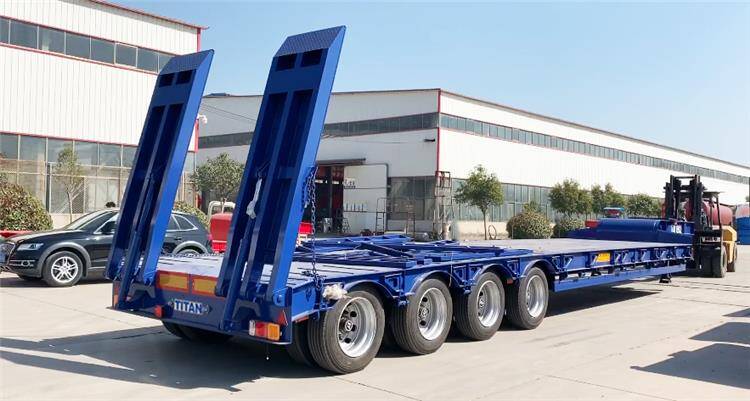

TITAN 4 axle 100 Ton Low Loader Trailer is widely used, mainly for medium and long-distance freight transportation. Its frame is a beam-through structure, and the longitudinal beam adopts a straight and live gooseneck type.
There are many tonnages of Low Bed Trailer for sale we can provide, such as 2/3/4/5/6 axle lowbed trailer, 30,40,60,80,100,120,150,200 ton low bed trailer for sale in Nigeria. We can provide customized services according to the actual situation of transportation.
How Much Is 4 Axle Low Loader Truck Trailer Price in Negria Lagos
How Much Is 4 Axle Low Loader Truck Trailer Price in Negria Lagos
How Much Is 4 Axle Low Loader Truck Trailer Price in Negria Lagos
Overall dimension: 15800mm * 3000mm *3400mm
Loading capacity(T): 80-100 Ton
Axle: 16T, FUWA / BPW / TITAN Brand
Rim: 8.0-20
Tire: 11.00R20
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.
Bottom Platform: 5mm thick checkered plate
Ramp: Spring ramp
Gooseneck: Optional
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
1. Main beam adopts HG60 high strength steel, with high loading capacity.
2. Side beam adopt “H” shape design, the durable design avoid the side beam having the deformation.
3. The loading ramps is made by high strength steel, with high loading capacity, the deformation will not happen when carry heavy equipment.
4. polyurethane paint, with long service life, and avoid the vehicle get rust.
5. World famous brand spare part, ensure high quality and save costs.

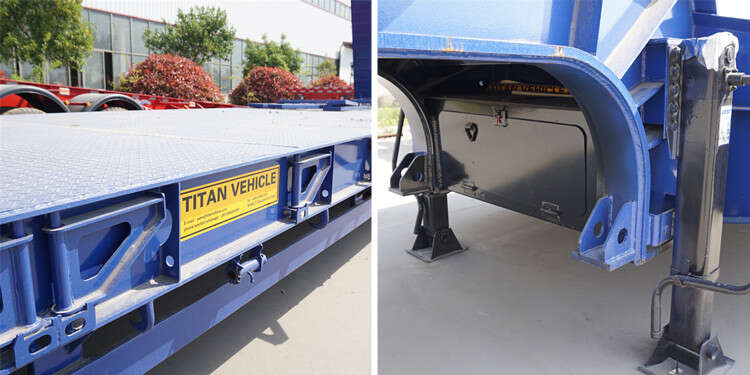

4 Axle 100 Ton Lowbed Semi Trailer details display video
