120 Ton Hydraulic Detachable Neck Trailer

Detachable lowboy trailer for sale:

The detachable neck lowboy trailer for sale is mainly separated or hooked by manually operating the hydraulic device mounted on the goose head, so as to reach the construction machinery from the front of the detach gooseneck trailer.

This kind of detachable gooseneck trailer for sale is mainly suitable for the transportation of large construction machinery with small climbing ability. It solves the shortcomings of the current ladder slope angle is too large and poor passability existing in the rear loading and unloading of the lowbed trailer.

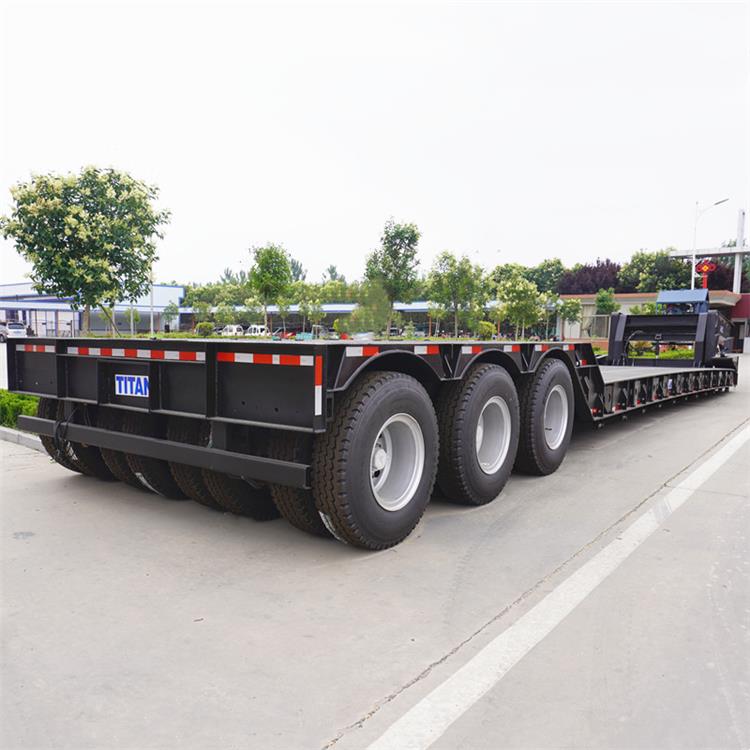

Hydraulic Detachable Neck 120T Gooseneck Lowboy Trailer for Sale

Hydraulic Detachable Neck 120T Gooseneck Lowboy Trailer for Sale

Specification of detachable neck trailer:

Dimension: 16250mm x 3400mm x 2500mm

Loading capacity(T): 120T

Axle: 3 lines 6 axles, 13T/16T, FUWA / BPW / TITAN Brand

Tire: 24 units, 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension

Spring leaf: 120(W)mmx16(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

Tare weight: About 9.5-19T

Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.

Bottom Platform: 5mm thick, checkered plate

Hydraulic cylinder: 12KW diesel engine with hydraulic station

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust

Shipping terms: Transported by the bulk carrier in an RORO or 40HQ container

Package of hydraulic lowboy trailer:

After the production of all detachable lowboy trailer for sale, pressure tests will be performed.

To prevent the detach gooseneck trailer paint from being corroded by seawater, we spray a layer of wax on the surface of the hydraulic detachable gooseneck lowboy trailer before shipping, and then seal it with a waterproof rain cloth.
