Hydraulic Drop Deck Trailer
Hydraulic Drop Deck Trailer

Hydraulic Drop Deck Trailer

12800 USD

Different Parameters, Different Price. Price Reference Only.



Hydraulic Drop Deck Trailer is widely used in heavy machine transportation. we have different types of drop deck trailer.

SKU: Hydraulic Drop Deck Trailer
MPN: TITAN9403TDP023
Brand: TITAN

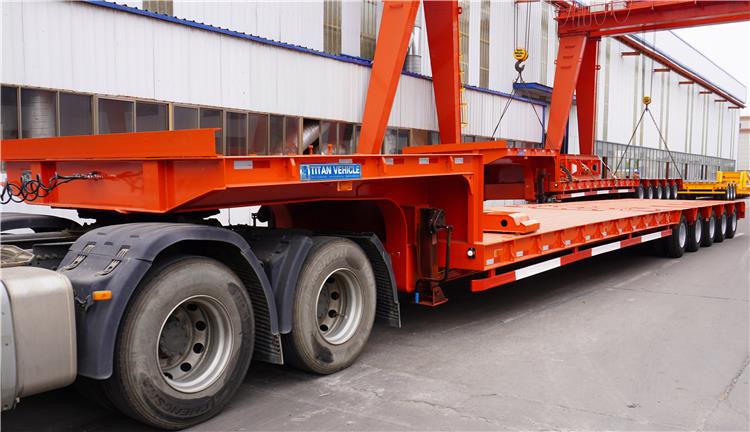

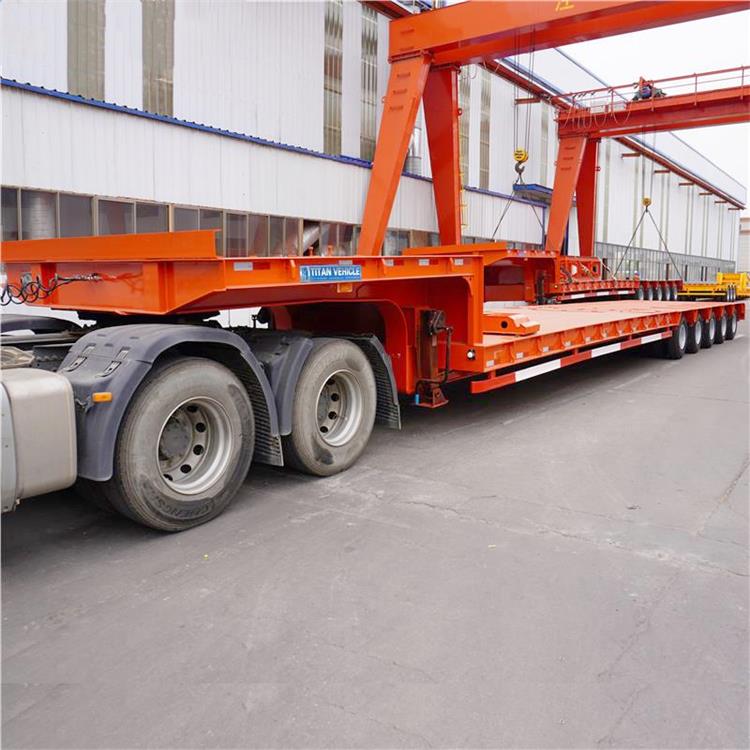

Hydraulic Drop Deck Trailer Product description:

Hydraulic Drop Deck Trailer is widely used in heavy machine transportation. The Stepped Trailer has all the same versatility as a flatbed trailer but has a lowered deck to accommodate for a taller cargo height. This gives it an extra boost in the height that it can securely transport.

TITAN Hydraulic Drop Deck Trailer can have one step, where the deck drops and stays flat until the end of the trailer, or a double drop, where the deck drops below the axle height and steps back up over the axles at the end of the hydraulic drop Deck Trailer.

Hydraulic Drop Deck Trailer for Sale in Zimbabwe

Hydraulic Drop Deck Trailer for Sale in Zimbabwe

Hydraulic Drop Deck Trailer for Sale in Zimbabwe



Hydraulic Drop Deck Trailer Specification:

Overall dimension: 13000mm * 3000mm *3400mm

Loading capacity(T): 40-100T

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20

Tire: 11.00R20

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.

Bottom Platform: 5mm thick checkered plate

Ramp: Spring ramp

Gooseneck: Optional

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)



Through this videos, you can learn about different types of lowbed semi-trailers, as well as the process, testing, packaging and customer feedback, etc.



3 Axle 80 Ton Low Bed Truck



Please click "TITAN Lowbed Trailer" to get detailed video!



Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!

Review

Maung Aye - 2021-06-18T17:06:42+0800
The sales person, Jacky was very knowledgeable and helpful in answering all my questions and concerns. The quality of high strength steel material is top notch. This trailer is very good.
