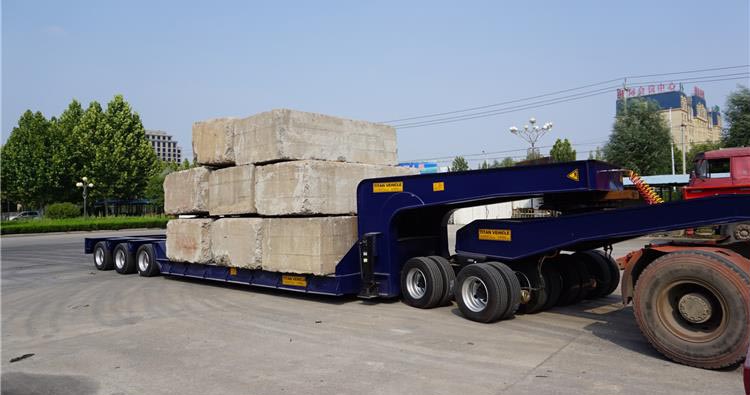

100 Ton Lowbed Truck Trailer

Product description:

That durable and stronger construction ensure the Lowbed Truck loading capacity, and also improve its capacity to twisting forces, shock, bump, and meet load requirements on bad road condition.

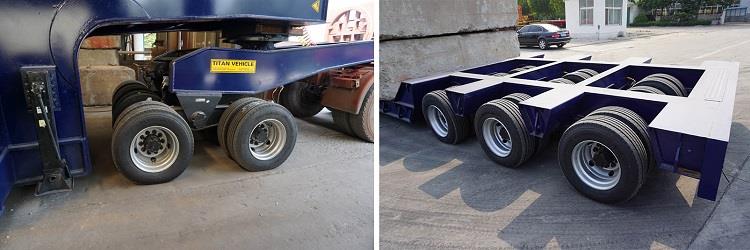

All of TITAN Lowbed Truck trailer for Sale is tested to ensure that our heavy load trailer is free of problems.  All Lowbed Truck for Sale with Dolly Trailer is tested for carrying capacity after production is finished.TITAN has dedicated technical staff to guide the operation.

Specification：

Overall dimension: 13000mm * 3000mm *3400mm

Loading capacity(T): 40-100T

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20

Tire: 11.00R20

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.

Bottom Platform: 5mm thick checkered plate

Ramp: hydraulic type

Gooseneck: Optional

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)
