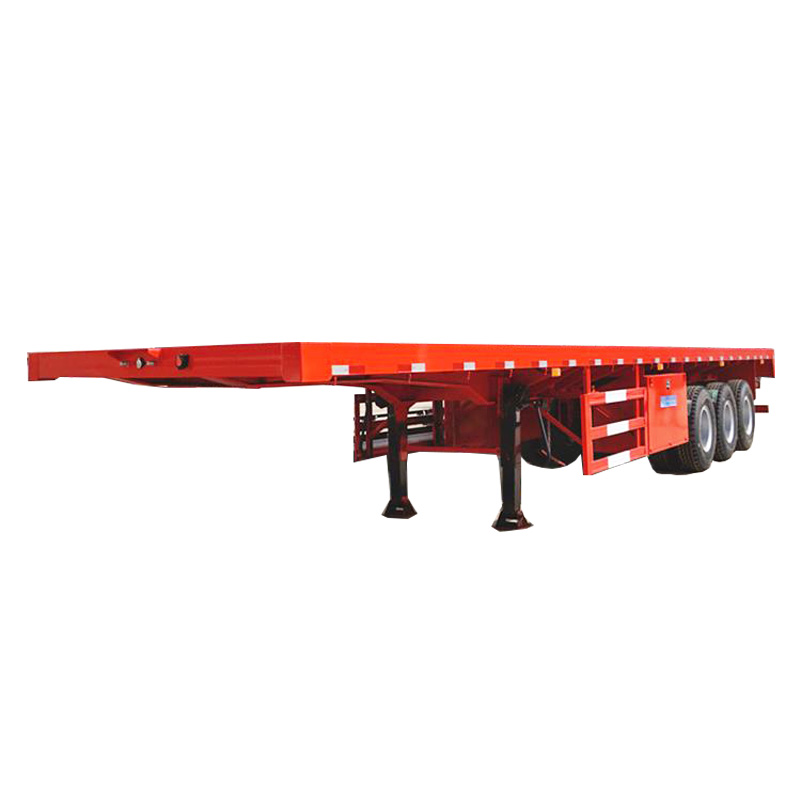

3 Axle 40ft Flatbed Trailer
3 Axle 40ft Flatbed Trailer

3 Axle 40ft Flatbed Trailer

9800 USD

Different Parameters, Different Price. Price Reference Only.



TITAN 3 axles 40ft flatbed trailer for sale is the most popular model. TITAN can also offer the 20ft/45ft/48ft/53ft, 2/3/4 axles, the capacity from 60-100 tons.

SKU: 3 Axle 40ft Flatbed Trailer
GTIN: 06975766110239
MPN: TITAN9404001
Brand: TITAN

Flatbed for Sale in Nigeria Description:

Flatbed truck trailer for sale is a kind of trailer whose design is suitably made to carry bulk cargo and containers between shipping facilities and terminals. By simple definition, this is a long flat platform of either 20ft, 40ft, 48ft or 53ft length. Among them, the 3 axle 40ft flatbed truck trailer is the most popular model.

TITAN Vehicle adopts high strength steel material to manufacture the 3 axle 40ft flatbed trailer, it can make the flatbed trailer have a higher loading capacity and a longer service life. To make sure the service life of the semi trailers, all the spare parts we adopt are World Famous Brand.

Prices of 3 Axle Flatbed Trailer for Sale in Nigeria Lagos

Prices of 3 Axle Flatbed Trailer for Sale in Nigeria Lagos

Prices of 3 Axle Flatbed Trailer for Sale in Nigeria Lagos

Prices of 3 Axle Flatbed Trailer for Sale in Nigeria Lagos

Prices of 3 Axle Flatbed Trailer for Sale in Nigeria Lagos

Prices of 3 Axle Flatbed Trailer for Sale in Nigeria Lagos



3 Axle Flatbed Trailer Specification:

Dimension(mm): 12500x2500x1550mm

Loading capacity(ton): ≤60T

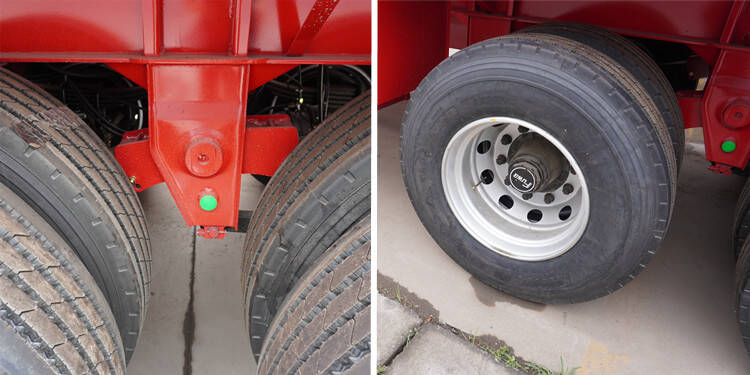

Axles: 3 axles, 16T ,FUWA/ BPW/ Huajing Brand

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension(Germany or America type)

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats



Flatbed Trailer Advantages:

1.TITAN Vehicle uses automatic arc-submerging welding method to weld the main beam, so the main beam is more stronger and more durable. Also the trailers floor is checker plate, this will keep the other bulk cargo more stable.

2.Durable mechanical widened spring suspension, make sure the stable and safety.

3.Hight Quality container locks, make sure the stable and safety of the loads. The size of the container trailer loading area is determined according to the standard container size. A twist lock device for fixing the container is provided at positions corresponding to the four corners of the bottom of the container.



Through this videos, you can learn about different types of flatbed semi-trailers, as well as the process, testing, packaging and customer feedback, etc.





3 axle 40ft container flatbed trailer details display video



Flatbed semi trailer



Please click "TITAN Flatbed Trailer" to get detailed video!



Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!





Review

MUSLIM from Tanzania - 2022-04-18T15:04:46+0800
Now after only a few months, I'm ready for TITAN to buy another 3 axle flatbed trailer. To add, customer service is the best. Never have I had a better experience.
muzanga from Congo - 2022-03-31T17:03:10+0800
I saw a 3 axle flatbed in Congo and I found they bought from TITAN.So I bought one from TITAN too. I have to say that they did a really good job because the loading ability is so strong.
