Tri Axle 80 Ton Lowboy Trailers

80 Ton Lowboy Trailers for Sale:

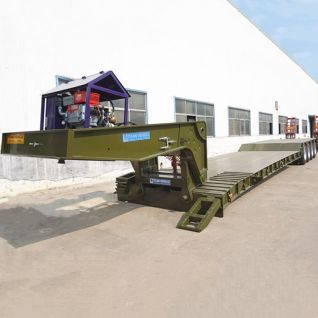

TITAN tri axle lowboy trailers for sale can use the lifting cylinder installed on the vehicle to support the front part of the semi trailer body on the ground. After the tractor is separated from the saddle of the 80 ton lowboy trailers for sale, the tractor is driven away from the semi trailer. When the tractor leaves, the front part of the removable gooseneck trailer for sale can be placed on the ground through the lifting cylinder, and the lifting cylinder can be continuously manipulated to convert the gooseneck platform into a semi trailer ladder, thereby solving the problem of the large rear part of the removable gooseneck trailer for sale.

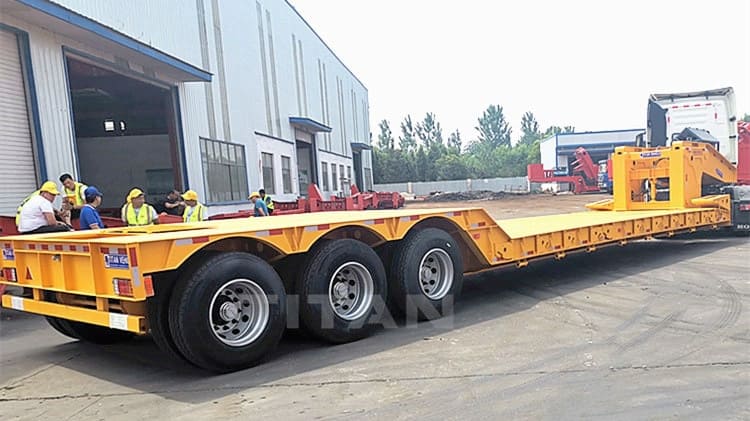

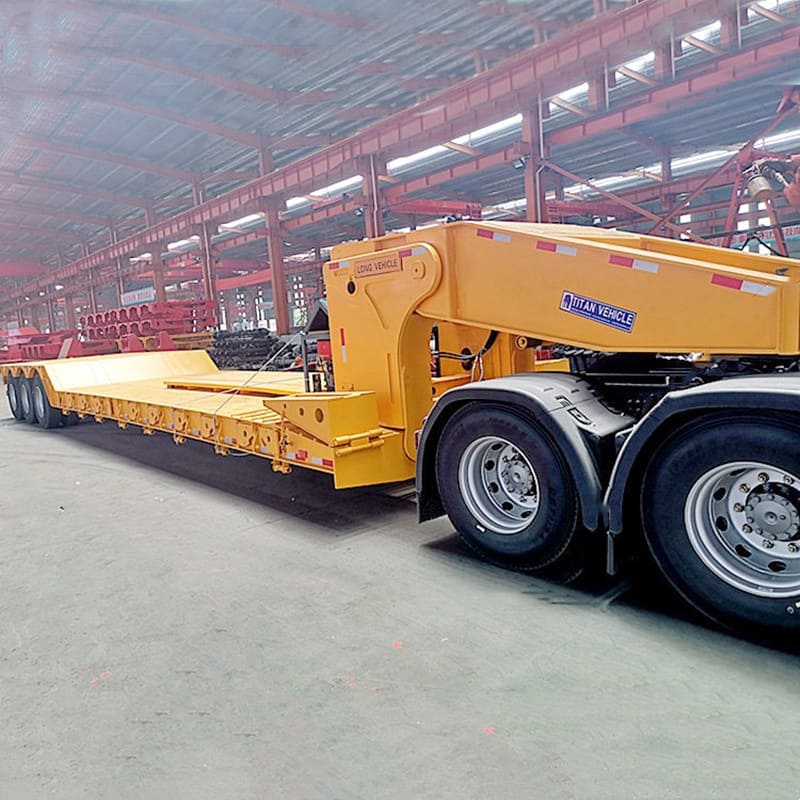

Removable Gooseneck Trailer | Tri Axle 80 Ton Lowboy Trailers for Sale

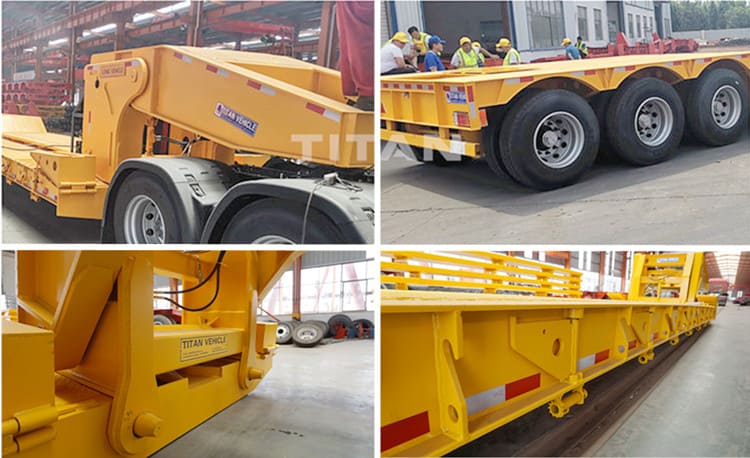

Removable Gooseneck Trailer | Tri Axle 80 Ton Lowboy Trailers for Sale

Removable Gooseneck Trailer | Tri Axle 80 Ton Lowboy Trailers for Sale

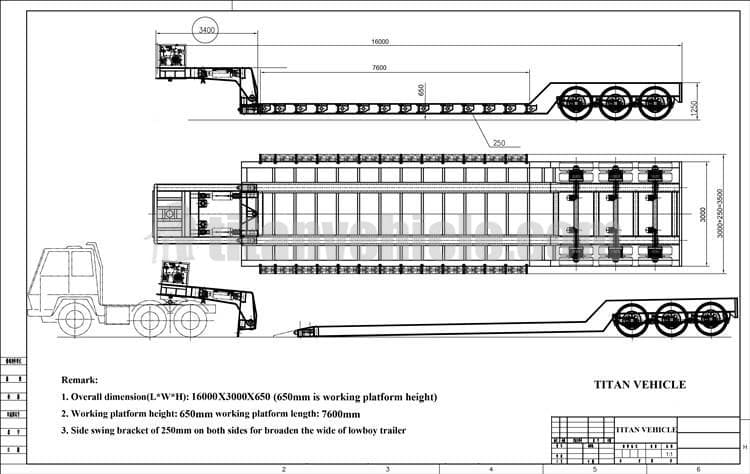

Specification of tri axle lowboy trailers:

Dimension: 15800mm x 3000mm x 2500mm

Loading capacity(T): 50-150T

Tri axle lowboy trailers for sale axle: 3 axle

Tire: 12 units, 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension or air suspension

Spring leaf: 120(W)mmx16(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Removable gooseneck trailer for sale tire weight: About 9.5-19T

Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.

Bottom Platform: 5mm thick, checkered plate

Hydraulic cylinder: 12KW diesel engine with hydraulic station

Ramp: spring or hydraulic type

Tri axle lowboy trailers for sale ABS: Optional

80 ton lowboy trailers for sale valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Removable gooseneck trailer for sale voltage: 24V

80 ton lowboy trailers for sale tool box: 1 set

Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust

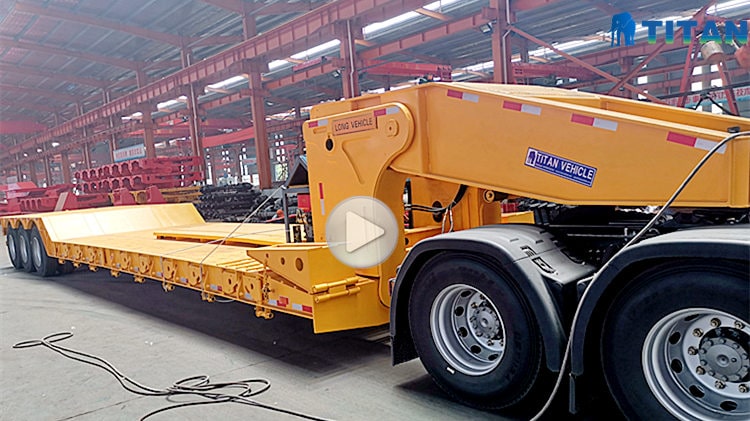

Through the video, you can know different types of removable gooseneck trailer for sale, 80 ton lowboy trailers for sale, tri axle lowboy trailers for sale, etc.

Please click "TITAN Removable Gooseneck Trailer" to get detailed video!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
