Removable Side Wall Container Trailer
Removable Side Wall Container Trailer

Removable Side Wall Container Trailer

10000 USD

Different Parameters, Different Price. Price Reference Only.



The removable side wall of the side wall container trailer is 600mm high. And the load capacity is 40 ton.

SKU: Removable Side Wall Container Trailer
GTIN: 06975766110277
MPN: TITAN9404021
Brand: TITAN

Product Description:

Removable side wall container trailer was popular by logistics companies as its multipurpose application.It use to load a wide range of products and materials, like sand, bags, poultry etc. Also the some bulk cargo, very widely used in the transportation industry.

The removable side wall container trailer can be use to load the containers after adopt the contianer locks for it.

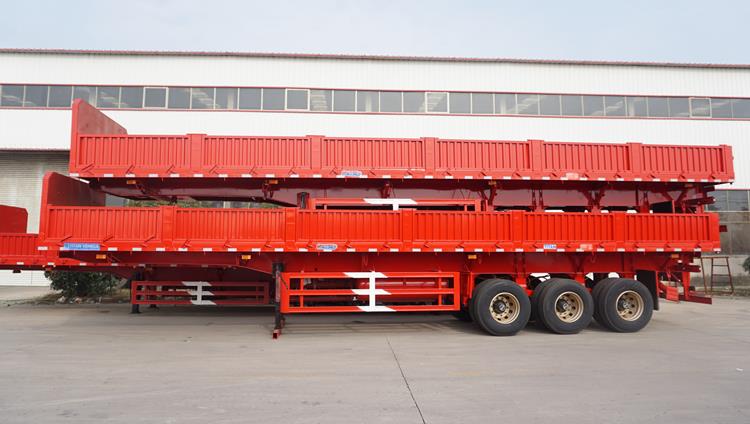

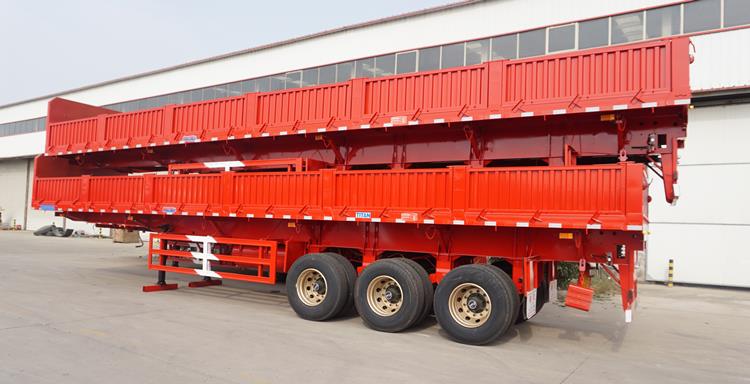

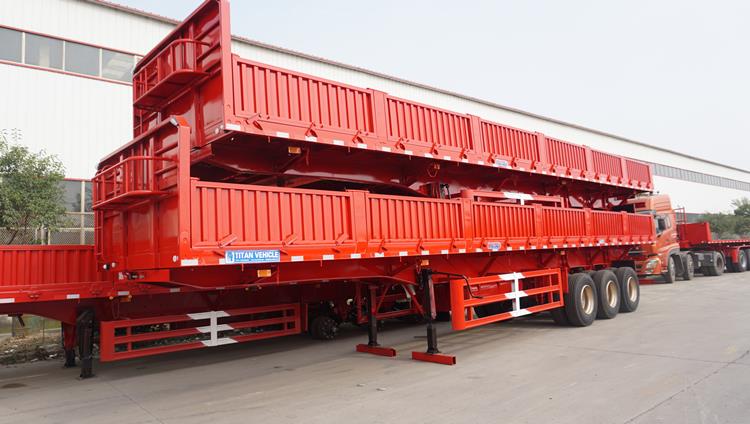

Removable Side Wall Container Trailer for Sale in Algeria - TITAN Vehicle

Removable Side Wall Container Trailer for Sale in Algeria - TITAN Vehicle

Removable Side Wall Container Trailer for Sale in Algeria - TITAN Vehicle

Removable Side Wall Container Trailer for Sale in Algeria - TITAN Vehicle

Removable Side Wall Container Trailer for Sale in Algeria - TITAN Vehicle



Specification:

Dimension(mm): 12500mm*2500mm*2350mm

Trailer Sides: 600mm sidewall

Loading capacity(ton): ≤40T

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ Huajing Brand

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical, Bogie, Airbag suspension(China brand or BPW brand)

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Bottom Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats



Advantage:

1. TITAN Vehicle adopts high strength steel material to manufacture the sidewall cargo trailer, it can make the trailer have a higher loading capacity and a longer service life.

2. To make sure the service life of the semi trailers, all the spare parts we adopt are World Famous brand.

3. Trailers floor is checker plate, this will keep the other bulk cargo more stable, like the bags, or long stuff.

4. Hight Quality side wall, make sure the stable and safety of the loads.



Through this video, you can learn about different types of sidewall semi-trailers, as well as the process, testing, packaging and customer feedback, etc.



Please click "TITAN Sidewall Semi Trailer" to get detailed video!



Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!

Review

Olivier - 2021-06-21T09:06:34+0800
Delivery was OK and the package was well organised and assembly was straight forward. The removable side wall container trailer is very good and substantial.
