U Shape Rock Dump Trailer

U Shape Rock Dump Trailer Product description:

U Shape Rock Dump Trailer adopts high strength steel to make it durable when loading the sand or small stones or rocks. And the U Shape Rock Dump Trailer for Sale loading capacity is 40t, 60t, 80t, 100T.

TITAN U Shape Rock Dump Trailer Manufacturer equipped with reliable hydraulic cylinder. We can customize the rock dump trailers according to your special need, like U shape dump, end dump, side tipper, and container tippers.

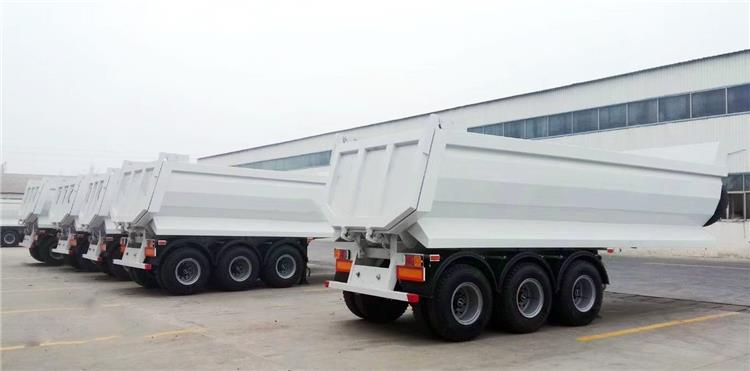

U Shape Rock Dump Trailer for Sale in Papua New Guinea

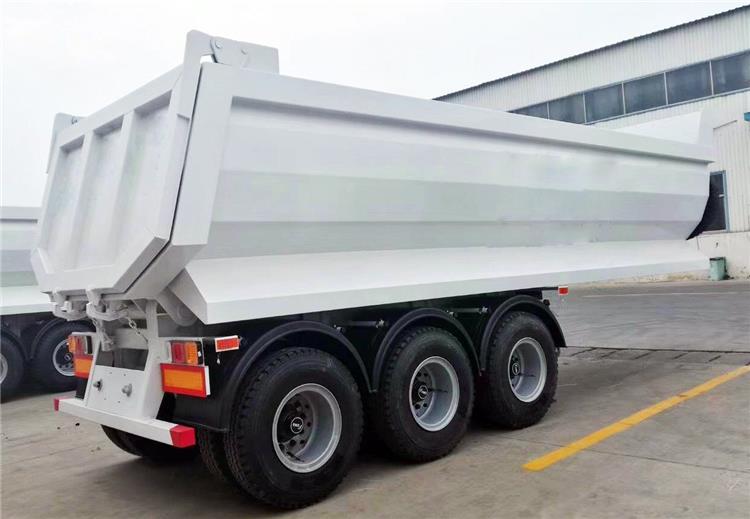

U Shape Rock Dump Trailer for Sale in Papua New Guinea

U Type rock dump Trailer Specifications:

Dimension: 8500mmx2500mm x3950mm ( inside dimension )

Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.

Bottom Platform: 4 thick checkered plate

Sidewall thickness: 4mm

Total volume(m³): 30m³

End plate: 8mm

Lifting System: Full set of HYVA lifting cylinder

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20 or 9.00-20

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set
