Products

Side Wall Open Semi Trailers
Side Wall Open Semi Trailers

Side Wall Open Semi Trailers

12000 USD

Different Parameters, Different Price. Price Reference Only.

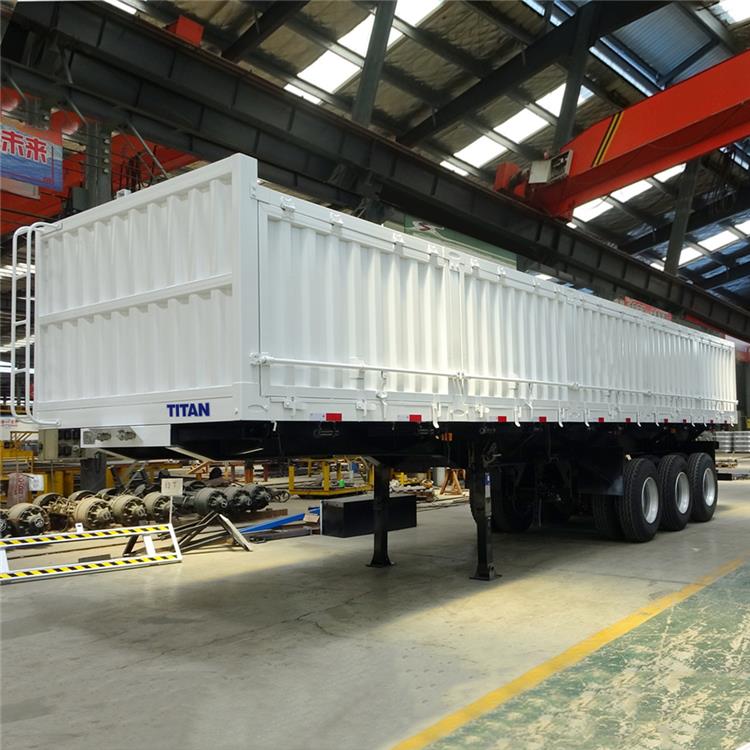

This side wall open semi trailer has 1200mm high sideboard. Hight quality side wall, make sure the stable and safety of the loads.

SKU: TITAN9407182
GTIN: 6975766116248
MPN: TITAN9407182
Brand: TITAN

Product Description:

TITAN side wall open semi trailer is your ideal partner for multipurpose solution catering to vast range of applications including Cement Bags, Agri bags, Tiles, Jumbo bags, steel coils, pet coke, etc.

Its higher payload carrying capacity, better mileage and availability of different product variants catering to varying customer's needs. The vehicle provides you with longer tyre life, high fuel efficiency and less maintenance cost which gives you higher revenue and lower operating cost, substantially increasing your overall profit.

With ability to carry heavy loads with utmost ease and OEM assured body warranty, TITAN Side wall open semi trailer is an ideal choice for your business.

Side Wall Open Semi Trailer for Sale in Mauritania - TITAN Vehicle

Side Wall Open Semi Trailer for Sale in Mauritania - TITAN Vehicle

Side Wall Open Semi Trailer for Sale in Mauritania - TITAN Vehicle



Specification:

Dimension(mm): 13000x2500x3300mm

Trailer Sides: 1200mm, or box type sides

Loading capacity(ton): ≤50T

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ Huajing Brand

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical, Bogie, Airbag suspension(China brand or BPW brand)

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Bottom Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
