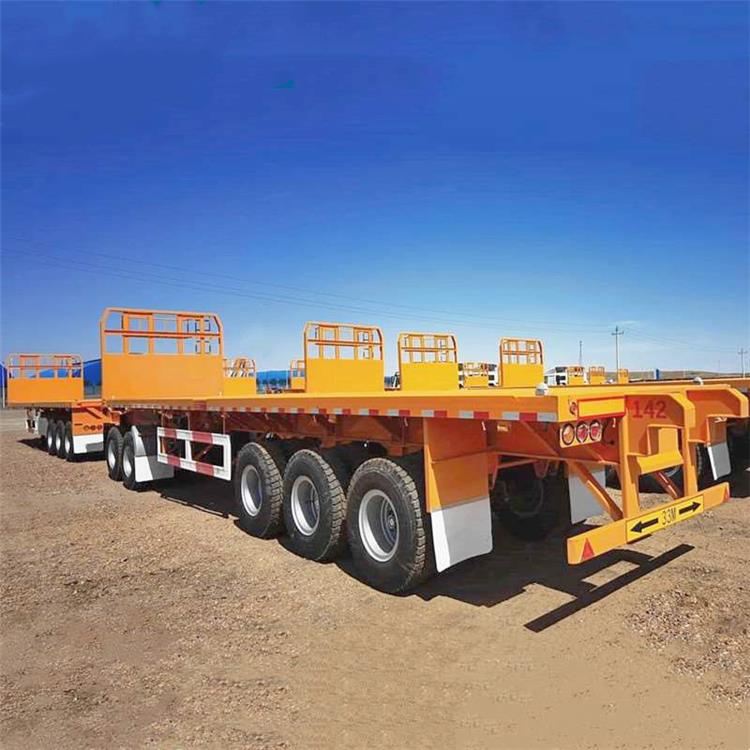

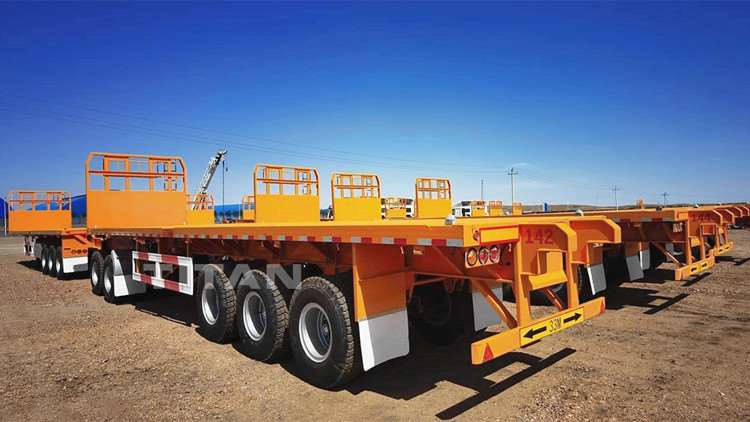

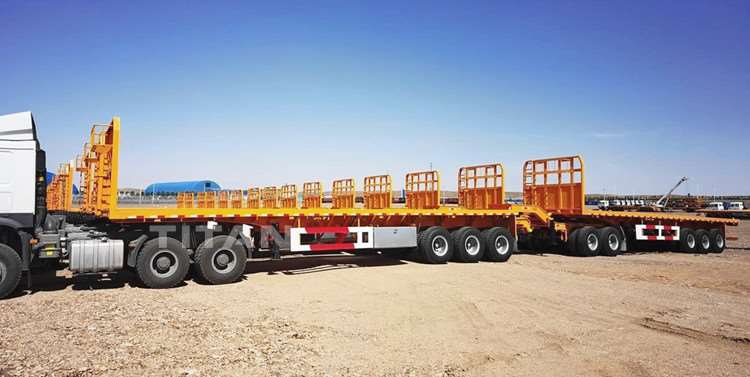

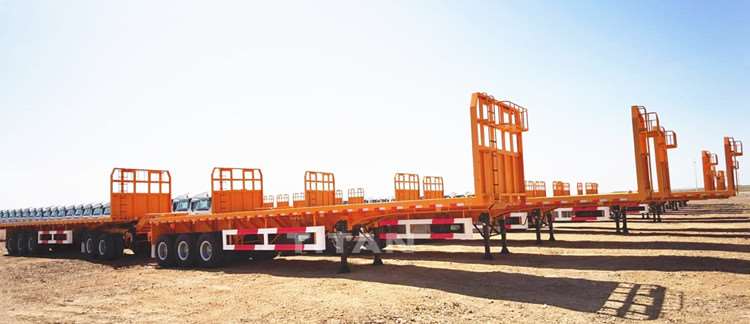

Superlink Flatbed Trailer

Product Description:

Superlink trailer for sale consists of two units 40ft flatbed semi trailer. Its total loading capacity could up to 80 tons.

For the superlink flatbed trailer is populaized because of its flexibility. Each of the trailers can operate independently and increase the utilization coefficient of the tractor truck.

Specifications:

The front trailer size: 13000mm*2500mm*1500mm

The rear trailer size: 12500mm*2500*1500mm

Loading capacity(ton): ≤80T

Axles: 3+3 axles, with 2 axle dolly

Tire: 12+12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type) *2

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Advantages:

1. TITAN Vehicle adopts high strength steel material to manufacture the interlink flatbed trailer, it can make the flatbed trailer have a higher loading capacity and a longer service life.

2. TITAN Vehicle uses automatic arc-submerging welding method to weld the main beam, so the main beam is more stronger and more durable.

3. To make sure the service life of the superlink semi trailers, all the spare parts we adopt are world famous brand.

4. Polyurethane paint, the vehicle is more beautiful, has a strong adhesion, long-term use of non-fading, effective protection of the body against rust, prevent acid and alkali corrosion, extend the life of the vehicle.

Welcome to leave your inquiry!

We will provide quotation and more details, drawings, pictures, videos for you!
