Trailer Flatbed 40Ft

Trailer Flatbed 40Ft for Sale

The main purpose of the trailer flatbed 40ft for sale is to transport standard international containers (the most common are 20 feet and 40 feet). Depending on the length of the container, TITAN's trailer flatbed 40ft for sale are available in several different lengths, such as 20 feet, 40 feet, 48 feet, and 53 feet. The  trailer flatbed 40ft has high transportation efficiency, low fuel consumption per kilometer, and good economic benefits.

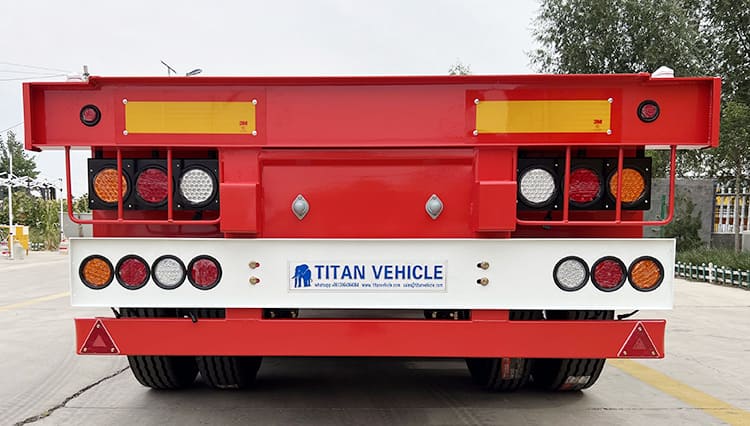

Trailer Flatbeds 40Ft for Sale Near Me in Ghana

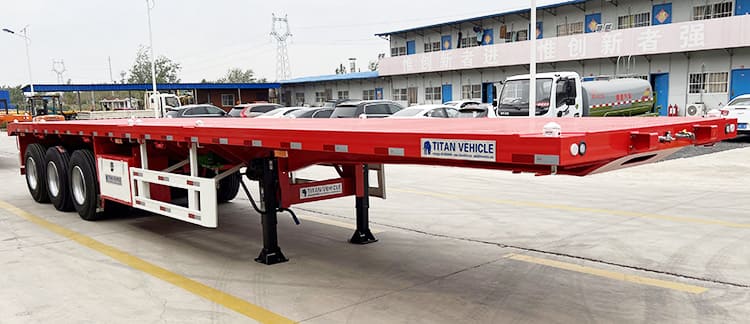

Trailer Flatbeds 40Ft for Sale Near Me in Ghana

Trailer Flatbeds 40Ft for Sale Near Me in Ghana

Trailer Flatbeds 40Ft for Sale Near Me in Ghana

Specification of Trailer Flatbeds 40Ft

Model: trailer flatbed 40ft

Dimension(mm): 12500x2500x1550mm

Loading capacity(ton): ≤60T

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

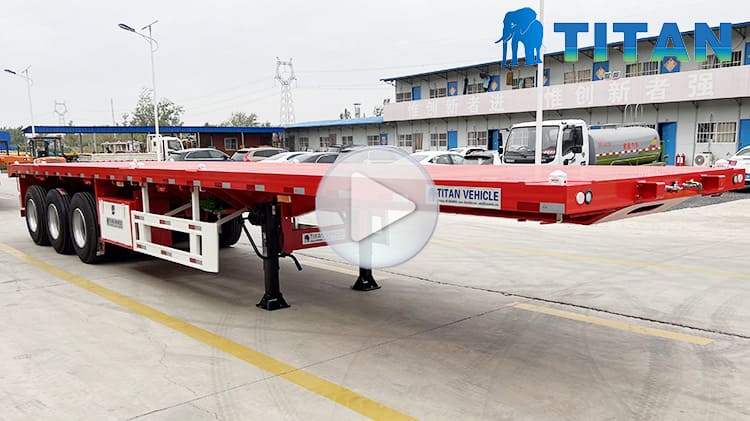

Video of trailer flatbed 40ft

Through this video, you can see different types of flatbed trailers, As well as the process, testing, packaging and customer feedback, etc.
