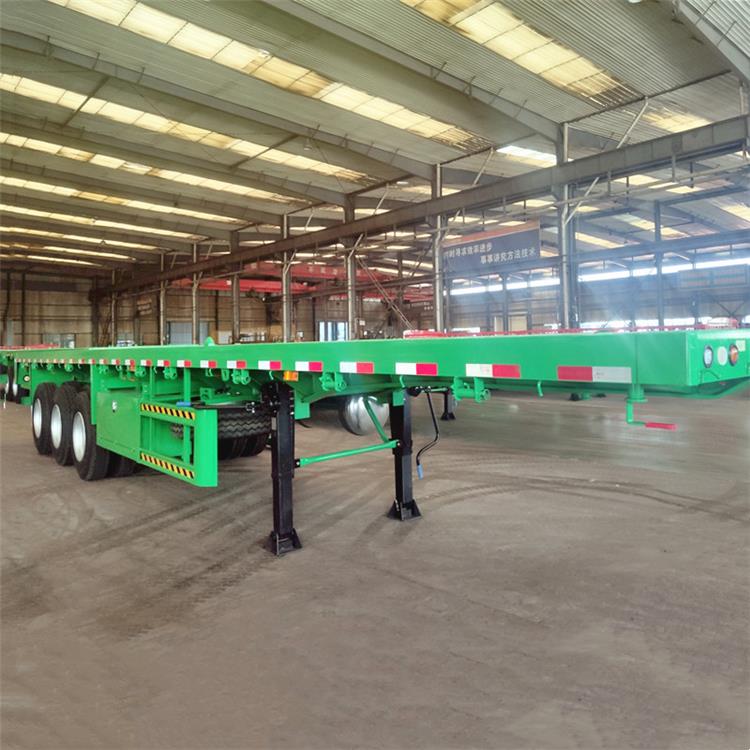

Tri Axle 40 Foot Semi Flatbed Trailer

Semi Flatbed Trailers for Sale Near Me:

The tri axle flatbed trailer for sale is a kind of trailer whose design is suitably made to carry bulk cargo and containers between shipping facilities and terminals.

40 foot flatbed trailer for sale is usually used to transport 20ft or 40ft containers.

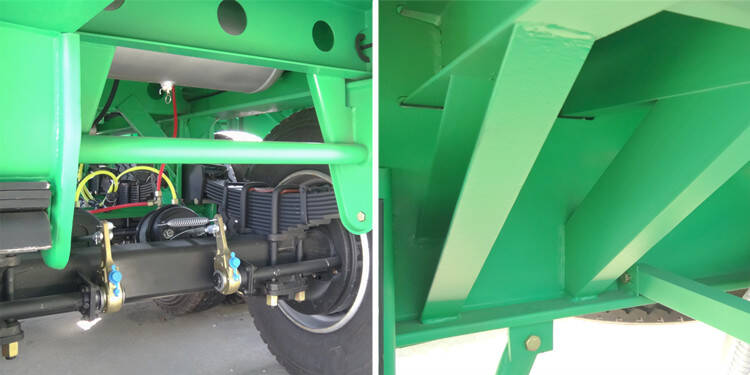

Tri Axle 40 Foot Semi Flatbed Trailer for Sale Near Me

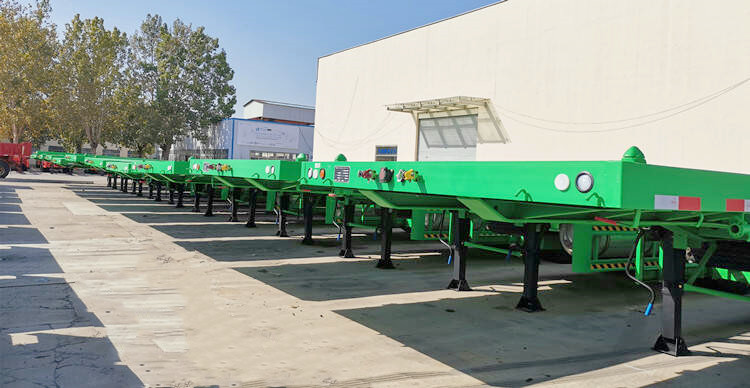

Tri Axle 40 Foot Semi Flatbed Trailer for Sale Near Me

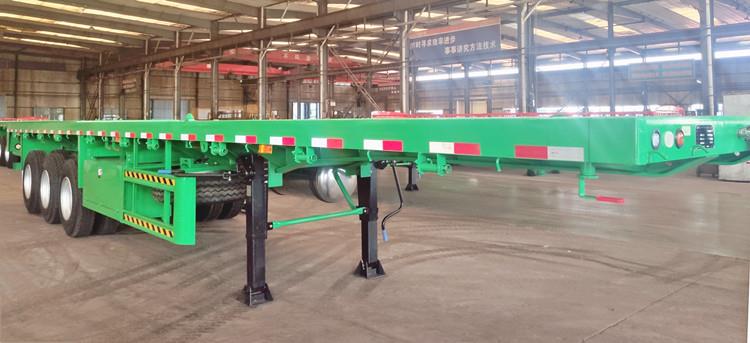

Tri Axle 40 Foot Semi Flatbed Trailer for Sale Near Me

40 foot flatbed trailer for sale Specifications:

Tare Weight: About 7.1T

Dimension(mm): 12450x2490x1575mm

Loading capacity(ton): ≤60T

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension(Germany or America type) or Air suspension(China brand or BPW brand)

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Advantages of 40 foot flatbed trailer for sale:

1. TITAN Vehicle adopts high strength steel material to manufacture the tri axle flatbed trailer for sale, it can make the 40 foot flatbed trailer for sale have a higher loading capacity and a longer service life.

2. TITAN Vehicle uses automatic arc-submerging welding method to weld the main beam, so the main beam is more stronger and more durable.

3. The cross beam and the side beam are enhanced, the down plate of the main beam and the bottom plate are all reinforced, it can ensure there is no curling during the using procedure.

4. The distance between two tilted supports is less than 50 centimeters, it can help the main beam have a better loading capacity.

5. To make sure the service life of the tri axle flatbed trailer for sale, all the spare parts we adopt are world famous brand.
