Different Parameters, Different Price. Price Reference Only.

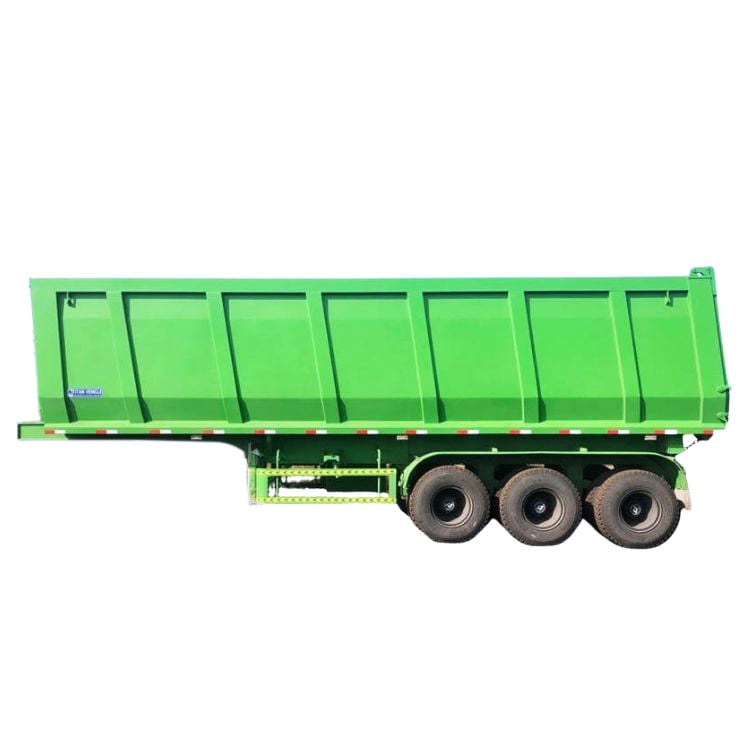

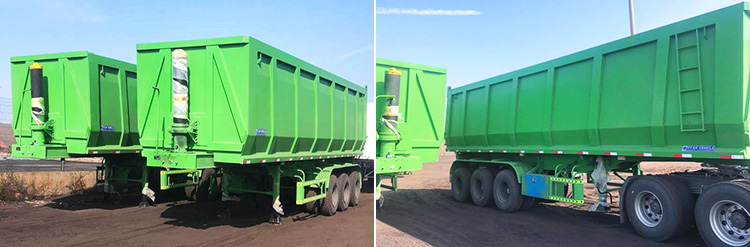

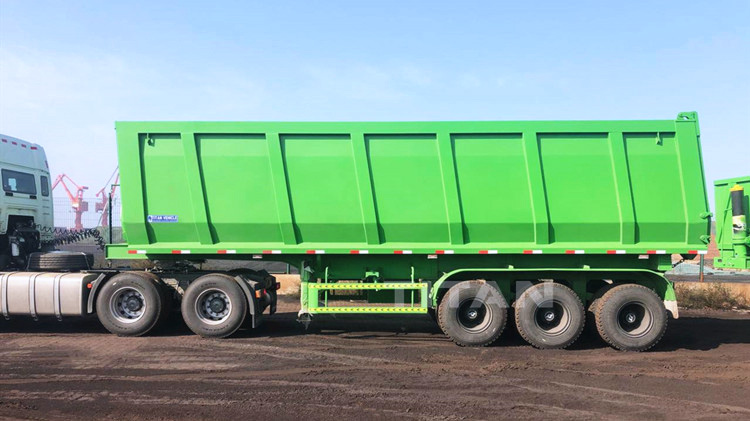

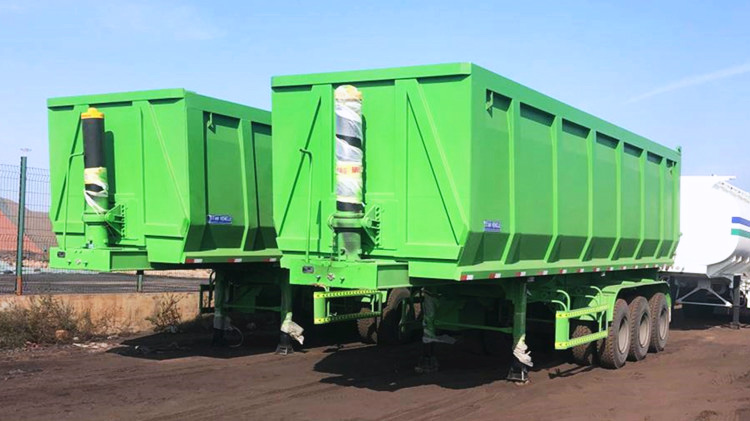

TITAN Vehicle also produces the 2 axles, 3 axles, 4 axles 40T Rear Dump Truck Trailers.The color of the trailer could be painted as customers' requests.
TITAN adopts duble-plate main beam for Tri Axle 40T Rear Dump Truck Trailer;the main beam is designed with double plates, which have stronger carrying capacity and not easy to be damaged.
The heavy-duty cylinder of the Tri Axle 40T Rear Dump Truck Trailer with a wider diameter, stronger lifting capacity and higher height, which makes the lifting more stable and does not easy to roll over.
Dimension: 11000mmx2500mm x4000mm
Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.
Bottom Platform: 4 thick checkered plate
Side wall thickness: 4mm
Total volume(m³): 40 ton
End plate: 8mm
Lifting System: Full set of HYVA lifting cylinder
Axle: 13T/16T, FUWA / BPW / TITAN Brand
Rim: 8.0-20 or 9.00-20
Tire: 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
ABS: Optional
Valve: WABCO valve
Light: LED light (especially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Through these videos, you can learn about different types of semi dump trailers, as well as the process, testing, packaging and customer feedback, etc.
