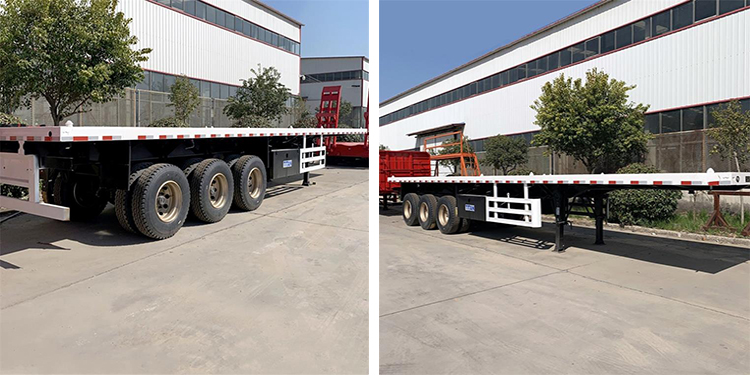

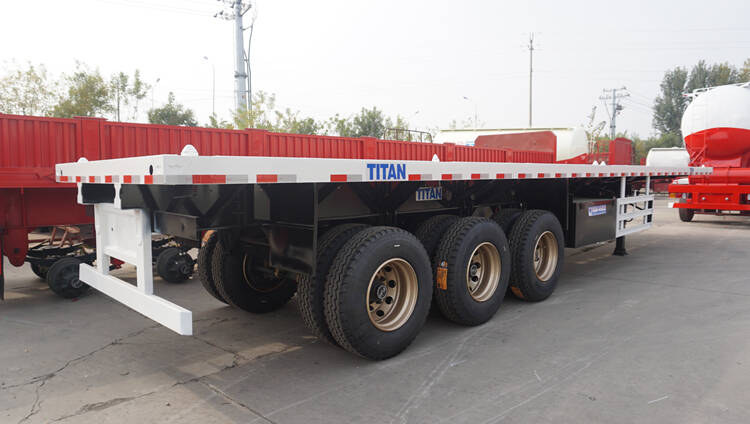

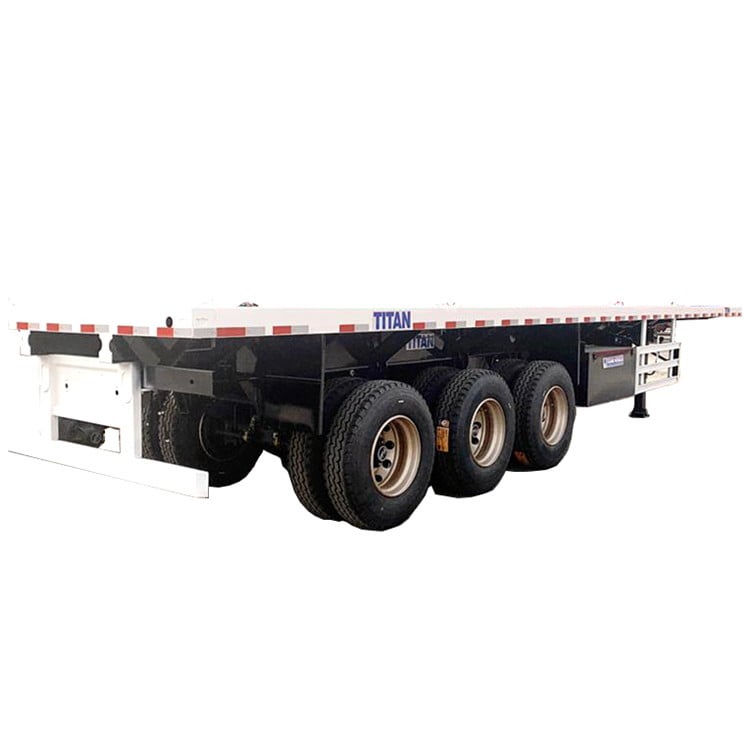

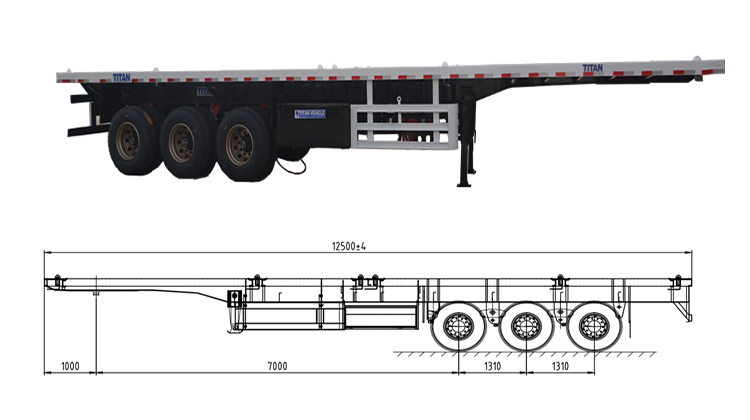

Tri axle semi flatbed trailer uses high quality of steel material, it has the advantages of strong compression resistance and not easy to deform. The dimension of the tri axle semi flatbed trailer is 12500mm*2500mm*1530mm. It can transport 60-80T goods or 20/40ft container.
TITAN Vehicle specializes in manufacturing various semi flatbed trailer, using high-strengh steel material which has the characteristics of light weight, deformation resistance, high safety, etc., and the bearing capacity is comprehensively improved. The Tri axle semi flatbed trailer's capacity is from 60 to 80 ton.
New Tri Axle Semi Flatbed Trailer prices for Sale near me in Senegal
Model: Tri axle flatbed semi trailer
Loading capacity(ton): ≤60T
Axles: 3 axles, 13T/16T ,FUWA/ BPW/ Huajing Brand
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension(Germany or America type) or Air suspension(China brand or BPW brand)
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Side Beam: 16mm or 18mm steel channel (material: Q235 steel)
Platform: 3mm-thick checkered plate
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
Light: LED light (specially intended for oversea market)
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
