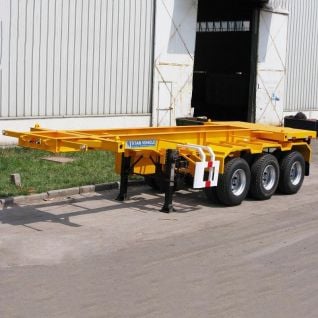

Tri Axle Skeleton Semi Trailer
Tri Axle Skeleton Semi Trailer

Tri Axle Skeleton Semi Trailer

16000 USD

Different Parameters, Different Price. Price Reference Only.



Tri Axle Skeleton Semi Trailer is mainly used in ships, ports, routes, roads, transit stations, bridges, tunnels, matching multimodal logistics system.

SKU: Tri Axle Skeleton Semi Trailer
GTIN: 6975766114015
MPN: TITAN9401025
Brand: TITAN

Product Description:

Tri Axle Skeleton Semi Trailer is mainly used in ships, ports, routes, roads, transit stations, bridges, tunnels, matching multimodal logistics system.

Specifically for a variety of container transport, customers can choose according to their own needs to change how many locks that may, all the accessories have been 20 years of experience in the use supplier of choice, long-term repeated use, with sufficient strength .

Tri Axle Skeleton Semi Trailer fast loading and unloading, and can be directly and easily from one vehicle to another vehicle facelift.

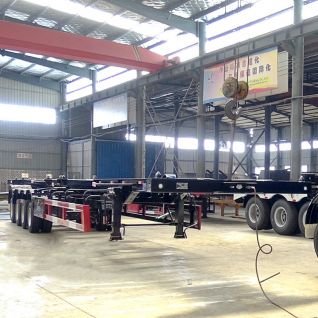

Tri Axle Skeleton Semi Trailer for Sale in Malaysia

Tri Axle Skeleton Semi Trailer for Sale in Malaysia

Tri Axle Skeleton Semi Trailer for Sale in Malaysia

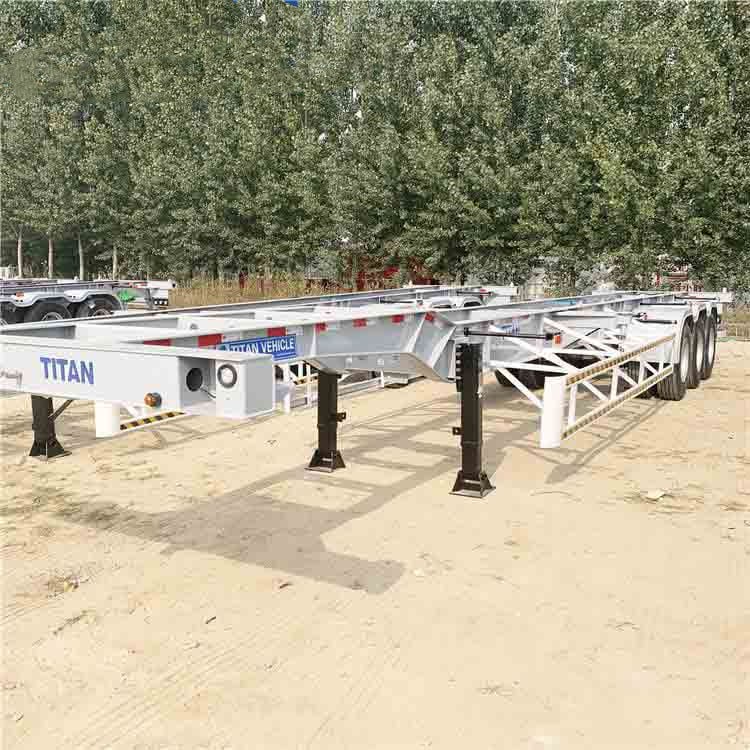

40ft Skeleton Semi Trailer for Sale

Tri Axle Skeleton Semi Trailer for Sale in Malaysia



Skeleton semi trailer Specifications:

Dimension(mm): 12400x2500x1500mm

Loading capacity(ton): ≤60T

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand

Tire: 13 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension or Air suspension

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Shipping Terms: Transported by the bulk carrier in an RORO or 40ft container



Through these videos, you can learn about different types of container chassis trailers, as well as the process, testing, packaging and customer feedback, etc.







Please click " TITAN Container Skeleton Trailer" to get detailed video!



Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
